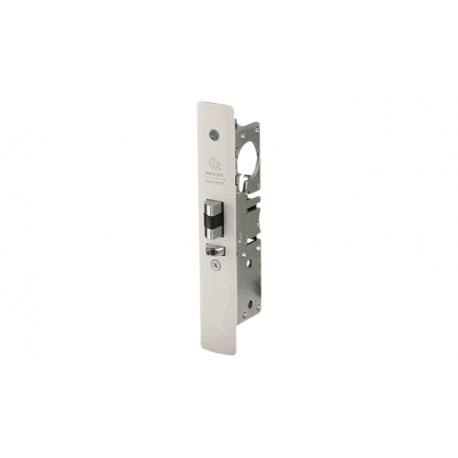

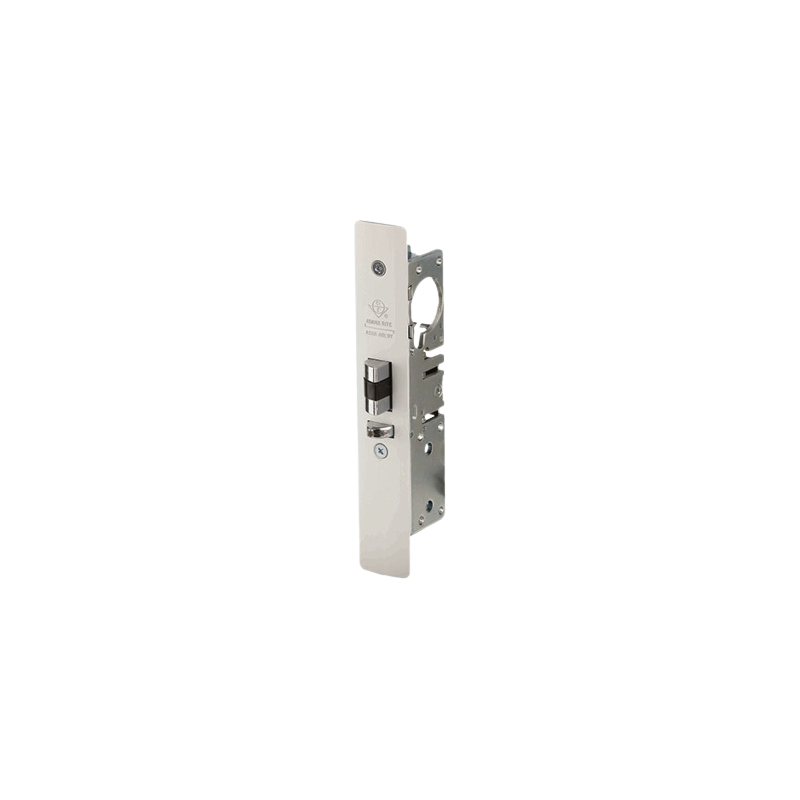

Details: Adams Rite 4531-26-221-628 4530 Series Standard Duty Deadlatch

4530 Standard Duty Deadlatches provide flexible traffic control during and after business hours. Designed to retrofit into the prep of older MS1850 Deadlocks and discontinued 4250 Deadlatches.

Features

Cylinder Backset: 7/8" [22.2 mm], 31/32" [24.6 mm], or 1-1/8" [28.6 mm] only.
Case: Steel with corrosion-resistant plating. Measures 1" × 5-13/16" × depth [25.4 mmx 147.6 mm × depth]. Depth varies by backset.
Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt: All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" × 1" × 1/2"[12.7 mm × 25.4 mm × 12.7 mm] throw.
Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent loading or case-knife entry.
Faceplate: Measures 1-1/4" × 7-13/32"[31.8 mm × 188.1 mm].
Strike: Standard strike furnished is 4901-01 for flat jamb.
Standard Package: Individually boxed with strike plate and mounting screws. Cylinder, paddle,handle available separately.

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Adams Rite Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
4533-16-22-313	7/8", RH or LHR, Mortised (4902) 2-5/8", Dark Bronze Anodized
4533-262-313	31/32", RH or LHR, Dark Bronze Anodized
4530-161-313	Flat, 7/8", RH or LHR, Flat/Standard Jamb, Dark Bronze Anodized
4530-16-121-628	Flat, 7/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Center Hung 4-1/2" Jamb, Clear Anodized
4530-16-11-313	Flat, 7/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Standard Jamb, Dark Bronze Anodized
4532-16-12-313	Bevel, 7/8", RH or LHR, Mortised (4901) 4-5/8", Dark Bronze Anodized
4531-35-22-628	Radius, 1-1/8", LH or RHR, Mortised (4902) 2-5/8", Clear Anodized
4530-262-628	Flat, 31/32", RH or LHR, Clear Anodized
4533-16-22-335	7/8", RH or LHR, Mortised (4902) 2-5/8", Black Anodized
4533-262-335	31/32", RH or LHR, Black Anodized
4530-25-21-335	Flat, 31/32", LH or RHR, Mortised (4902) 2-5/8", Flat/Standard Jamb, Black Anodized
4532-36-22-335	Bevel, 1-1/8", RH or LHR, Mortised (4902) 2-5/8", Black Anodized
4530-26-12-313	Flat, 31/32", RH or LHR, Mortised (4901) 4-5/8", Dark Bronze Anodized
4531-16-11-335	Radius, 7/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Standard Jamb, Black Anodized
4533-16-22-628	7/8", RH or LHR, Mortised (4902) 2-5/8", Clear Anodized
