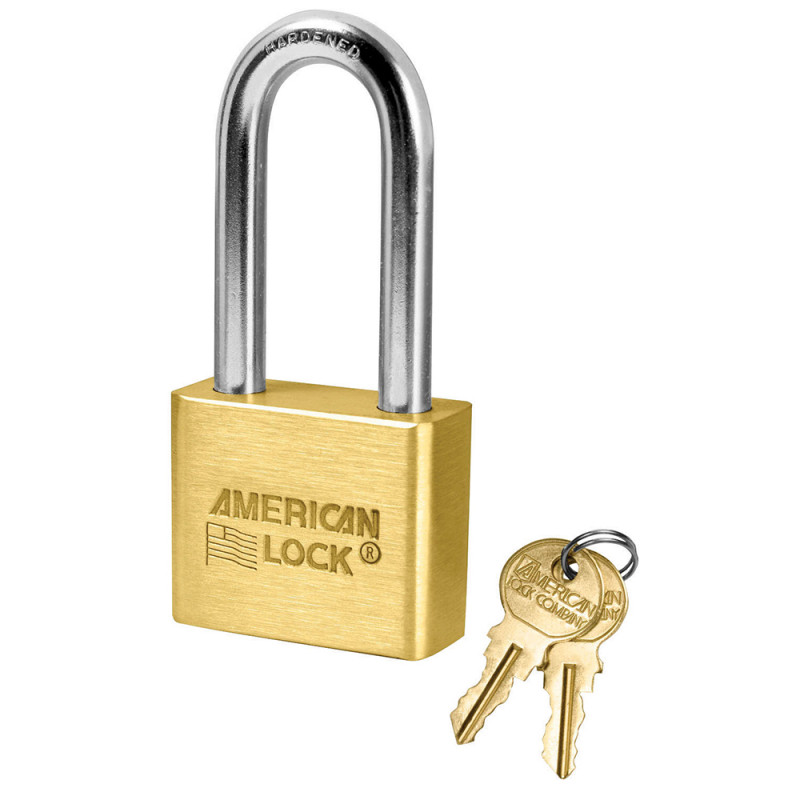

Details: American Lock AL5 Solid Brass Rekeyable Padlocks - Blade Tumbler Cylinder

The American Lock Solid Brass Blade Tumbler Cylinder Padlock features a 1-3/4in (44mm) wide solid brass body and a 2in (51mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying and a debris resistant cylinder performs extremely well in external applications.

Features

1-3/4in (44mm) wide solid brass body for maximum corrosion resistance
Rekeyable, ABTC1 disc tumbler (blade) cylinder performs extremely well in external applications
2in (51mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle

Specifications

Description: Keyed Different, Commercial Boxed Packaging
Body Width: 1-3/4 in (44 mm)
Shackle Length: 2 in (51 mm)
Shackle Width: 3/4 in (19 mm)
Shackle Diameter: 5/16 in (8 mm)
Color: Gold

Applications

Marine & Offshore Security
Marine Environments
Railroad Applications

Downloads

AL50 Series Laser Engraving

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU	Attributes
AL52 KD3KEY LZ2	3" (75mm), Keyed Different, Non-Key Retaining, 3 keys per lock, Laser engraved in 2 areas
AL51 KDNOKEY LZ5	2" (50mm), Keyed Different, Non-Key Retaining, 0 keys per lock, Laser engraved in 5 areas
AL51 KA NR3KEY	2" (50mm), Keyed Alike, Non-Removable Key, 3 keys per lock, Not Included
AL51 KA NRNOKEY LZ3	2" (50mm), Keyed Alike, Non-Removable Key, 0 keys per lock, Laser engraved in 3 areas
AL51 KA CN LZ4	2" (50mm), Keyed Alike, Non-Key Retaining, 2 keys per lock, Laser engraved in 4 areas
AL52 NR1KEY LZ3	3" (75mm), Non-Removable Key, 1 key per lock, Laser engraved in 3 areas
AL51 CNNOKEY LZ3	2" (50mm), Non-Key Retaining, 0 keys per lock, Laser engraved in 3 areas
AL51 CN NR3KEY LZ5	2" (50mm), Non-Removable Key, 3 keys per lock, Laser engraved in 5 areas
AL52 KD CN NR3KEY	3" (75mm), Keyed Different, Non-Removable Key, 3 keys per lock, Not Included
AL52 KA LZ2	3" (75mm), Keyed Alike, Non-Key Retaining, 2 keys per lock, Laser engraved in 2 areas
AL52 KA CN3KEY LZ1	3" (75mm), Keyed Alike, Non-Key Retaining, 3 keys per lock, Laser engraved in 1 area
AL52 CN1KEY LZ2	3" (75mm), Non-Key Retaining, 1 key per lock, Laser engraved in 2 areas
AL51 KA CN4KEY LZ3	2" (50mm), Keyed Alike, Non-Key Retaining, 4 keys per lock, Laser engraved in 3 areas
AL51 KA CN NRNOKEY LZ2	2" (50mm), Keyed Alike, Non-Removable Key, 0 keys per lock, Laser engraved in 2 areas
