ASI 3800 Series 1-1/2" Dia Snap Flange Grab Bars

$51.00

Details: ASI 3800 Series 1-1/2" Dia Snap Flange Grab Bars

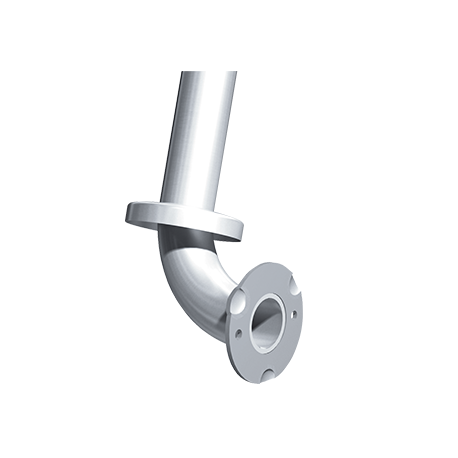

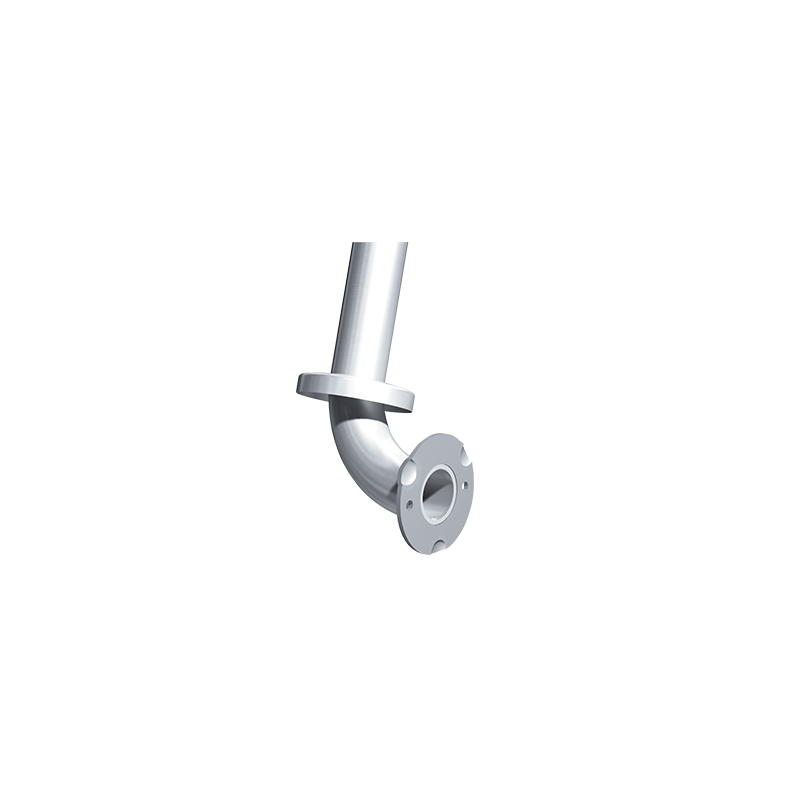

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8" (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16" (81 mm) diameter.

SNAP FLANGE — 3800 SERIES — TUBING 1-1/2" DIAMETER

Specifications

Dimensions:
1-1/2" (38 mm) O.D.

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKU Attributes
10-3801-12 Smooth - Straight Grab Bar, 12"
10-3801-18 3701-18 Smooth - Straight Grab Bar, 18"
10-3801-24 Smooth - Straight Grab Bar, 24"
10-3801-30 Smooth - Straight Grab Bar, 30"
10-3801-36 Smooth - Straight Grab Bar, 36"
10-3801-42 Smooth - Straight Grab Bar, 42"
10-3801-48 Smooth - Straight Grab Bar, 48"
10-3802-48 Smooth - Straight Grab Bar w/ Intermediate Support, 48"
10-3802-54 Smooth - Straight Grab Bar w/ Intermediate Support, 54"
10-3804-L Smooth - 90° Angle, 16" x 32" - Left Hand
10-3804-R Smooth - 90° Angle, 16" x 32" - Right Hand
Oct-15 Smooth - Wall to Floor: 30" x 33"
10-3815-25 Smooth ?  Wall to Floor: 30” x 33” w/ Toilet Tissue Holder
10-3817-L Smooth ? 48" x 24” x 32” ? Left Hand
10-3817-R Smooth ? 48" x 24” x 32” ? Right Hand
