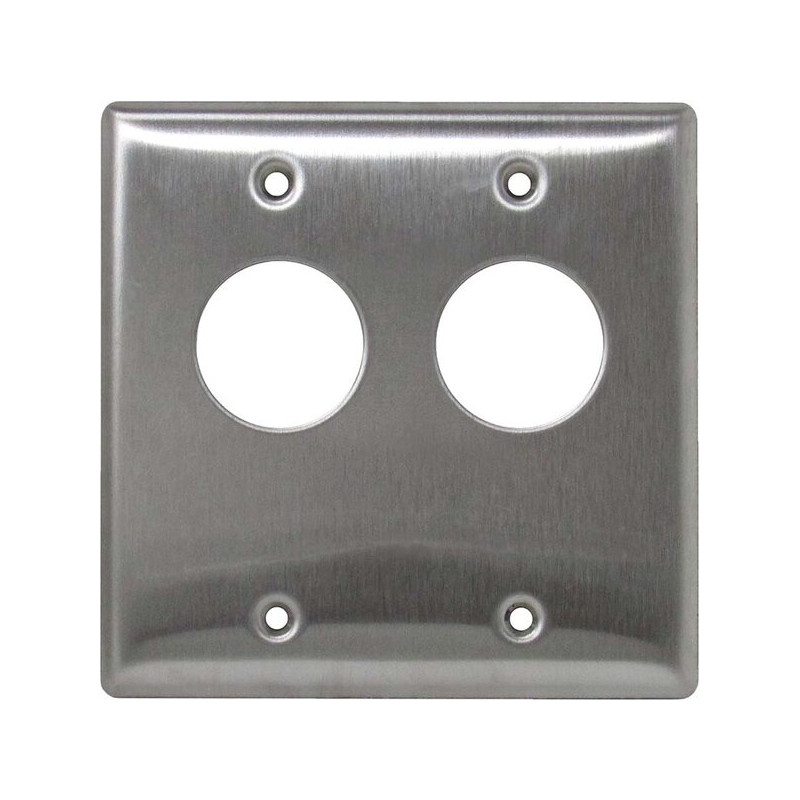

> >>>>Camden CM3500 Series Double Gang Dual Cylinder Key Switch - Stainless Steel Faceplate
Reduced price! Camden CM-3200 / CM3500 Series Double Gang Dual Cylinder Key Switch - Stainless Steel Faceplate

Camden Door Controls

Camden CM3500 Series Double Gang Dual Cylinder Key Switch - Stainless Steel Faceplate

CM-

$210.00

Details: Camden CM3500 Series Double Gang Dual Cylinder Key Switch - Stainless Steel Faceplate

Camden CM-3200 / CM3500 Series Double Gang Dual Cylinder Key Switch - Stainless Steel Faceplate

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a preassembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1 1/4" mortise cylinder (sold separately) and cam.

Features:

  • Complete range of 1 and 2 switch SPST, SPDT and DPDT models, momentary and maintained
  • Left and/or right operation
  • Accepts standard mortise cylinders, 1" - 1 1/4
  • Heavy duty double gang stainless steel faceplate
  • Locators prevent cylinders from spinning
  • Tamper proof screws and driver provided
  • Indoor and outdoor flush applications
  • Up to 4 switches can be installed
  • Heat shrink protective sleeve over contacts
  • Color coded 18 AWG soldered leads
  • 3 year warranty

Specifications:

Voltage
12/24V AC/DC
Contact Rating
6A @ 30VDC
Switch Life
All: 100,000 cycles
Temp Range
32F - 85F (0C to +85C)
Std. Finish
US32 / C32D
Dimensions
3.00"L × 5.00"W × 2.00"H
Weight
0.65lbs

Available Model Numbers and Combinations

Model/SKU Attributes
CM-3530-7024 Red, 24V, Single LED, (1) SPDT N.O. & N.C. Maintained
CM-3582-7624 Bi-Color, 24V, Single LED, (4) DPDT Momentary
CM-3530-7112 Green, 12V, Single LED, (1) SPDT N.O. & N.C. Maintained
CM-3582-70122 Red, 12V, Double LED, (4) DPDT Momentary
CM-3530-7124 Green, 24V, Single LED, (1) SPDT N.O. & N.C. Maintained
CM-3582-70242 Red, 24V, Double LED, (4) DPDT Momentary
CM-3530-7212 12V, Single LED, Red & Green, (1) SPDT N.O. & N.C. Maintained
CM-3582-71122 Green, 12V, Double LED, (4) DPDT Momentary
CM-3530-7224 24V, Single LED, Red & Green, (1) SPDT N.O. & N.C. Maintained
CM-3582-71242 Green, 24V, Double LED, (4) DPDT Momentary
CM-3530-7624 Bi-Color, 24V, Single LED, (1) SPDT N.O. & N.C. Maintained
CM-3582-72242 24V, Double LED, Red & Green, (4) DPDT Momentary
CM-3582-74122 Amber, 12V, Double LED, (4) DPDT Momentary
CM-3530-70122 Red, 12V, Double LED, (1) SPDT N.O. & N.C. Maintained
CM-3530-70242 Red, 24V, Double LED, (1) SPDT N.O. & N.C. Maintained

View All Model Numbers and Options
