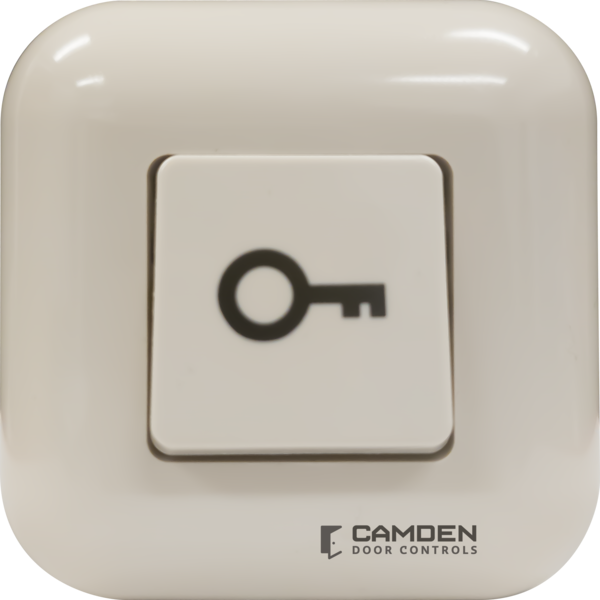

Camden CM-850 Rocker Switch, Momentary or Maintained, Beige Plastic Case

CM-850

$45.00

Details: Camden CM-850 Rocker Switch, Momentary or Maintained, Beige Plastic Case

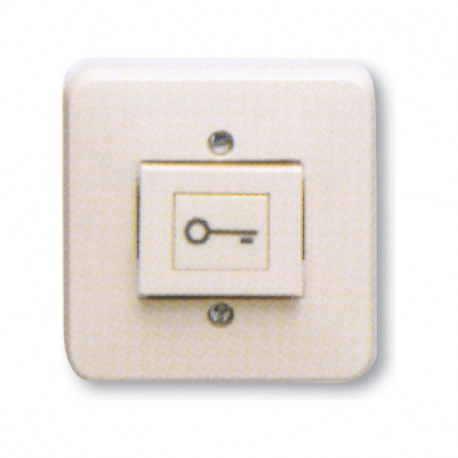

Camden CM-800 Series Rocker Switch

CM-800 Series remote door release switches are surface mount switches available in either weather resistant aluminum boxes or low profile plastic cases. Ideal for mounting under desks, counters or on a wall. The rocker switches are either SPST maintained or SPDT momentary,

Features:

  • Economical control of door lock or signal appliance
  • Easily mounts under desks or counters
  • SPST maintained or SPDT momentary versions
  • CM-830/840/50 models include easily mounted plastic enclosures
  • CM-810/820 models include NEMA rated enclosure
  • 3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications:

Voltage
12-24V DC
Switch Type
Momentary / Maintained
Current Rating
CM-810/820/830/840: 20 Amps
CM-850
10 Amps
Switch Life
100,000 cycles
Dimensions
CM-810/820:
2 1/2" × 2 1/4" × 1 3/8" (63mm × 57mm × 35mm)
CM-830/840:
2 7/8" × 1 1/2" × 3/4" (73mm × 38mm × 19mm)
CM-850:
2 3/8" × 2 3/8" × 1/2" (60mm × 60mm × 13mm)

Camden Special Purpose Product Comparison Chart

DESCRIPTION CAMDEN RCI SECURITRON SCHLAGE SDC DYNALOCK ROFU ALARM CONTROLS
Blue Pull Station CM-701
CM-702		 904 N/A N/A 492 N/A N/A N/A
Remote Release Switch SPDT Momentary CM-830
CM-850		 909 PB3ER 660 15-2 6336 1010 TS-18
Request to Exit Sensor CM-RQE70 915 XMS SCAN11 MD-31D N/A DS-150i SREX-100
Power Transfer Cable – 12"/18" CM-PTS14 9507-12S TSB 788/12 PT-2V 9300 10318 DL-1
Heavy Duty Power Transfer Cable – 12" CM-PT14 9508 N/A N/A PT-3V N/A N/A DL-2
Concealed Heavy Duty Power Transfer Cable CM-PT516M 9512 EPT N/A PT-5 N/A N/A N/A
Power Supply 1 Amp. Output, UL Listed CX-PS1OUL 10-175UL BPS-24-1 PS902 602RF 5025 9175 N/A
Power Supply 3 Amp. Output, UL Listed CX-PS3OUL 10-5-24VDC BPS-12-3 PS904 634RF 5500/FAC N/A N/A
Time Delay 1-30sec 12/24V AC/DC 2AMP. SPDT CX-1000/74 N/A TM-9 N/A 10TD 7080 N/A MT-1
Time Delay 1sec-4hrs 12/24V DC 5AMP. SPDT CX-1000/77 N/A TM-2 N/A N/A N/A N/A UT-1
Timer 7 Day 8 Event 12V AC/DC or 24V AC/DC CX-247 N/A DT-7 N/A 14-2 7086 N/A T-7P

Available Model Numbers and Combinations

Model/SKU Attributes
CM-810
CM-820
CM-830
CM-840
CM-850
