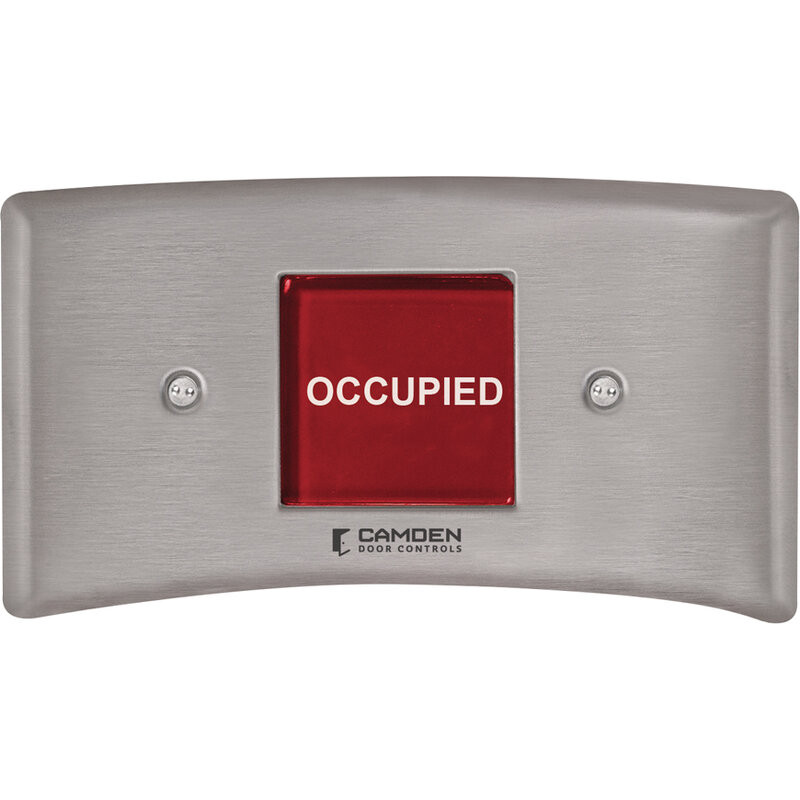

Details: Camden Door Control CM-AF503 Single Gang LED Illuminated Annunciator, Curved Profile

CM-AF500 Series LED illuminated annunciators are designed to provide critical messages to building occupants.

When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. Weatherproof and vandal resistant.

Features

• Custom messages (text, graphics and colors) available upon request
• 'Super bright' LEDs for high visability, even in daylight
• Text/graphics are not legible when not illuminated
• Vandal and weather resistant construction
• Heavy guage stainless steel face plate
• Low current draw
• CM-AF503 (6) message insert labels included, English, French and Bilingual

Specifications

Mounting

Standard single gang electrical box

Voltage

12/30V AC/DC

Construction

18 gauge stainless steel faceplate

Temp Range

32°F - 176°F (0°C - 80°C)

Dimensions

3"H × 5-9/10"W × 1/20"D (76mm × 127mm × 1mm)

Downloads

• CM-AF500_Spec Sheet_R9
• CM-AF500_Manual_R2

Camden Door Controls Warranty
