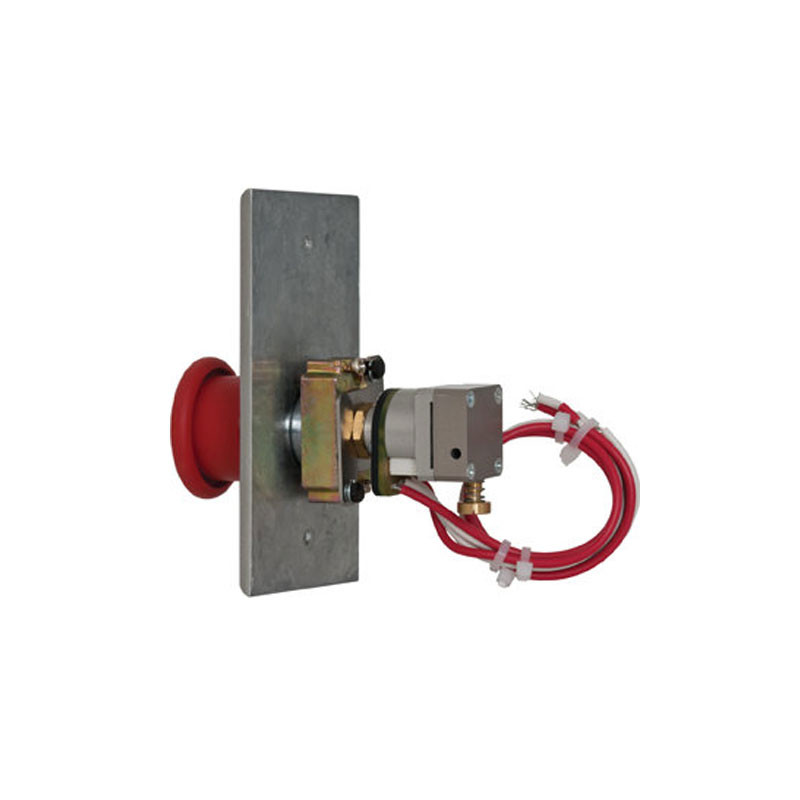

Details: Camden Door Control CX-1085M Pneumatic Time Delay

Built tough for any indoor or outdoor application, CX-1085M pneumatic time delay switches provide mechanical control with easy 'thumb screw' time adjustments from 1 to 60 seconds. Pneumatic time delays are available for use with most Camden request to exit push buttons.

As part of a push button or sold separately, these switches are ideal for use where fire/building codes mandate a non-electrical (mechanical) means of breaking power to the locking device.

Features

1 to 60 second timer
DPST contacts rated 1 amp , 125V DC
May be ordered separately, or factory installed on select exit button models
To view Exit Buttons with pneumatic timers, go to Express(tm) CM-4000, 5000, 7000 and 8000 series product pages

Specifications

Operating Force: 8 oz Max
Contact Rating: 5Amp , 30V DC
Time Delay: 1 - 60 Seconds +/-15%
Temp Range: 15F to 120F (-9C to 49C)
Endurance: 1,000,000 Operations
Dimensions: CX-1085M: 1" x 1 3/8" x 2" (25mm x 35mm x 51mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
