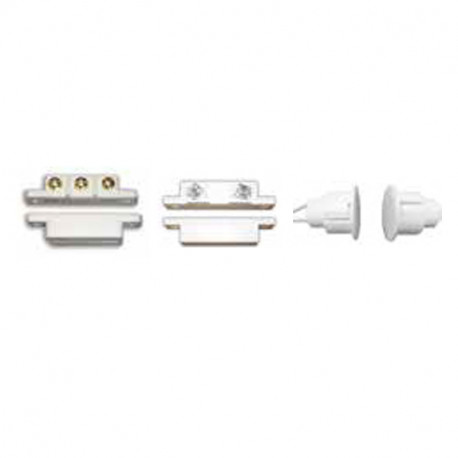

Details: Camden Door Control CX-MD Door Contact Switches, Magnetic Contact

Surface and concealed mount door contact switches are used for monitoring door status and are used with CX-33, CX-EMF-2, and other controllers.

Features

• Complete system solution includes door control relay, door activation push plate switches, annunciation, door contact and electric strike.
• ADA and OBC/NBC Building Code Compliant

Specifications

Contact Ratings

0.5A , 30 VDC

Loop

Closed

Contacts

(CX-MDA, CX-MDH)- Form A, Normally Open, (CX-MDC)-Form C

Connection

(CX-MDC,CX-MDA)-Screw Terminals, (CX-MDH)- 12" (305mm) 2 AWG Leads

Gap

(CX-MDC)-1" (25mm), (CX-MDA)-15/16" (23mm), (CX-MDH)-1-1/16" (27mm)

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• Installation Manual(1)(CX-MDH)
• Installation Manual((2)(CX-MDA_MDC)
