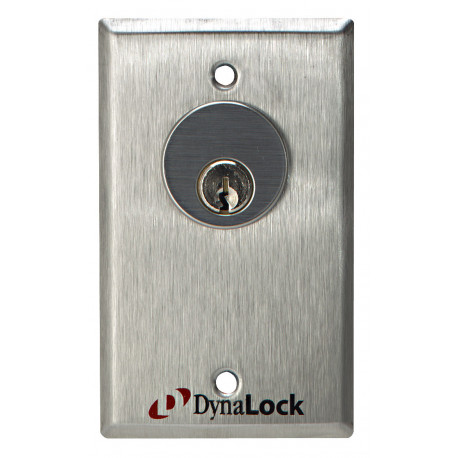

705 AUD DBL KEY US26 WPC Keyswitch, Finish-Satin Stainless Steel
705 AUD DBL KEY US26 WPC
Keyswitches may be used to control electric locks, shunt or activate security panels, consoles or any similar requirements. The assembly is supplied with face plate, bracketry, cylinder locknut and one or two switches depending on model ordered. The user typically supplies the mortise cylinder and cam when master keying a system. Switch contacts rated 6 Amps at the rate 125VAC and are available momentary or maintained, SPDT or DPDT. Switch assembly requires 1-1/2" depth clearance and is shipped on single, double or narrow gang plates. Standard Finish: US32D Cylinder Requirements: 1-1/8" or 1-1/4" Mortise Cylinder with "bat" type cam
Model/SKU | Attributes |
---|---|
7023 ATS LED NR US13 | Maintained, (2) DPDT, Included, Not Included, Not Included, Not Included, Not Included, Included, Included, Not Included, Not Included |
7023 ATS KEY LED NR PBA US19 | Maintained, (2) DPDT, Included, Not Included, Not Included, Not Included, Included, Included, Included, Not Included |
7023 ATS DBL KEY US10 | Maintained, (2) DPDT, Included, Not Included, Not Included, Included, Included, Not Included, Not Included, Not Included, Not Included |
7023 ATS CYL US10B WPC | Maintained, (2) DPDT, Included, Not Included, Included, Not Included, Not Included, Not Included, Not Included, Not Included, |
7023 ATS CYL KEY PBA US4 | Maintained, (2) DPDT, Included, Not Included, Included, Not Included, Included, Not Included, Not Included, Not Included |
7023 ATS CYL DBL PBA US13 | Maintained, (2) DPDT, Included, Not Included, Included, Included, Not Included, Not Included, Not Included, Not Included |
7023 ATS CYL DBL KEY NR US19 | Maintained, (2) DPDT, Included, Not Included, Included, Included, Included, Not Included, Included, Not Included, Not Included |
7023 ATS AUD NR PBA US32D | Maintained, (2) DPDT, Included, Included, Not Included, Not Included, Not Included, Not Included, Included, Not Included |
7023 ATS AUD KEY NR PBA US10 WPC | Maintained, (2) DPDT, Included, Included, Not Included, Not Included, Included, Not Included, Included, |
7023 ATS AUD DBL NR PBA US10B | Maintained, (2) DPDT, Included, Included, Not Included, Included, Not Included, Not Included, Included, Not Included |
7023 ATS AUD DBL KEY NR PBA US10 WPC | Maintained, (2) DPDT, Included, Included, Not Included, Included, Included, Not Included, Included, |
7023 ATS AUD CYL NR US19 WPC | Maintained, (2) DPDT, Included, Included, Included, Not Included, Not Included, Not Included, Included, Not Included, |
7023 ATS AUD CYL KEY NR PBA US10 | Maintained, (2) DPDT, Included, Included, Included, Not Included, Included, Not Included, Included, Not Included |
7023 ATS AUD CYL DBL NR PBA US10 WPC | Maintained, (2) DPDT, Included, Included, Included, Included, Not Included, Not Included, Included, |
7023 ATS AUD CYL DBL KEY NR PBA US10B | Maintained, (2) DPDT, Included, Included, Included, Included, Included, Not Included, Included, Not Included |
