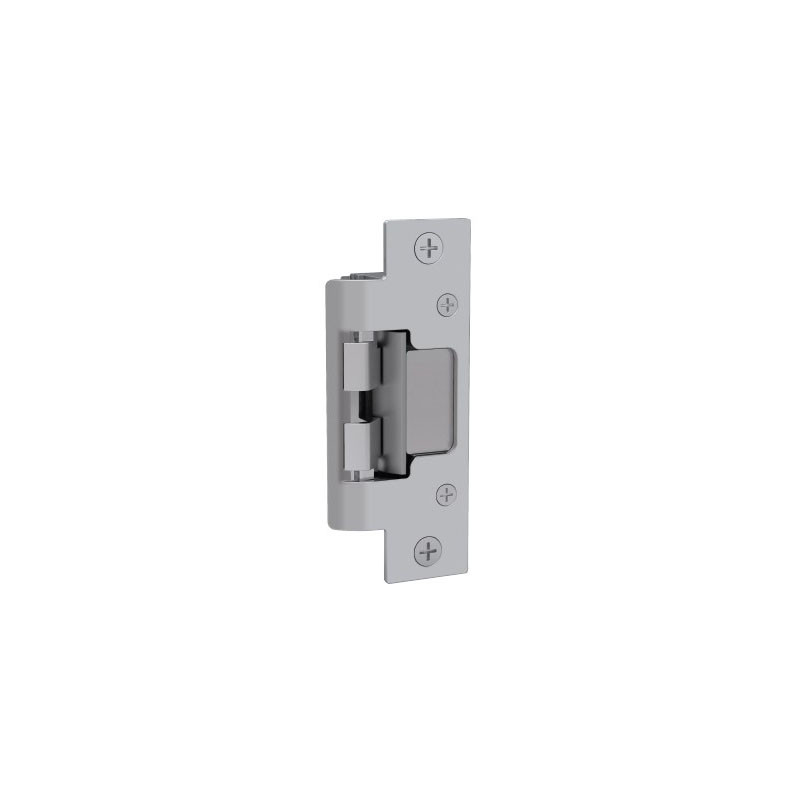

HES 8300 Electric Strike Body & 8300C Complete Electric Strike Kit

8300-

$592.00

Details: HES 8300 Electric Strike Body & 8300C Complete Electric Strike Kit

The 8300 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8300 to exceed the ratings of the frame, door and locking hardware. This unique electric strike is easy to install and complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8300 accommodates latchbolts up to 5/8" throw.

Specifications

  • UL 10C, fire-rated, 3 hour (fail secure only)
  • UL 294 (6th Edition) listed
  • CAN4-S104 (ULC-S104) fire door conformant
  • NFPA 80-07 compliant
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • UBC-7-2-94, Uniform Building Code
  • Patent #5,934,720; 8,146,966; 8,157,302

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

Standard Features

  • Falls within the guidelines for retrofit into fire-rated frames
  • No cutting on frame required
  • Vertical adjustability to accommodate door sag and misalignment
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Non-handed
  • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

Finishes

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black , *Complete Pacs are only available in the 630 finish

Faceplates & Accessories

Face Plate Options

801 (4-7/8" × 1-1/4")
For use with cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8" throw. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
801A (4-7/8" × 1-1/4", radius corners & flat faceplate)
For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E05031, #E09321, #E09322, #E09323
802 (7-15/16" × 1-7/16")
For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E05031, #E09321, #E09322, #E09323
803 (6-7/8" × 1-1/4", radius corners & flat faceplate)
For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum applications. ANSI/BHMANumbers: #E05031, #E09321, #E09322, #E09323
805 (9" × 1-3/8", radius corners & flat faceplate)
For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Four point mounting for wood installations. ANSI/BHMANumbers: #E05031, #E09321, #E09322, #E09323

Accessories

  • 2001M - Plug-in bridge rectifier
  • 2004M - ElectroLynx® adapter
  • 2005M3 - SMART Pac III™
  • 2006M - Plug-in buzzer

Documentation

UL Certifications & Listings

HES 8300 Electric Strike

Lock Cross Reference

ANSI Lock Description Manufactuter Electric Strikes

Mortise, Locksets,

Mortise lockset, without a deadbolt 		Arrow, Baldwin, Best, Marks, Omnia, PDQ 1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006KM, RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 742-75
Corbin Russwin, ML2000 and, Arrow1600CS, 1006CS, 1600CLB, RF1006CLB, IC1006CLB 1600-1LB, 1006-KM, , RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 8500-852K, RF8500-852K, IC8500-852K, 742-75
Sargent 7700, 8100, Schlage L*1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD, 1500C, 4500C, RF4500, IC4500, *8500-852L, RF8500-852L, IC8500-, 852L(Schlage L), 742-75
Sargent 7900, 8200, 92001600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KM, RF1006-KM, IC1006-KM, 1500C, 4500C, 8500-851M, RF8500-851M, IC8500-851M, 742-75
Accurate, Falcon, Kaba, Ilco/Unican, Yale 8700, (manufactured, after 2005), Yale 88001600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD 1500C, 4500C, RF4500, IC4500, 8500-852M, RF8500-852M, IC8500-852M

Mortise, Locksets

Mortise lockset, with a , 1" deadbolt 		Accurate, Almet, Arrow, Baldwin, Best, Marks, Corbin, Russwin, Falcon, Omnia, PDQ Schlage1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AM*, 1006-HM*, 1006-, NM, 1006T*
Sargent, Yale1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AD*, 1006-HD, 1006-ND

Cylindrical , lockset

Latchbolt for, aluminum stile, doors 		All, manufacturers5000, RF5000, IC5000, 1600-1LB, 1006-J, 7000C, RF7000, 1500C, IC7000, 5200, RF5200, IC5200

Cylindrical , lockset

Cylindrical lockset, up to 5/8" throw 		All manufacturers1600CS, 1006CS, 5000, RF5000, IC5000, 7000C, RF7000, IC7000, 8000, RF8000, IC8000, 8300, RF8300, IC8300, V3, 712, 310-2

Cylindrical , lockset

Cylindrical lockset, up to 3/4" throw 		All Manufacturers1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-J, RF1006-J, IC1006-J, 5200, RF5200, IC5200, 1500C, 4500C, RF4500, IC4500, 4500, RF7500, IC7500, 712-75, 310-75

Rim mounted

Rim mounted exit, device up to 1/2", throw 		All Manufacturers7000-789, RF7000-789, IC7000-789, 9400, RF9400, IC9400

Rim mounted

Rim mounted exit, device up to 3/4", throw 		All Manufacturers7000-783, RF7000-783, IC7000-783, 7000-786, RF7000-786, IC7000-786, 9500, RF9500, IC9500, 9600, RF9600, IC9600, 310-4

Rim mounted

Rim mounted exit, deadbolt 		Corbin Russwin, (Secure Bolt), Yale (Square, Bolt), 9700, 310-4S

HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except asnoted for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.

Electric strikes can be installed in a wide range of swinging door applications.

Consider these factors to help determine the right electric strike for your project.

Assess the type of frame and health of the opening

  • Material: hollow metal, aluminum or wood?
    Adams Rite offers electric strikes for aluminum, hollow metal or wood doors. Please see the Adams Rite catalog to order the compatible model for your door application.
  • Type: hollow or concrete-filled? Concrete-filled may require additional tools. Consider using no-cut electric strikes.
  • Health of door and frame: can frame or door irregularities be fixed prior to electric strike installation?

Determine if door assembly has special requirements

  • Fire-rated Assembly (NFPA 80 Fire Doors)
  • Windstorm Resistant (tested to sustain winds up to 150 mph)
  • Outdoor Rated (UL 1034)
  • Preload Capable

Identify and test existing door hardware

  • Existing locking hardware determines the compatible electric strike and overall function of the opening

Common Accessory

2005M3 Smart Pac® III

Reduces initial voltage in timed or fail safe operations by 25% to extend the life of the electric strike.

Addition of Smart Pac to any HES electric strike extends the 5-year no-fault warranty to a 10-year no-fault warranty.

Cylindrical Picture Cylindrical with
1/2", 5/8", 3/4" Latchbolt
HES 1600, 1006, 1500
Fire Rated Picture

Fire Rated
Windstorm Resistant Picture

Windstorm Resistant
Outdoor Rated Picture

Outdoor Rated
HES 5000
Outdoor Rated Picture

Outdoor Rated
HES 5200
HES 7501
Fire Rated Picture

Fire Rated
Preload Picture

Preload

 up to 15 lbs
HES 8000
Outdoor Rated Picture

Outdoor Rated

 no-cut
HES 8300
Fire Rated Picture

Fire Rated
Outdoor Rated Picture

Outdoor Rated
Adams Rite 7100 Series
Adams Rite Ultraline® 7400 Series
Preload Picture

Preload

 up to 25 lbs
Mortise Lockset without a Deadbolt Mortise Lockset without a Deadbolt
up to 3/4" Throw Latchbolt
HES 1600, 1006, 1500
Fire Rated Picture

Fire Rated
Windstorm Resistant Picture

Windstorm Resistant
Outdoor Rated Picture

Outdoor Rated

 HES 8500
Fire Rated Picture

Fire Rated
Outdoor Rated Picture

Outdoor Rated

 no-cut
Adams Rite 7160
Mortise Lockset with a Deadbolt Mortise Lockset with a 1" Deadbolt
HES 1600, 1006
Fire Rated Picture

Fire Rated
Windstorm Resistant Picture

Windstorm Resistant
Outdoor Rated Picture

Outdoor Rated
Mortise Lockset without a Deadbolt Rim Exit Devices up to 1/2" Throw Latchbolt
HES 9400
Outdoor Rated Picture

Outdoor Rated

 no-cut
surface mounted		 Adams Rite Ultraline® 74R2
Preload Picture

Preload

 up to 25 lbs
Mortise Lockset without a Deadbolt Rim Exit Devices up to 3/4" Pullman Latchbolt
HES 7000
Preload Picture

Preload

 up to 15 lbs
HES 9500
Fire Rated Picture

Fire Rated
Outdoor Rated Picture

Outdoor Rated

 no-cut
surface mounted
HES 9600
Windstorm Resistant Picture

Windstorm Resistant
Outdoor Rated Picture

Outdoor Rated

 no-cut
surface mounted
Adams Rite Ultraline® 74R1
Preload Picture

Preload

 up to 25 lbs
Mortise Lockset without a Deadbolt Rim Exit Devices with Corbin Russwin
SecureBolt® or Yale SquareBolt®
HES 9700
Fire Rated Picture

Fire Rated
Windstorm Resistant Picture

Windstorm Resistant
Outdoor Rated Picture

Outdoor Rated

 no-cut
surface mounted

Available Model Numbers and Combinations

Model/SKU Attributes
8300
8300-LBM
8300C
8300C-LBM
