> >>>NGP L-700-RXDKB Steel Louvers, Self Attaching, No Vision
Reduced price! L-700-RXDKB_path.jpg

National Guard Products

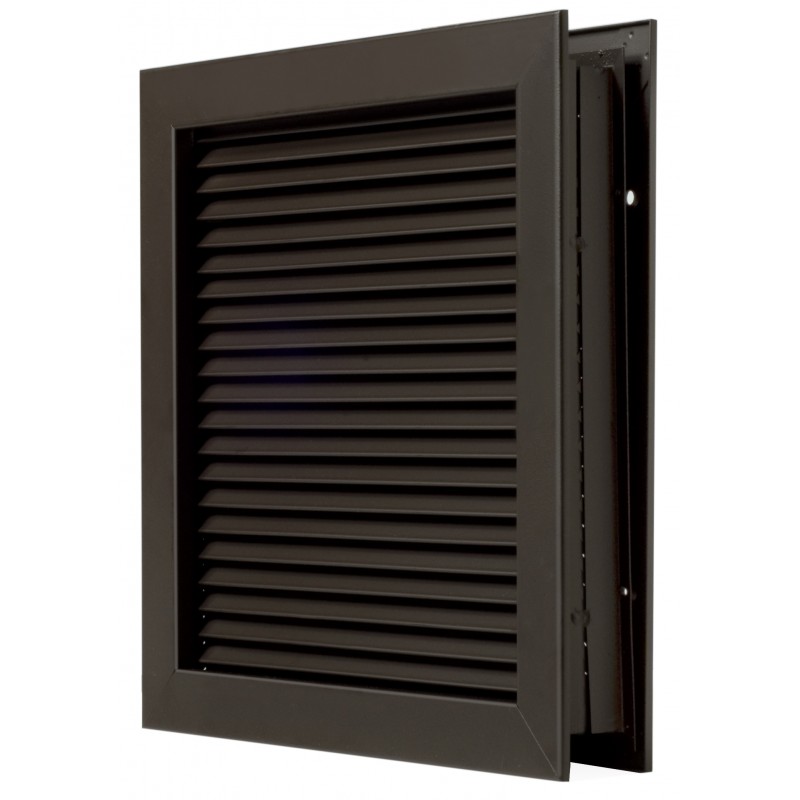

NGP L-700-RXDKB Steel Louvers, Self Attaching, No Vision

L-700-RX

$114.40

Details: NGP L-700-RXDKB Steel Louvers, Self Attaching, No Vision

Features

  • 18 ga. cold rolled steel
  • Mitered and welded corners
  • Welded reinforcing clips at corners
  • Inverted "V" design
  • Blades 24 ga. steel; hemmed edges
  • Counter-sunk mounting screw-holes
  • #8 × 3/4" Phillips head SMS
  • Available in uneven and fractional sizes
  • Free area 55%
  • Gray Primer (GPZ) powder coat finish
  • Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16"

Options

  • • Powder coat color options available - see color chart
  • Thru Bolts - specify L-700-RX-TB
  • Aluminum Insect screen - 22 ga. 1/8" square mesh installed exterior side unless requested otherwise
  • Torx Security Screws
  • Galvanneal - A40 Steel
  • Zinc electro-plating (not available on insect screen)

Standards

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKU Attributes
L-700-RXDKB-12x12 12" x 12", Not Included, Not Included
L-700-RXDKB-24x12 24" x 12", Not Included, Not Included
L-700-RXDKB-24x18 24" x 18", Not Included, Not Included
L-700-RXDKB-24x24 24" x 24", Not Included, Not Included
L-700-RXDKB-18x12 18" x 12", Not Included, Not Included
L-700-RXDKB-18x18 18" x 18", Not Included, Not Included
