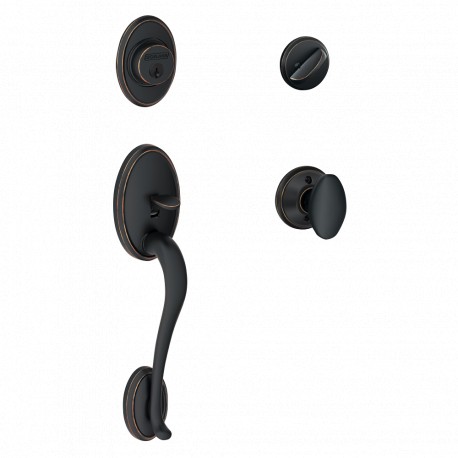

Schlage Wakefield Handleset

?
?
?
?

Details: Schlage Wakefield Handleset

Performance Features

  • Professional Grade 1 Security Deadbolt
  • Lifetime limited mechanical and finish warranty
  • One-Tool Installation - Installs with just a Phillips screwdriver
  • Patented throughbolt slides up and down so you don't have to patch/redrill your door

Technical Specifications

Double Option Latch Provided
(Round Corner & Drive-in)
  • Latch: 1" × 2¼" Triple Option - Round Corner + Square Corner + Drive In (16-210 + 12-300)
  • Applications: Residential single and multi-family entrance doors.
  • Exposed trim: Outside trim: Handlesets are solid forged brass; wrought brass trim rings with concealed security inserts. Inside trim: Levers are zinc-based plated to match finishes indicated.
  • Keying: FA -Series handlesets are 5-pin tumbler with two keys per lock. F-Series handlesets are 6-pin tumbler with two keys per lock.
  • Door thickness range: 1-5/8" to 2" thick (41mm-51mm) standard. Thick door kit available.
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Trim rings and security inserts: F-Series and FA-Series handlesets are furnished with 7/8" wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit.

Downloads

Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage F60 F93 WKF Wakefield Handleset is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage lock is a great choice for commercial or residential applications.

Schlage F Series Interior Trim Knob/Lever Options

Schlage F Series Levers Finish Options

Schlage F Series Levers

Bright Brass605Satin Brass608Antique Brass609Polished Nickel618Satin Nickel619Bright Chrome625Satin Chrome626Lifetime Bright Brass505Aged Bronze716Oil Rubbed Bronze613Antique Pewter620Distressed Nickel621Matte Black622
Jazz Lever
Elan Lever
Avila Lever

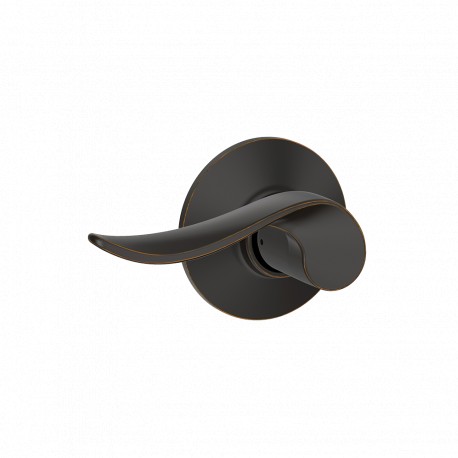

Sacramento Lever

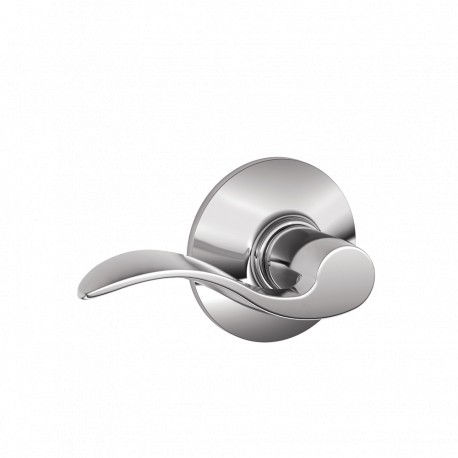

Accent Lever
Flair Lever
Latitude Lever

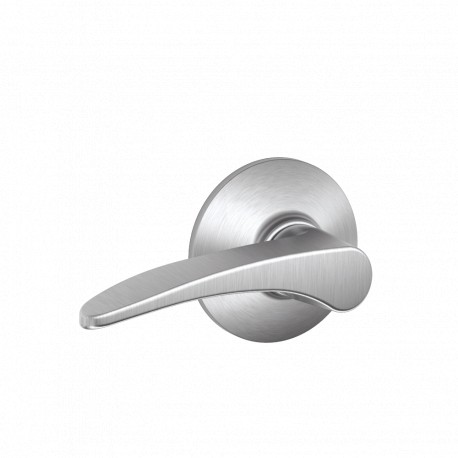

Manhattan Lever
Birmingham Lever
St. Annes Lever
Merano Lever
Broadway Lever

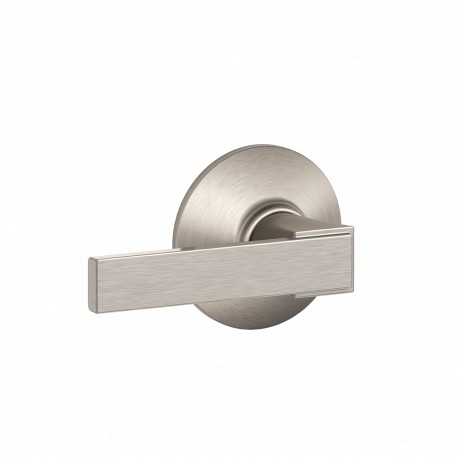

Northbrook Lever
Champagne Lever
Avanti Lever
Callington Lever

Schlage F Series Knobs Finish Options

Schlage F Series Knobs

Bright Brass605Satin Brass608Antique Brass609Polished Nickel618Satin Nickel619Bright Chrome625Satin Chrome626Lifetime Bright Brass505Aged Bronze716Oil Rubbed Bronze613Antique Pewter620Distressed Nickel621Matte Black622

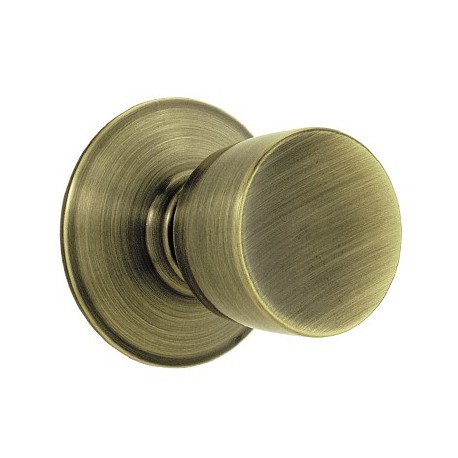

Bell Knob
Plymouth Knob
Georgian Knob

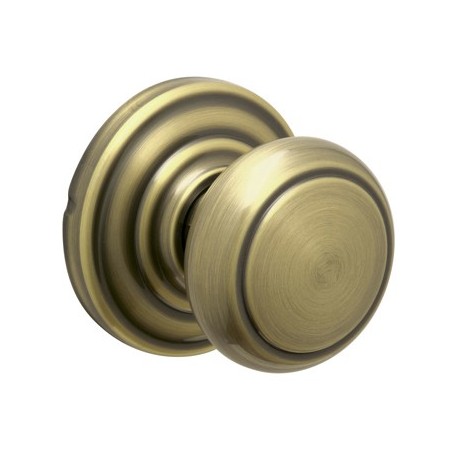

Andover Knob
Bowery Knob

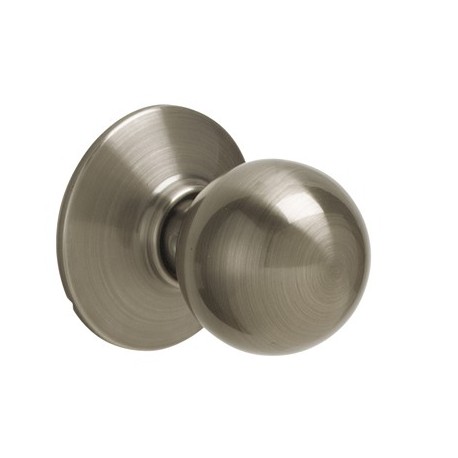

Orbit Knob

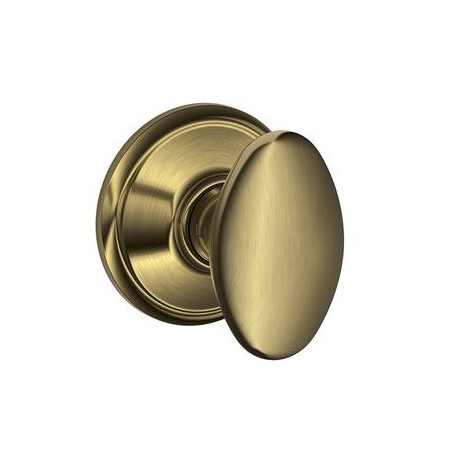

Siena Knob

Available Model Numbers and Combinations

Model/SKU Attributes
F60 WKF620 GEO625 WKF Single Cylinder, Antique Nickel, Georgian Knob, Bright Chrome, Wakefield, Keyed Different
F60 WKF620 PLY716 CAM Single Cylinder, Antique Nickel, Plymouth Knob, Aged Bronze, Camelot, Keyed Different
F60 WKF620 SIE626 WKF Single Cylinder, Antique Nickel, Siena Knob, Satin Chrome, Wakefield, Keyed Different
F60 WKF620 ACC716 LH Single Cylinder, Antique Nickel, Accent Lever, Aged Bronze, Left Handed, Standard, Keyed Different
F60 WKF620 BRW622 CAM Single Cylinder, Antique Nickel, Broadway Lever, Matte Black, Camelot, Keyed Different
F60 WKF620 FLA716 RH CAM Single Cylinder, Antique Nickel, Flair Lever, Aged Bronze, Right Handed, Camelot, Keyed Different
F60 WKF620 NBK619 GSN Single Cylinder, Antique Nickel, Northbrook Lever, Satin Nickel, Greyson, Keyed Different
F60 WKF622 GEO626 Single Cylinder, Flat Black, Georgian Knob, Satin Chrome, Standard, Keyed Different
F60 WKF622 BRW625 WKF Single Cylinder, Flat Black, Broadway Lever, Bright Chrome, Wakefield, Keyed Different
F60 WKF622 CHP716 RH CEN Single Cylinder, Flat Black, Champagne Lever, Aged Bronze, Right Handed, Century, Keyed Different
F60 WKF622 FLA620 LH CAM Single Cylinder, Flat Black, Flair Lever, Antique Pewter, Left Handed, Camelot, Keyed Different
F60 WKF622 MNH619 LH CAM Single Cylinder, Flat Black, Manhattan Lever, Satin Nickel, Left Handed, Camelot, Keyed Different
F62 WKF625 AND716 Double Cylinder, Bright Chrome, Andover Knob, Aged Bronze, Standard, Keyed Different
F62 WKF625 ACC625 RH Double Cylinder, Bright Chrome, Accent Lever, Bright Chrome, Right Handed, Standard, Keyed Different
F93 WKF625 SIE626 GRW Dummy, Bright Chrome, Siena Knob, Satin Chrome, Greenwich,

View All Model Numbers and Options
