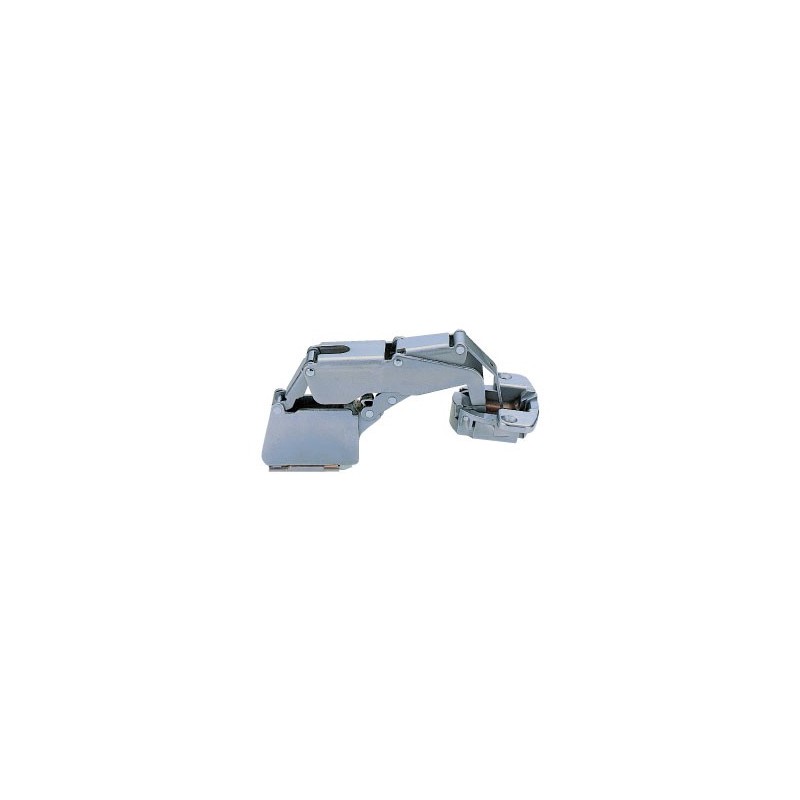

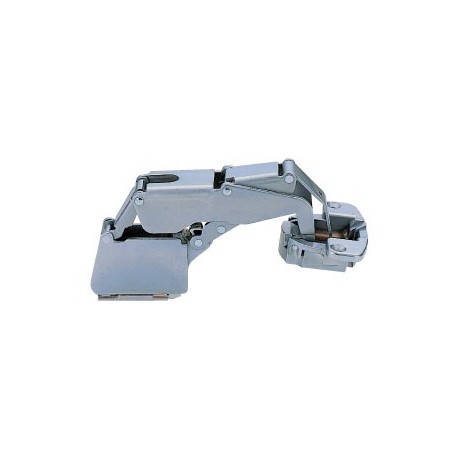

Details: Sugatsune H160 Cabinet Concealed Hinge, Inset, Finish-Satin Chrome

Specifications

Material

Steel

Weight of Item (g)

235

Length or Depth of Item when closed (in)

3.5

Height of Item (in)

2.375

Width of Item (in)

3.1875

Load Capacity (lbs/pr)

19.8

Load Capacity (lbs/3 ea)

22

Load Capacity (lbs/4 ea)

48.4

Load Capacity (lbs/5 ea)

57.2

Cup Bore Diameter (in)

1.5625

Max. Door Height (in)

94.5

Max. Door Width (in)

23.625

Max. Door Thickness (in)

1.3125

Min. Door Thickness (in)

1.1875

Closing Type

Free swinging

Holes

2

Max. Opening Angle (degree)

160

Are Fasteners Required

Y

Fasteners Type

3.5mm or 5 screw

Is RoHS Compliant

RoHS 3

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use
