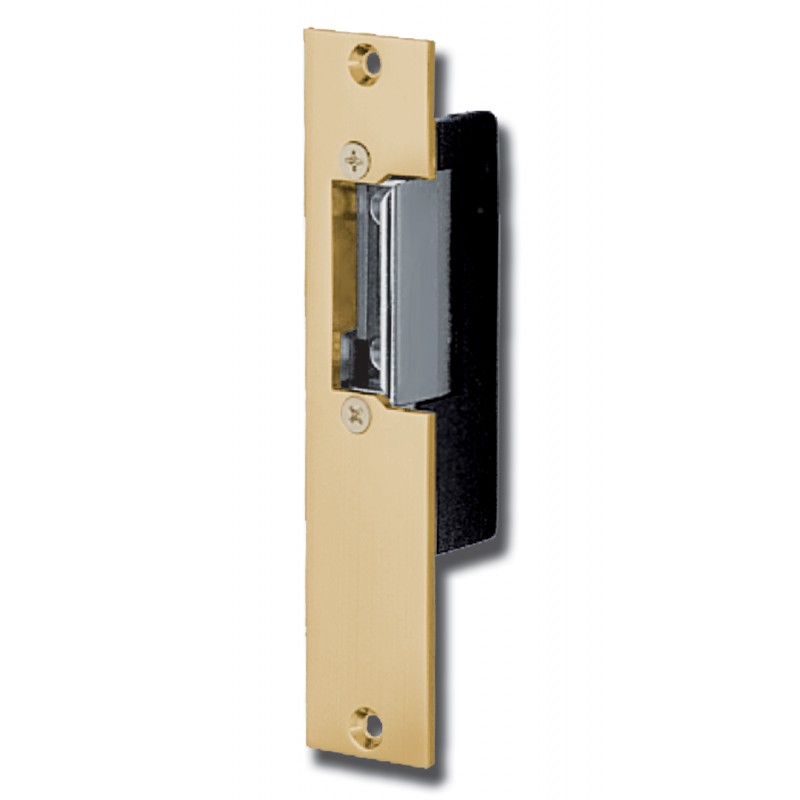

Details: Trine 1001 Electric Strike, 5-7/8" Offset

1000 Series Features

Durability - 500,000 Life Cycles.
Releases Under Slight Door Pre-Load.
Holding Force - 1000 lbs.
Tall Latch Cavity.
Non Handed Operation.
Screw Terminals - Quick Connection.

Voltage	Amps	Ohms (")	Duty	Sound
6-12VAC	0.495 - 1.500	8	Intermittent.	Buzz
6-12VDC	0.750 - 1.200	8	Continuous.	Silent
14-24VAC	0.270 - 0.480	50.0	Intermittent.	Buzz
14-24VDC	0.380 - 0.610	50.0	Continuous.	Silent

For use in new or replacement installations in wood and metal jambs. For use with locksets having up to 5/8" throw, based on 1/8" door gap.

Steel Face Plate 5-7/8" × 1-1/4" -- Narrow Style Face Plate -- Mortise Backset 1-1/2" -- Cavity Depth 9/16" -- Cavity Width 9/16" -- Cavity Height 1-11/16"

Available Finishes: 1001-2 (Brass Powder Coated) -- 1001-2C (Satin Chrome or - BHMA652)

Specifications

Lower Temperature Rating: -20°C
Maximum Temperature: 40°C
Warranty: 1 Year Limited Warranty

Trine Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
1001-2-6-12AC	Brass Powder Coated, 6-12VAC
1001-2-6-12DC	Brass Powder Coated, 6-12VDC
1001-2-14-24AC	Brass Powder Coated, 14-24VAC
1001-2-14-24DC	Brass Powder Coated, 14-24VDC
1001-2C-6-12AC	Satin Chrome, 6-12VAC
1001-2C-6-12DC	Satin Chrome, 6-12VDC
1001-2C-14-24AC	Satin Chrome, 14-24VAC
1001-2C-14-24DC	Satin Chrome, 14-24VDC
