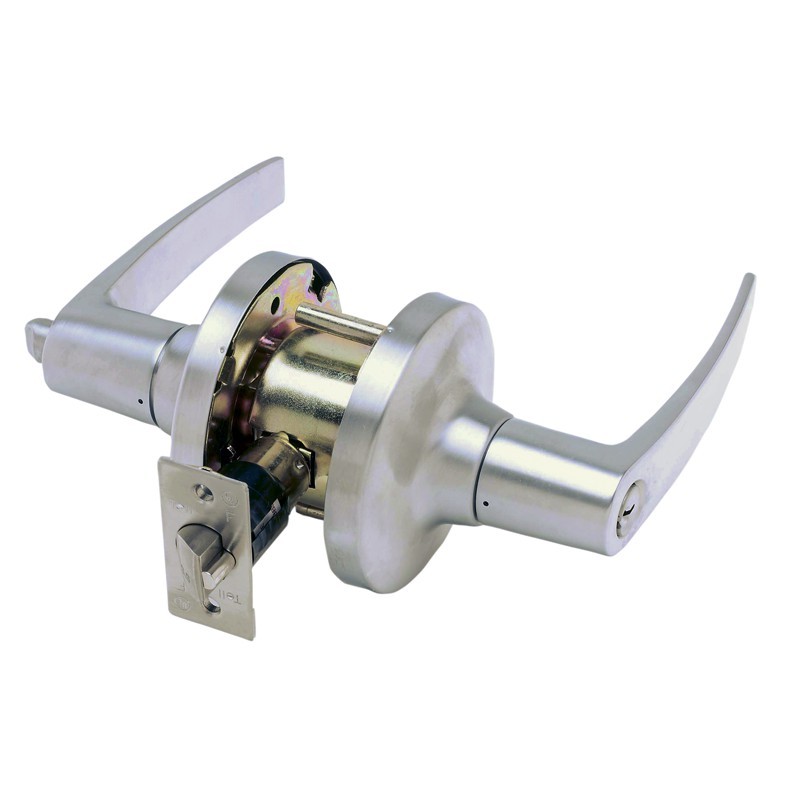

Value Brand LC1200 Grade 1 Heavy-Duty Commercial Leverset Sturdee Design
LC-1200 STR
Performance
Complies with ANSI A156.2 - 2003, Series 4000, Grade 1, 800,000 cycles, UL listed for 3 hour fire door |
Chassis
Cylindrical, steel - coated with zinc dichromate (corrosion resistance), freewheeling clutch (added security from hammer attacks), independent spring cages |
Lever
Non-handed, solid cast |
Latch
1⅛" × 2¼", square corner faceplate, 1" housing diameter (stainless steel),½" throw | |
Rose | 3½" diameter |
Backset
2¾" | |
Strike | Square corner 1¼" × 4⅞" ANSI ASA Strike |
Standard Cylinder | Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). |
Keys | Two nickel silver per lock cylinder |
Cylinder | Other manufacturers including small format interchangeable cores |
Door Range
1⅜" to 2" |
Door Preparation
2⅛" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep with through-bolting through the door. |
Warranty
5 year limited |
Keyway: Schlage C 6-Pin (Other Keyway cylinders are available, please contact customer service if required) |
For the LC1200 SERIES Value Brand Heavy-Duty Commercial Grade 1 Leversets make the 3 different styles: Cortland (CTL), Buckingham (BUC), Sturdee (STR), 3 separate products. |
