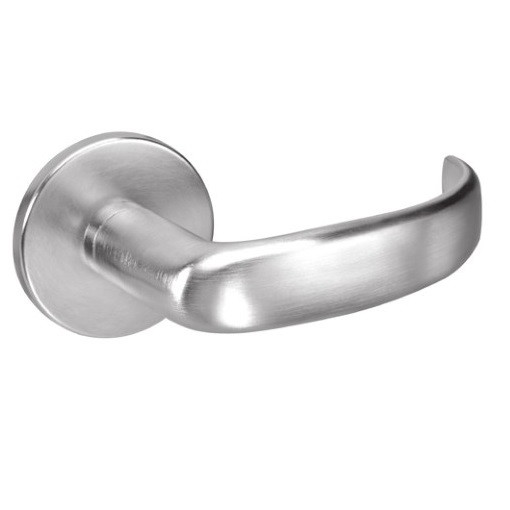

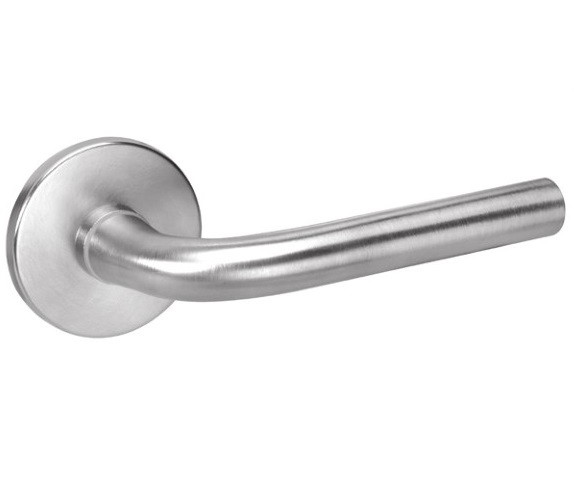

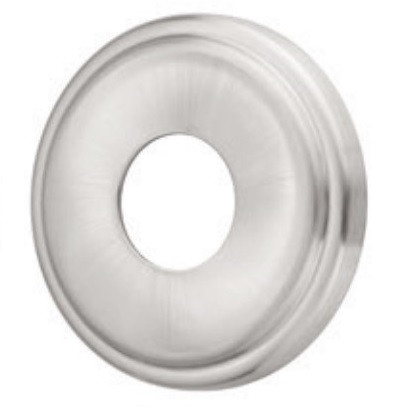

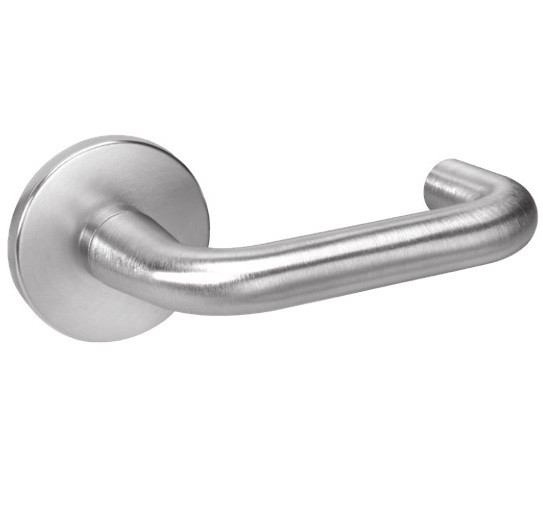

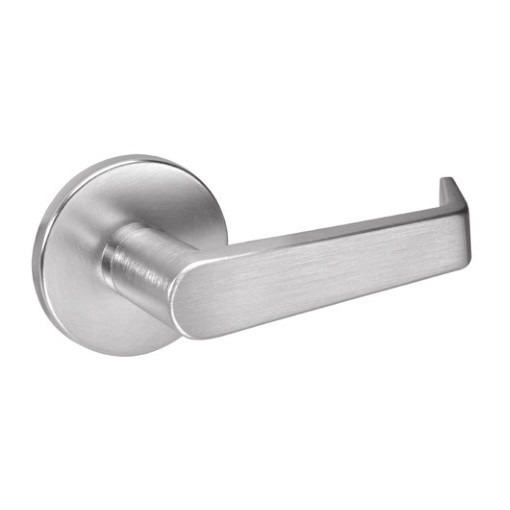

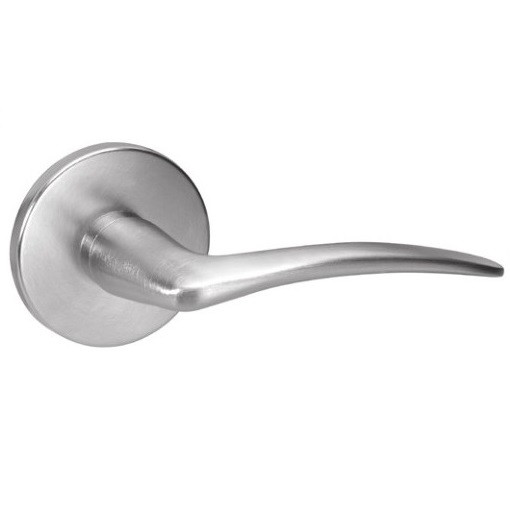

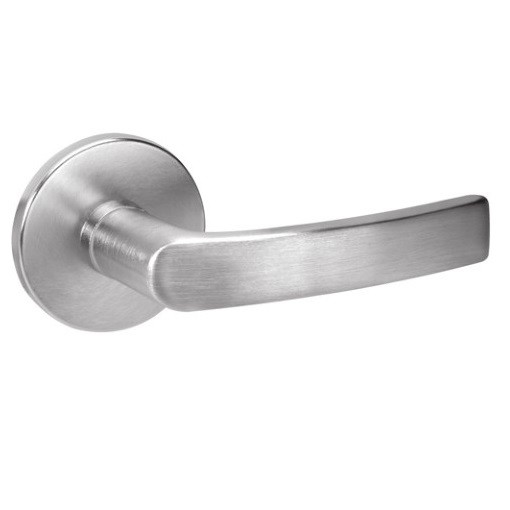

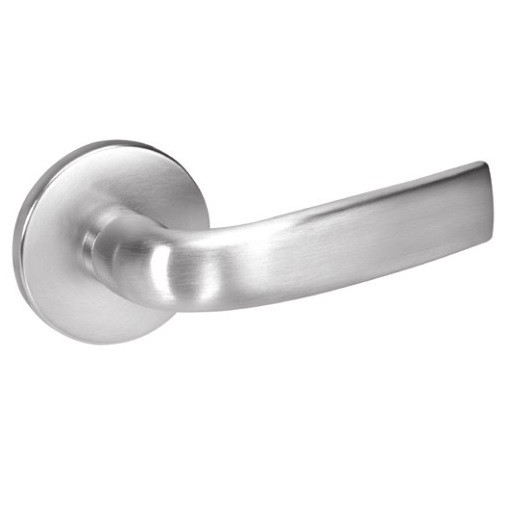

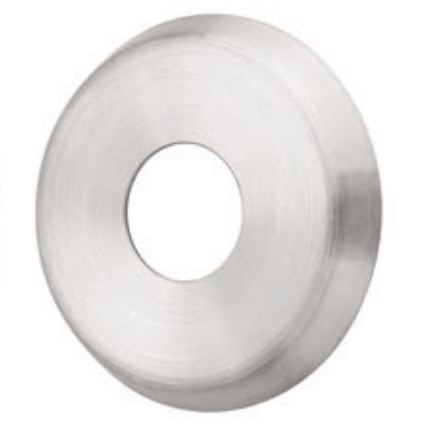

Yale-Commercial 8809FL-611-MOLH Series Mortise Lock, Standard Lever & Rose
8809FL-611-MOLH
- Finish
- Bright Bronze
Details: Yale-Commercial 8809FL-611-MOLH Series Mortise Lock, Standard Lever & Rose
ASSA ABLOY ACCENTRA 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Features
- Functions available for any industrial or commercial application
- Field adjustable handing
- Available in a variety of attractive trims and finishes
- UL/cUL listed for 3-hour fire rated doors
- Heavy-duty escutcheon trim for resistance against damage and vandalism
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
Specifications
- ANSI/BHMA Code
- A156.13
- ANSI/BHMA Series
- Series 1000
- Backset Depth (Standard)
- 2 3/4"
- Cylinder Format
- Conventional, Large Format, Small Format
- Door Thickness (Standard)
- 1 3/4"
- Handing
- Field Reversible
- Latchbolt Throw
- 3/4"
- Maximum Backset
- 2 3/4"
- Minimum Backset
- 2 3/4"
- Maximum Door Thickness
- 3 1/4"
- Minimum Door Thickness
- 1 3/4"
- Number of Keys
- 2
- Strike Type
- Curved Lip
- UL Listed
- Yes
- ULC Listed
- Yes
- Warranty
- 10-year (Mechanical) / 2-year (Electrified) limited warranty
Applications
- Offices
- Shopping centers
- Industrial buildings
- Commercial facilities
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 838BFL-606-PBRH | Satin Brass w/ Clear Coated, |
| 8805FL-626-AULH | Satin Chrome Plated, |
| 8807FL-629-AULH | Bright Stainless Steel w/ Nickel Plated Lever, |
| 8833FL-612-PBLH | Satin Bronze w/ Clear Coated, |
| 8822FL-611-MORH | Bright Bronze, |
| 8861FL-630-MOLH | Satin Stainless Steel w/ Nickel Plated Lever, |
| 8817-2FL-WSP-AULH | White Suede Powder Coat, |
| 8834-2FL-630-PBLH | Satin Stainless Steel w/ Nickel Plated Lever, |
| 8820FL-618-PBLH | Bright Nickel Plated w/ Clear Coated, |
| 8801FL-606-MOLH | Satin Brass w/ Clear Coated, |
| 8835FL-629-PBLH | Bright Stainless Steel w/ Nickel Plated Lever, |
| 855FL-613E-LHV11EMB | |
| 855FL-613E-RLHV06EMB | |
| 855FL-613E-R3LH | |
| 855FL-613E-R4RHV01EMA |
