> >>>>HES SB:710 Series Folger Adam Electric Strike Body Only
Reduced price! HES 710 Electric Strike Body Only 1/2

HES

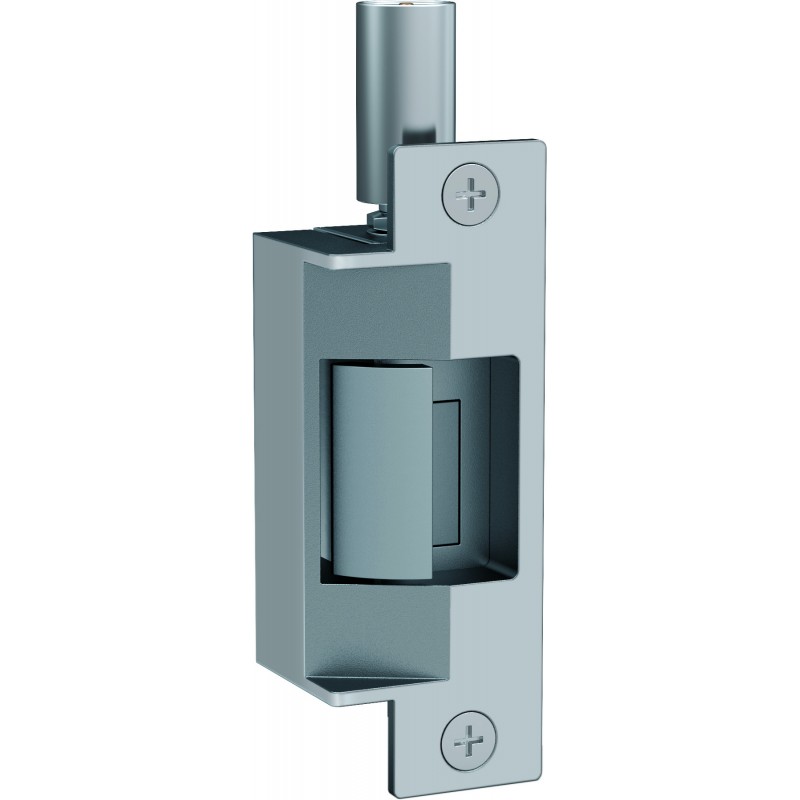

HES SB:710 Series Folger Adam Electric Strike Body Only

710-

$672.00

Details: HES SB:710 Series Folger Adam Electric Strike Body Only

The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1/2" throw latchbolts, and the 712-75 is designed to accommodate 3/4" latchbolts.

Features

  • 1/2" keeper depth (712 and 732)
  • 3/4" keeper depth (712-75 and 732-75)
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Dynamic strength 70 ft-lbs
  • Fail secure (standard)
  • Horizontally adjustable keeper to allow for door and frame misalignment
  • Non-handed
  • Plug-in connector
  • Static strength 1,500 lbs
  • Tamper resistant, heavy-duty construction

Specifications

Adjustability
Horizontal
Surface Mounting
NA
Frame Material
Metal Wood
Shim Type
NA
Latchbolt Accommodation
1/2" - 3/4"
Voltage
12, 24
Monitoring Installation
Factory Configured
Monitoring Options
Latchbolt Strike Monitor
Endurance (cycles)
1,000,000
Dynamic Strength (ft-lbs)
70
Tamper Resistant
NA
Fail Safe Fail Secure
Fail Secure
Warranty
SecuriCare five-year, no fault, no questions asked warranty
Lock Type
Cylindrical Lock Mortise Lock
Strike Body Depth (in)
NA
Strike Body Height (in)
NA

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Specifications & Options

Strike Type
Mortise
Security
Fail Safe, Fail Secure
Duty
Heavy Duty (Grade 1)
Monitoring
Latchbolt
Position
Centerline
Bolt Throw / Projection
1/2" (Pullman), 3/4"

Available Model Numbers and Combinations

Model/SKU Attributes
710--12D Not Included
710--12DLBMLCM Included
710--24D Not Included
710--24DLBMLCM Included
710-F--12D Not Included
710-F--12DLBMLCM Included
710-F--24D Not Included
710-F--24DLBMLCM Included
710-75--12D Not Included
710-75--12DLBMLCM Included
710-75--24D Not Included
710-75--24DLBMLCM Included
710-75-F--12D Not Included
710-75-F--12DLBMLCM Included
710-75-F--24D Not Included

View All Model Numbers and Options
