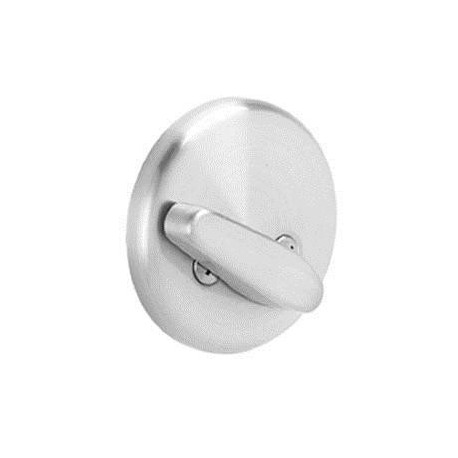

Schlage B581 Door Bolt with Trim
Details: Schlage B581 Door Bolt with Trim
The Schlage B581 is a keyless deadbolt operated by a thumbturn. This model comes with a blank trim plate for the outside "This lock fits a 1⅝" hole only".
Specifications
Handing: Non-handed.
- Door Thickness:
- 13/8" to 13⁄4" thick (35mm to 44 mm) standard.
- Backset:
- B500-Series: Adjustable for 2⅜" (60mm) or 2¾" (70mm) standard.
- Front: Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29mm × 57mm) square corner, beveled.
- Dead Bolt: 1" (25 mm) throw with saw-resistant hardened steel insert.
- Latch Bolt: Brass, 9⁄16" (14mm) throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass, bronze or stainless steel.
- Thumbturn: Pressure cast zinc, plated to match finish symbols.
- Strike: 11⁄8" × 23⁄4", metal dust box reinforcer and three 3" screws. Optional strikes, lip lengths and ANSI strike box available.
- Certifications
- ANSI:
The B500 series meets or exceeds A156.5 Grade 2 strength and operational requirements. - Warranty:
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage B581 Door Bolt with Trim is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The perfect auxiliary deadbolt. The Schlage B581 Door Bolt with Trim adds extra protection to entrance doors, storage spaces, and common use areas.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| B581 626 | Satin Chrome |
| B581 613 | Oxidized Satin Bronze |
| B581 619 | Satin Nickel |
