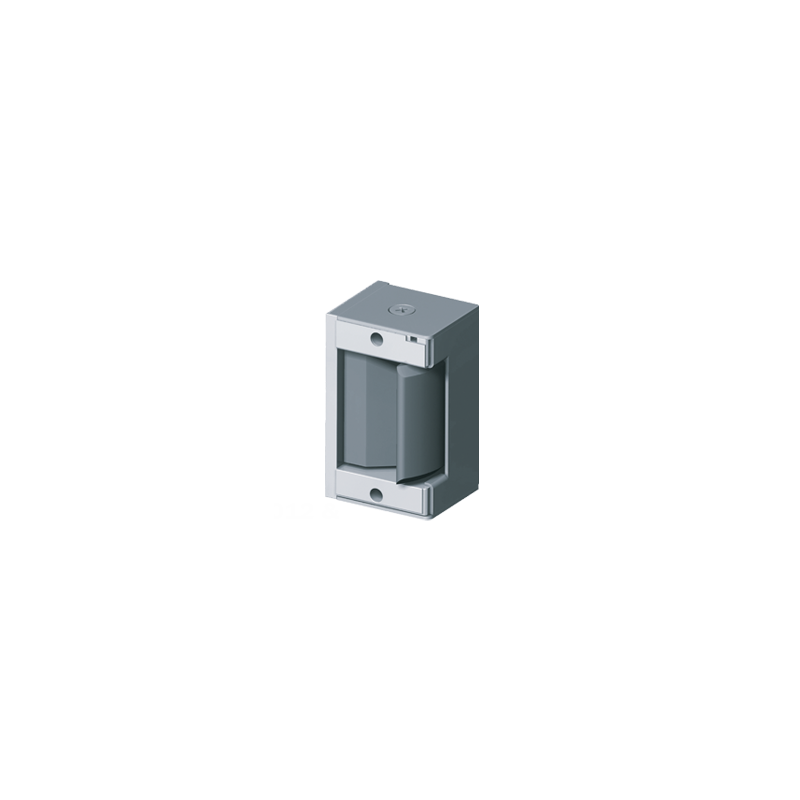

Trine 3012 / 3024 Mechanism 3000 Series Electric Strike
30
Details: Trine 3012 / 3024 Mechanism 3000 Series Electric Strike
GRADE 1
500,000 + life cycles
1,500 + lbs. holding force (1,200 lbs. for 334)
Dynamic Force 70 ft/lb.
Solid stainless steel latch and in the device body.
Accepts a bolt with a up to 5/8" throw
Non-handed Unit (except 458, 478 LO/RO)
Fail secure - standard action (unlocks with power)
Fail safe - "RS" (locks with power)
Mechanism spacers increase cavity depth up to 1/8"
Available in 12 or 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration)
