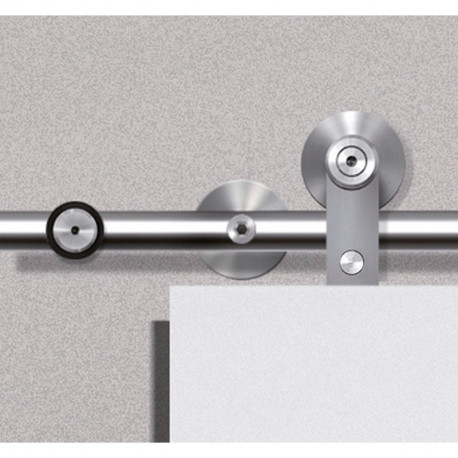

Details: ABP-Beyerle USU96 Flatec V Series Barn Door Hardware Set for Wooden Doors

Features

• Application for hospitality and building offices
• Single door sets
• Anti-jump device
• Made from stainless steel (AISI304L)
• Heavy duty polymer roller
• Finish options: satin stainless steel

Benefits

• ANSI/BHMA A156.14-2013 tested and certified grade 1
• Intertek certification
• Door thickness: 1 7/16" - 1 3/4"
• Initial friction < 10 NM
• Maximum door weight: 320 lbs (145 kg)
• Height adjustment ± 1/64"
• Passage width 29 1/2" - 35 7/16"

Kit Includes

• One (1) track rail 70 7/8"
• Two (2) trolleys
• Four (4) wall mounts
• 1 door bottom guide
• 2 door stoppers
• hanger bolts

Documentation

• Installation
• Specsheet Z1
• Specsheet Z2
• Specsheet Z2

ABP-Beyerle Warranty
