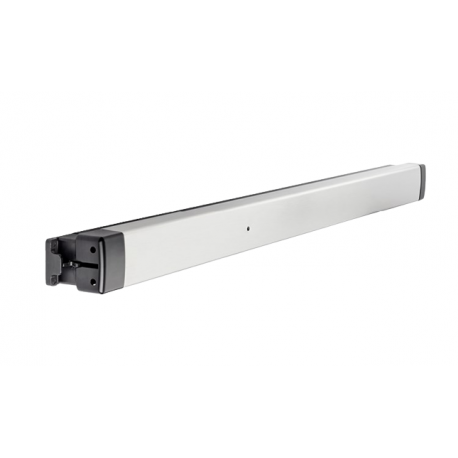

Details: Adams Rite 8800 Narrow Stile Starwheel Rim Exit Device- Life-Safety

Exit Devices simplify egress and are priceless during emergencies. With the Adams Rite 8800 Series Life-Safety Narrow Stile Rim Exit Device you can rest easy knowing that your facility is fully equipped for an emergency. Available in Life-Safety and Fire-Rated models.

Features

Patented “Starwheel” bolt interlocks door to frame
Strong, durable construction for a high level of security
Easy to install
Unobtrusive design for clean sight lines
Pushbar clad or anodized, not plated, in a variety of finishes

Specifications

8800 Series Certifications:
UL 305 Panic Hardware
ANSI/BHMA A156.3 Grade 1
California State Fire Marshall
New York City MEA*

*Consult Factory for specific number

Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Device is non-handed. Lever Entry Trim is field reversible.
Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
Stile Width: Minimum 2” Stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8” when fully projected, 1-5/8”when dogged.
Dogging: Standard dogging with hex key or cylinder dogging option. Electric dogging also available.
Fasteners: Standard self-tapping screws.
Cylinders: (available separately)
Cylinder x Fixed Pull (Function 03): Accepts any standard rim cylinder.
3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately).
Warranty: Five year limited.
Starwheel Bolt: When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.
Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).
Removable Mullion - 3890: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. Available in anodized 313 and 628. Specify door height when ordering.

Options and Accessories

Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.
Electric Latch Retraction:: The EL option is offered only for our Rim Exit devices and uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. The EL option is available for rim exit devices only.
Alarmed Exit Device:: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum openign width 36". Cannot be ordered with other exit device options.
Request to Exit (REX) – Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.
Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.
Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.
Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
Available Finishes: 313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless.

01	02	03	08	09	14
Exit only - no outside operation	No outside operation - pull only when dogged	Night latch - key retracts latch	Key outside unlocks/locks lever	Night latch - key unlocks trim, trim retracts latch/trim relocks when key is removed	Passage ony
Cylinder type - N/A	Cylinder type - N/A	Cylinder type - Rim	Cylinder type - Mortise	Cylinder type - Mortise	Cylinder type - N/A

About Adams Rite

Adams Rite designs, manufactures and markets door hardware products to the industrial, commercial, and institutional building construction industry. Carrying an extensive line of products including locks, latches, electric strikes, exit devices and integrated door assemblies, Adam's Rite has been providing security products to the United States and beyond for over 100 years. Standing by their tradition of developing new and innovative products, Adam's Rite builds their hardware to function well and to look good doing it, designing their products to complement the modern business aesthetic while meeting safety and access codes.

Adams Rite Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
8800M1-42US4MEC	Bright Brass, Single Switch, 42",
8800M1A48BUS32D	Bright Brass, Single Switch,
8800M2A48BUS4	Bright Brass, Dual Switch,
8800ELA42BUS32MEC	Bright Brass, Electric Latch Retraction, No Monitor,
8800ELM1A30BUS32DMEC-24	Bright Brass, Electric Latch Retraction, Single Switch, 24V
8800ELM1A48BUS32MEC	Bright Brass, Electric Latch Retraction, Single Switch,
8800ELM2A48BUS3-12	Bright Brass, Electric Latch Retraction, Dual Switch, 12V
8800AM2A36BUS32-24	Bright Brass, Dual Switch, 24V
8801M2-42335-24	Clear Anodized, Dual Switch, 42", 24V
8801ELM2-48313	Clear Anodized, Electric Latch Retraction, Dual Switch, 48",
8801MLRM1A48B313-24	Clear Anodized, Motorized Latch Retraction, Single Switch, 24V
8801AM1A42B313-12	Clear Anodized, Single Switch, 12V
8802A48B313	Dark Bronze Anodized, No Monitor,
8802ELM1A36B313-12	Dark Bronze Anodized, Electric Latch Retraction, Single Switch, 12V
8802MLRM2-30335-12	Dark Bronze Anodized, Motorized Latch Retraction, Dual Switch, 30", 12V
