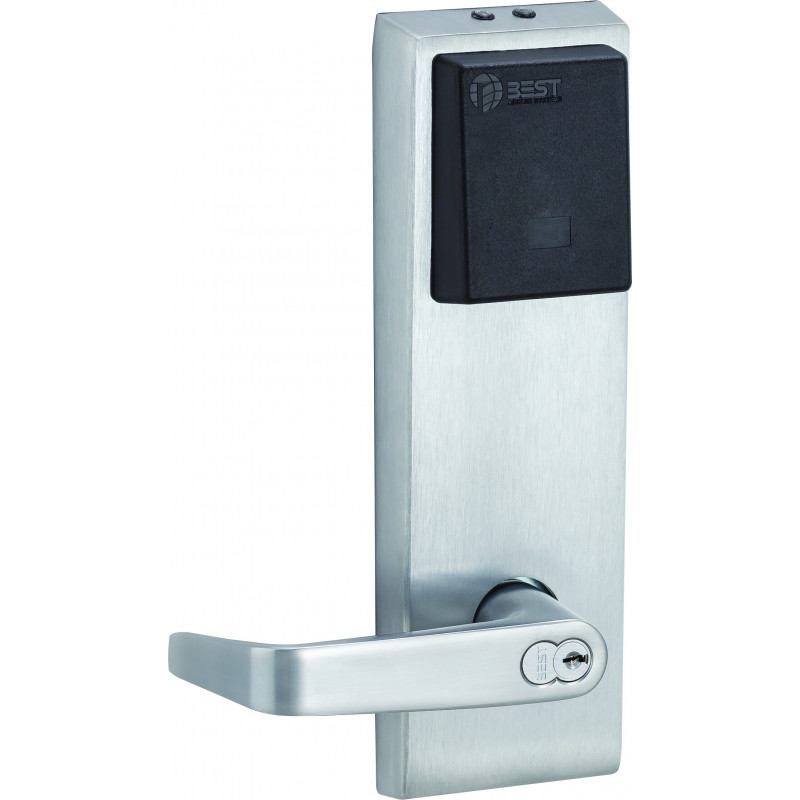

Best 45HG Offline G Series Mortise Lock

45HG

$962.01

Details: Best 45HG Offline G Series Mortise Lock

A highly efficient standalone lock system, the G Series Offline Lock utilizes card reader technology to address the real-life operational needs of residence halls, such as lost cards or room changes. With the G Series Offline Lock, ID cards are encoded with all the information necessary to control door access. The system integrates with virtually any existing database, and allows unsurpassed capabilities in storing and retrieving access activity data. And because the lock itself is offline, individual door access changes can be made quickly and conveniently. Everything about the G Series Offline Lock was designed to think... so you don't have to.

Specifications:

Case
0.095" cold rolled steel, 5 7/8" H × 7/8" D × 4 1/16" W. Steel is zinc dichromate plated for corrosion protection
Faceplate
Brass or bronze material, 8" H × 1 1/4" W × 1/16" T. Lock face automatically adjusts to proper bevel during installation
Strike
Brass, bronze, or stainless steel base material, 4 7/8" × 1 1/4" × 3/32". Fits standard door frame cut out as specified in ANSI A115.1. Universal (non-handed) strike supplied standard with lock
Backset
2 3/4"
Door Thickness
Standard lock configuration designed for doors 1 3/4" thick. Thick door configuration available for doors up to 3" thick (specify thickness when ordering)
Latchbolt
Solid stainless steel, 3/4" throw anti-friction. Reversible without opening case
Deadbolt
Stainless steel, 1" throw
Auxiliary bolt
Stainless steel, non-handed
Lever handle
Brass, bronze, or stainless steel base material. Lever styles #3, #14, and #15 return to a minimum of 1/2" of door surface. Lever 12, 16 and 17 do not return
Escutcheon
10 1/2" × 3 3/8" × 1" sloping down to 3/4"
