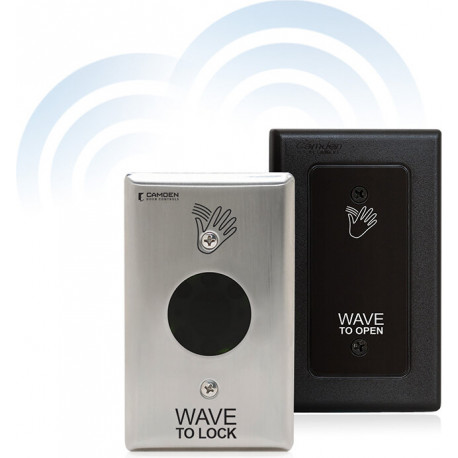

Details: Camden Door Control CM-336 Battery Powered, Wireless SureWave Touchless Switch

Camden Touchless SureWave CM-336 Series battery powered switches,12/24V AC/DC. Ideal for door activation where installing wiring is difficult or expensive. CM-RX-90 receiver required.

Features

Indoor/outdoor use minus 4 Degree F to plus 153 Degree F (minus 20 Degree C to plus 85 Degree C), gasket included.
Advanced active infra-red technology with fast response.
Heavy duty relay contacts.
Adjustable operating range up to 28", refer to model specification.
Adjustable time delay, refer to model specifcation.
Selectable fail safe/fail secure operation.
Lazerpoint(tm) compatible wireless hands-free switch offers the longest battery life using common alkaline batteries.

Specifications

Technology: Active Infra-red, utilizing microburst sensing technology
Voltage: 12-24V AC/DC
Wireless: Built-In
Wireless Frequency: 915 Mhz. Lazerpoint RF and trade, Spread Spectrum Wireless
Battery: (2)'AA' alkaline 32 Degree F to plus 122 Degree F (0 Degree C to plus 50 Degree C)
(2) 'AA' Lithium Batteries (optional) minus 40 Degree F to plus 122 Degree F (minus 40 Degree C to plus 50 Degree C).
Battery Life: Lithium: 4 years with 100 activations per day Alkaline 2 years with 100 activations per day
Adjustable Operating Range: 1"-12" (25mm-304mm)
Time Delay: 3-30 Seconds
Operation: Selectable Fail Safe/Fail Secure
Motion Sensing Modes: Momentary, Momentary with Alarm, Maintained
Relay Operating Modes: Event
Input: REX, Door Contact

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
