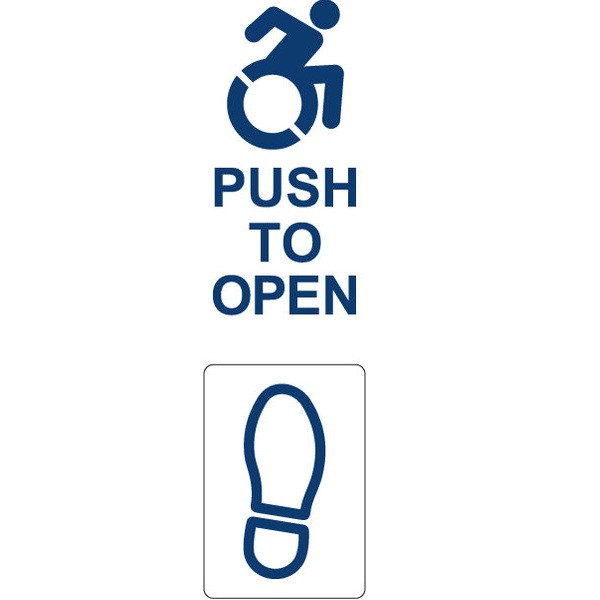

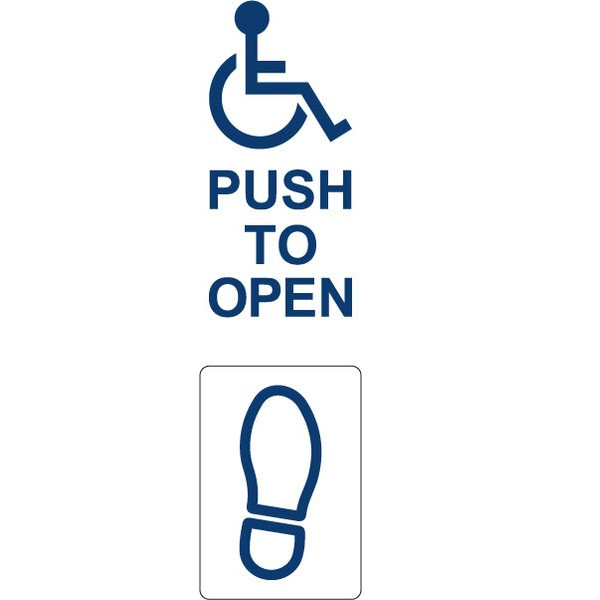

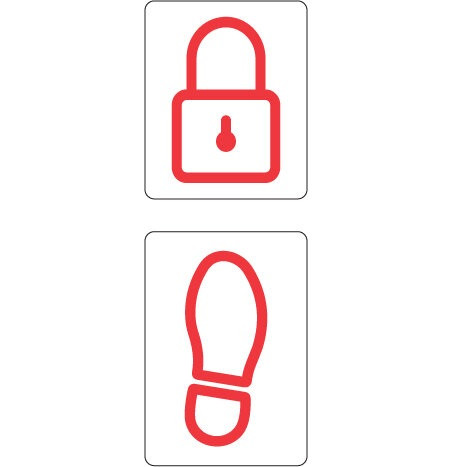

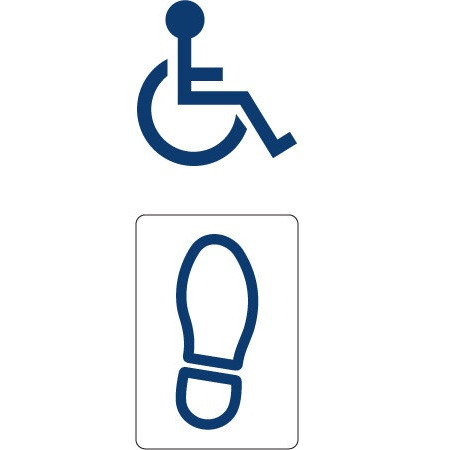

Details: Camden Door Control CM-7536 36" Long Push Plate Column Wired Manual Switch

Camden CM-75 Series COLUMN switches offer greater user convenience and lower installation costs by providing a single activation device in place of two high/low switches, as required by a growing number of building codes across North America.

Features

• Low profile contoured design with easy activation from side angles.
• Meets or exceeds California building code, section 1117B.6 requirements.
• (2) Fully redundant SPDT, 15 Amp. UL listed switches.
• Lazerpoint wireless compatible with provision for 'snap-in' battery powered transmitter.
• Adjustable leveling screws for easy installation on uneven walls.
• No internal wires exposed to moving parts.
• Adjustable sensor range 2" to 8" (5cm to 20cm).
• Adjustable sensor time delay (0.5 sec. to 20 sec.).
• Weather/water resistant sensor, IP65 rated.

Specifications

Voltage

N/A.

Contact Type

SPDT Momentary, Form 'C'.

Contact Rating

15 Amps 30 VDC.

Dimensions

5-7/8" W X 37-1/2" H X 1-1/2" D (150mm X 953mm X 38mm).

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• Spec Sheet
• Installation Manual
