| DESCRIPTION | CAMDEN | RUTHERFORD CONTROLS | H.E.S. | ADAMS RITE | TRINE | LOCKNETICS | NOTES |
| Cylindrical, Grade 1, Low Profile | CX-ED1079L | L65U | 5000C | N/A | N/A | CS-450-LBM | Camden includes 3 faceplates and latch monitoring as standard |
| Cylindrical, Grade 1, Standard Depth | CX-ED1079DL | S65U | 5200C | N/A | N/A | CS-750-LBM | Camden includes 3 faceplates and latch monitoring as standard |
| Cylindrical, Grade 2, Low Profile | CX-ED2079 | L65U | N/A | 7100/7101 | 4200 | CS-450 | Camden includes 3 faceplates |
| Cylindrical, Fire Rated | CX-ED1410 | F4114 | 7501 | 7270 | 4100 | N/A | Camden includes 1 faceplate (ANSI with square corners) as standard |
| Pre-Load Cylindrical | CX-EPD2000 Series | N/A | 7000C | N/A | N/A | ||
| Rim Strike, Surface Mount | CX-ED1259L | 0563 | 9600 | 74R1 | N/A | RS-200-F or RS-300-F | Security and fire rated |
| "All in One" Strike, Fire Rated | CX-ED1579L | F2164 | 1006CLB | N/A | 4800F | MS-100-F | Camden includes latch monitoring as standard |
| Glass Door Strikes | CX-EL0900 Series | N/A | N/A | N/A | N/A |
- GSA Contract
- GS-07F-0249Y
- GSA Contract
- GS-07F-0326T
- Cage Code
- 40786
- DUNS
- 00-194-9684
Email sales@fbisecurity.com
Phone (215) 627-3205
Reduced price!

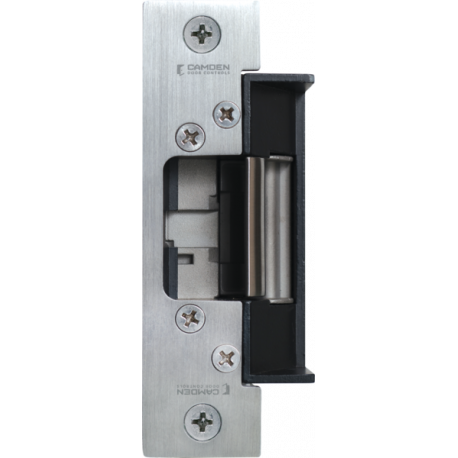

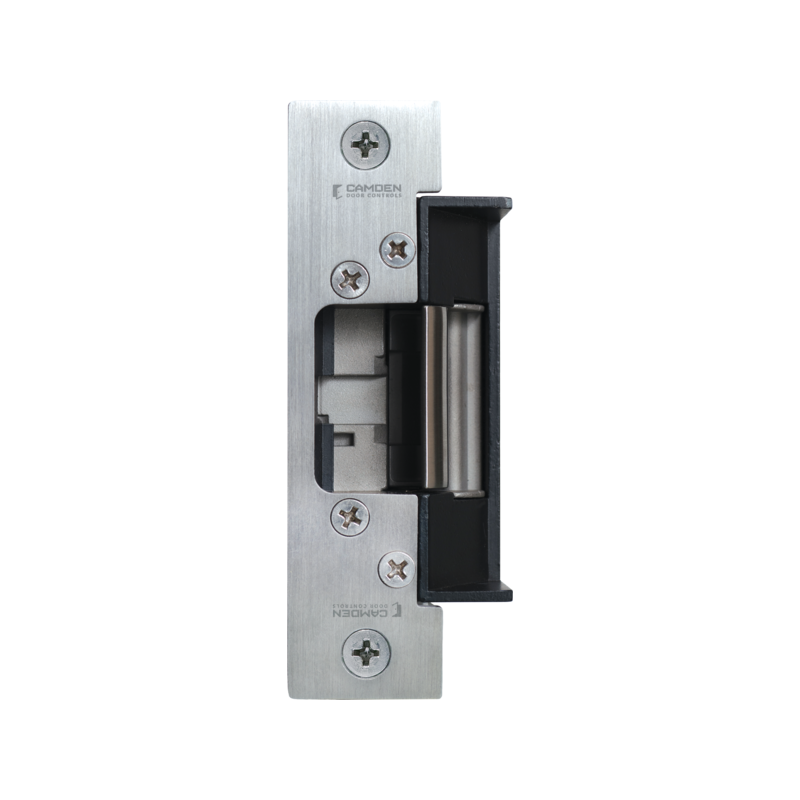

Camden Door Control CX-ED1410 ANSI Grade 1 Fire Rated Electric Strike
Details: Camden Door Control CX-ED1410 ANSI Grade 1 Fire Rated Electric Strike
Camden CX-ED1410 Grade 1 'ANSI' electric strike for UL fire rated doors/ frames with cylindrical locksets, offers the very best electric strike quality and performance. This fire rated strike is designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation, over many years of trouble-free service.
Features
- Centerline latch entry for cylindrical locksets, with ANSI square faceplate.
- UL/ULC 90 minute fire rated, UL 1034 Burglary listed.
- 5/8" to 3/4" latch projection (throw).
- Selectable 12/24V AC/DC.
- Selectable fail safe/fail secure. Fire rating voided in fail safe mode.
- Continuous duty operation.
- Non-handed.
Specifications
- Voltage
- 12 or 24V AC/DC.
- Current Draw
- 260mA 12VDC, 150mA 24VDC.
- Static Strength
- 1,500 Lbs.
- Dynamic Strength
- 70 Ft-Lbs.
- Endurance
- 1,000,000 cycles (factory tested), 250,00 cycles (UL verified).
- Mode
- Selectable fail safe/fail secure.
- Operation
- AC - Buzz, DC- Silent.
- Duty
- Continuous.
- Dimensions
- 3-3/8" H X 1-7/8" W X 1-3/8" D (86mm X 47mm X 35mm).
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
