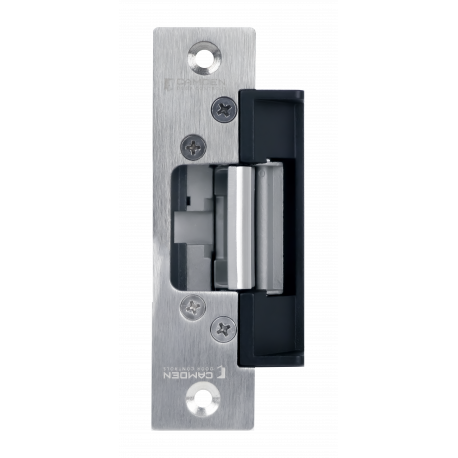

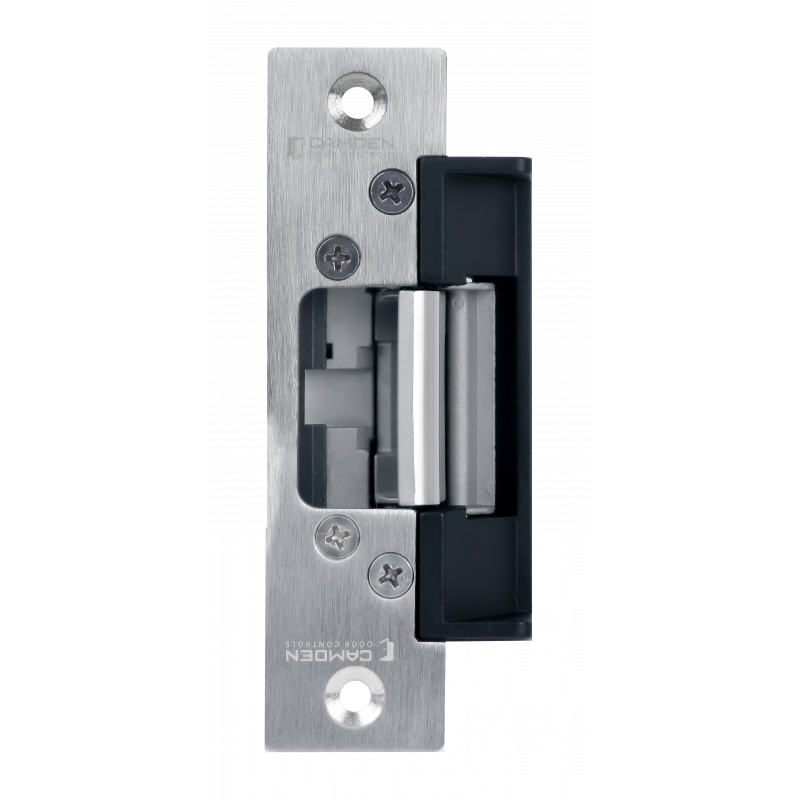

Details: Camden Door Control CX-ED1420 ANSI Grade 1 Low Profile Fire Rated Electric Strike

Camden CX-ED1420 low profile Grade 1 ANSI fire rated strikes are designed to provide affordable code compliance to UL fire rated doors/frames with cylindrical locksets. These fire rated strikes are designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.

Features

• Centerline latch entry, for cylindrical locksets
• UL 90 minute fire and UL 1034 burglary listed
• CX-ED1420: 1/2" - 5/8" (12mm - 16mm) latch projection
• Dual voltage 12/24V AC/DC
• ANSI square faceplate included, 4-7/8" × 1-1/4" (124mm × 32mm)
• Field selectable fail safe / fail secure operation
• Trim plate included
• 5 year warranty

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Specifications

Voltage

12 or 24V AC/DC

Current Draw

260 mA @ 12 VDC, 150 mA @ 24 VDC

Static Hold Force

1,500 Lbs

Dynamic Strength

70 Ft-Lbs

Endurance

1,000,000 cycles (factory tested), 250,00 cycles (UL verified)

Fire Rating

90 minutes (UL verified)

Operation: AC

Buzz, DC- Silent

Latch Projection CX-ED1420: 1/2"

5/8" (12mm

Mode

Field selectable fail safe / fail secure (Fire rated in fail secure mode only)

Duty

Continuous

Dimensions CX-ED1420

3-3/8" L × 1-7/8" W × 1-3/16" D (86mm × 47mm × 31mm)

Downloads

• Installation Manual
• Spec sheet

Camden Door Controls Warranty
