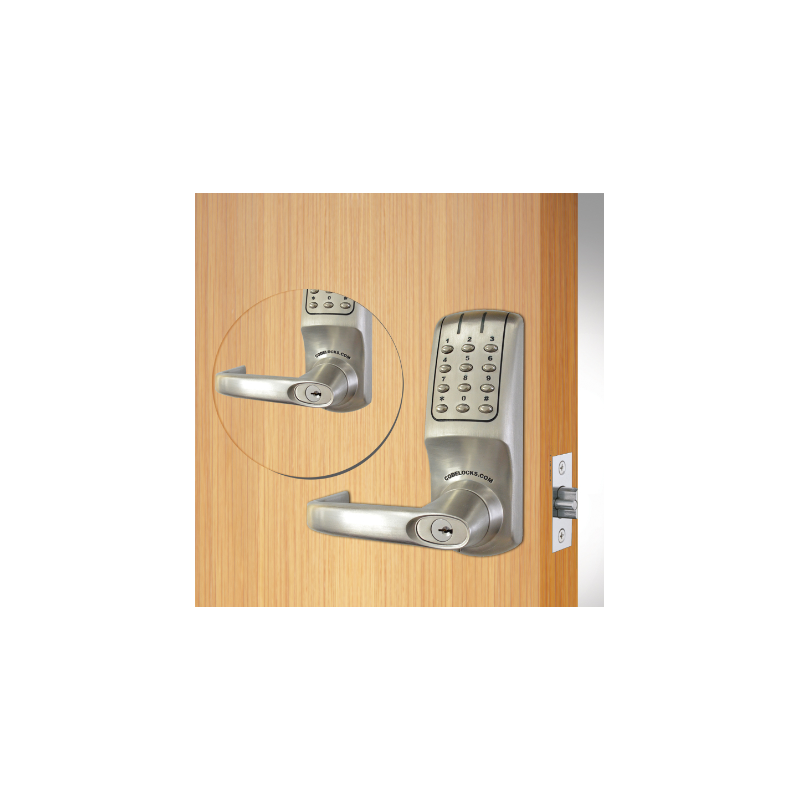

Details: Codelocks CL5000 Series Heavy Duty Electronic Tubular Latchbolt, Back to Back

A heavy duty electronic tubular mortise latch back to back providing coded access in both directions. Independent keypad plates on both sides to provide coded access in both directions.

Key Features

• Mortise latch back to back
• 3-hour UL 10C certification
• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• PVD low maintenence finish
• Brushed Steel finish
• Over 200,000 operations from 4 × AA cells (provided)
• Tamper time out and low battery warning
• Connections for remote release by reception desk button
• Alarm release included
• Code Free entry
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Specifications

Buttons

3 × 4

Code Change Method

Keypad (On Door)

Codes

User Codes 4, 5 or 6 digits long

Door Thickness

1 3⁄8" - 2 3⁄8" (35mm - 60mm)

Finish

Brushed Steel

Handed

Non Handed - Locks will fit doors hung on the left or right

Keyed Alike

Available

Keypad

Individual stainless steel buttons

Latch Type

Tubular Latchbolt

Lock Material

Zinc Alloy

Low Battery Warning

Red LED will flash on opening to indicate low battery

Memory

Stores up to 80 User Codes

Operations

Up to 200,000 per set of 8 × AAA batteries

Orientation

Vertical

Power

4x AA

Spindle

Two part 5⁄16" (8mm) spring loaded spindle

Suitable For

Internal, External

User Types

Code

Downloads

• Installation Instructions
• Programming and Operating Instructions
• Installation Template
• CL5000 Brochure
• CL5000 Documentation
• Fire Rated Data Sheet
