DON JO 514-CW Wrap Around
> >>>>DON JO 514-CW Wrap Around
Reduced price! DON JO 514-CW Wrap Around

Don-Jo Mfg., Inc.

DON JO 514-CW Wrap Around

$86.55

?

Details: DON JO 514-CW Wrap Around

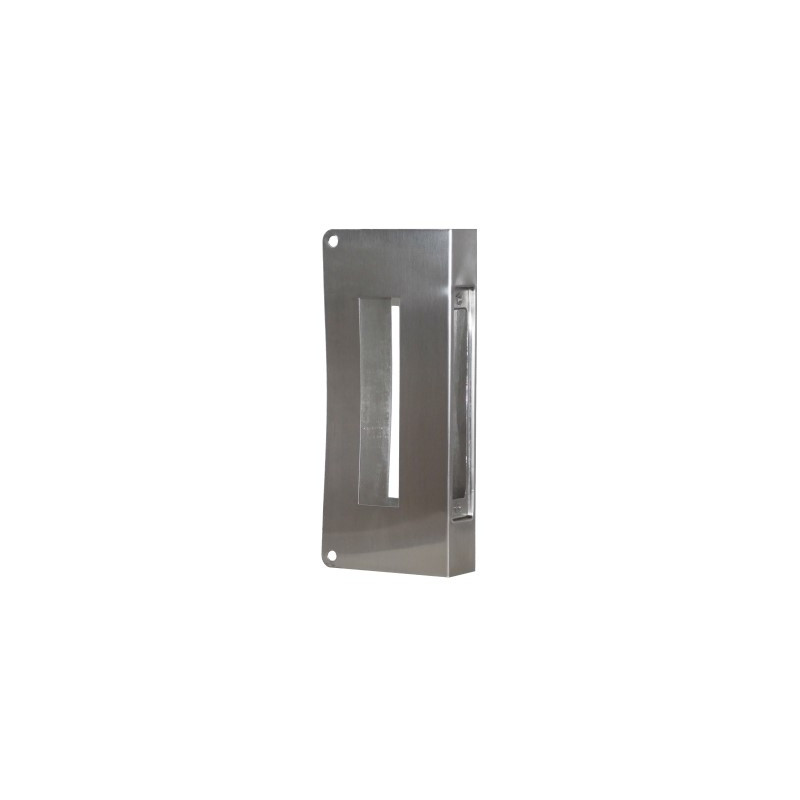

Mortise Lock Wrap Around Plate for 86 cut out DON JO Item Number: 514-CW

Specifications

  • For mortise lock wrap-around plate for 86 cut-out
  • 8" × 1¼" recess
  • Drill spindle and thumb turn holes in field
  • Rectangle size: 1⅝" × 7-5⁄16"
  • Dimensions: 5" × 12"
  • Backset: 2¾"
  • Door: 1¾"

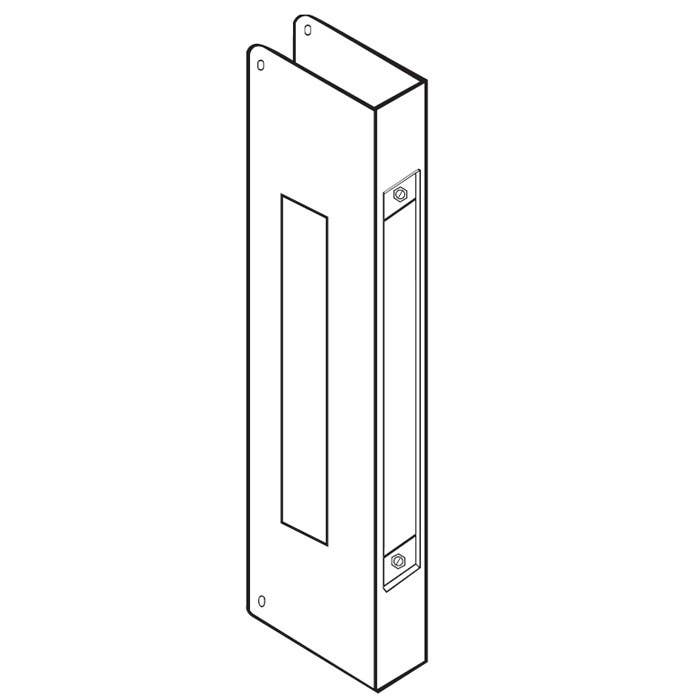

Don-Jo 514-Cw Template

Available Model Numbers and Combinations

Model/SKU Attributes
514-10B-CW Dark Oxidized Satin Bronze
514-PB-CW Polished Brass
514-S-CW Satin Stainless Steel
514-BZ-CW Satin Bronze
