> >>>Falcon T Series Strike
Reduced price! Falcon T-Series Strikes Sold Seperately

Falcon Locks

Previous Next

Falcon T Series Strike

$19.00

? ?

Details: Falcon T Series Strike

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple.

The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

Features

Security

  • Pressure Release lever rotation standard prevents the damage to internal lock components when subjected to excessive force
  • Heavy-duty compression springs behind the rose provide consistent lever return and prevent lever sag
  • Inside levers are attached by Allen-head set screw, which prevents tampering or vandalism

Reliability

  • Trim is through-bolted with two 10-32 screws coated with thread sealant
  • Certified Grade 1 and UL10C 3-hour A label
  • Lever designs exceed ADA and state disability requirements

Compatibility

  • Adjustable door thickness from 1-3/4" to 2-1/8" to fit all common door thicknesses
  • Non-handed design
  • Does not require field disassembly for re-handing
  • Fits most competitors' conventional key systems, small format interchangeable cores (SFIC), and Schlage full size interchangeable cores (FSIC)

Finishes

  • Bright Brass
  • Satin Brass
  • Satin Bronze
  • Oil Rubbed Bronze
  • Aged Bronze
  • Satin Nickel
  • Matte Black
  • Bright Chrome
  • Satin Stainless Steel

Designs

  • Levers are available in 7 different styles to complement modern designs
  • Additional options, such as abrasive coating and lead lining, are available on all T Series levers to cover various application requirements
  • Levers are solid pressure cast zinc finished to match mating parts
  • Roses are wrought brass or bronze installed over steel through-bolted rose inserts
  • All levers are available with abrasive coating along the length of the lever to identify entrances of hazardous areas to the handicapped

Specifications

Certifications
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1. UL: 3 hour A label and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.

Downloads

Falcon Lock Comparison

Features Application Options
T Series
Cylindrical
  • Grade 1 certified
  • Wide variety of functions and options
  • Can accept competitive standard cylinders SFIC and FSIC
  • Ideal for new construction and retrofit applications where Grade 1 security is needed
  • 15 commercial functions
  • 8 finishes
  • 7 lever designs
K Series
  • Grade 1 certified
  • Most common functions, lever styles and finishes
  • Affordable price
  • Where Grade 1 security and reliability are needed, but cost is a concern
  • 8 commercial functions
  • 2 finishes
  • 3 lever designs
X Series
  • Grade 1 certified
  • Corrosion resistant option
  • Compatible with competitive SFIC
  • Where a Grade 1 security lock is needed and corrosive marine conditions could be a concern
  • 10 commercial functions
  • 6 finishes
  • 3 knob designs
  • 2 rose options
B Series
  • Grade 2 certified
  • Perfect replacement for existing locks or new construction
  • Compatible with competitive SFIC
  • Where frequent use is expected and durability is needed, but Grade 1 security is not required
  • 10 commercial functions
  • 5 finishes
  • 2 lever designs
W Series
  • Grade 2 certified
  • Two rose diameter options to match most commerical door trim
  • Applications with nontraditional door trim where cost is a concern
  • 12 commercial lever functions
  • 8 commercial knob functions
  • 8 finishes
  • 7 lever/2 knob designs
  • 2 rose options
D100 Series
Deadbolt
  • Grade 1 certified for security
  • Supplemental protection against break-in
  • Compatible with competitive SFIC
  • Where supplemental Grade 1 security is required
  • 5 commercial functions
  • 5 finishes
D200 Series
  • Grade 2 certified for security
  • Supplemental protection against break-in
  • Compatible with competitive SFIC
  • Where supplemental, Grade 2 security is required
  • 8 commercial functions
  • 5 finishes
RU Series
Unit
  • Grade 1 certified
  • Old-fashioned style with modern strength, security and convenience
  • Compatible with competitive SFIC
  • Retrofitting older and historical buildings where Grade 1 security is required
  • 12 commercial functions
  • 2 finishes
  • 2 lever designs
MA Series
Mortise
  • Grade 1 certified
  • One of Falcon's toughest locks that is built to stand up to constant use without fail
  • Compatible with competitive SFIC
  • Where a tough-as-nails, reliable and durable Grade 1 security lock is required
  • Facilities where a large variety of applications are needed
  • 26 commerical functions
  • 9 finishes
  • 8 lever designs
  • 1 knob design
  • Rose (sectional) and escutcheon option
H2 Series
Interconnected
  • Grade 2 certified
  • Large inner plate that connects lock and deadbolt
  • Exterior has the appearance of a tubular lock and deadbolt
  • Where strength and security are required, but cost is a concern
  • Used in multi-family applications for one step egress
  • 2 commercial functions
  • 5 finishes
  • 5 lever design

Available Model Numbers and Combinations

Model/SKU Attributes
005164-000 ANSI, 1-1/4" x 4-7/8" standard
A05185-000 Square Corner, T-strike, 1-1/8" x 2-3/4"

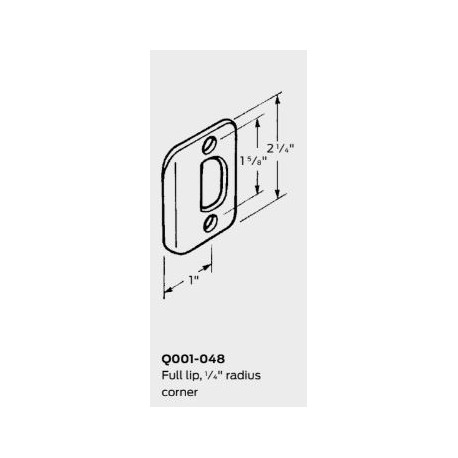

Q001-048 1/4" Radius round corner, full lip 1-5/8" x 2-1/4"
Q001-049 Square corner, full lip 1-5/8" x 2-1/4"
005099-000-30
005161-000 ANSI 1-1/4" x 4-7/8"
A05185-004 Radius T Strike, 1-1/8" x 2-3/4"
