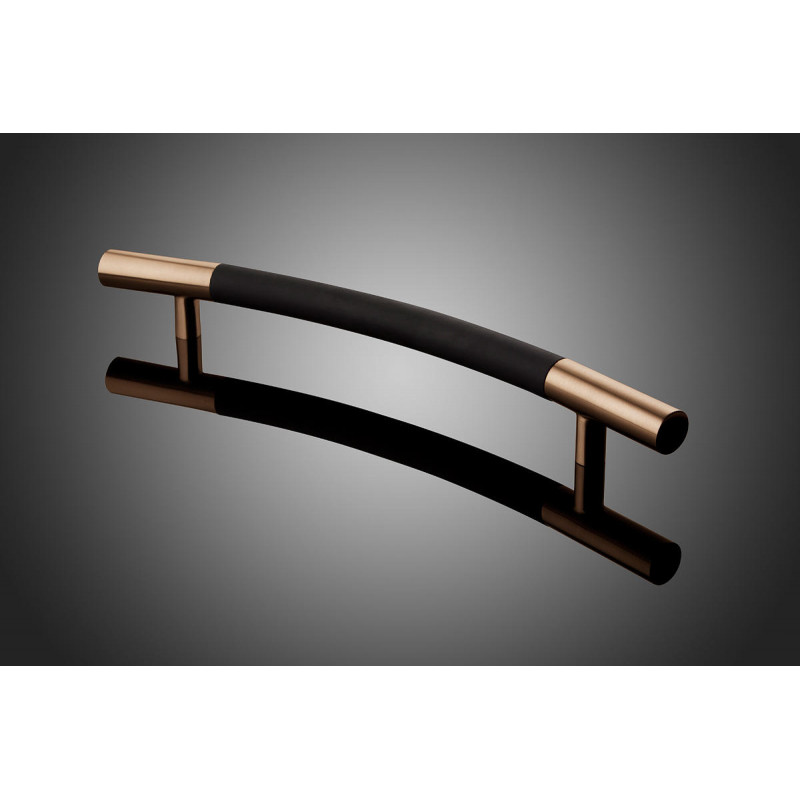

Details: Forms+Surfaces Sextant Series 1200 Configurable Door Pull with Arc Grip

Sextant Door Pulls offer a high-design, low-cost alternative to tubular door pulls.

Features

Refer to the Product Product Data Sheet below for design, size, material and finish options
Pulls consist of two basic elements: grips and finials
Grips are available in two diameters and straight and curved versions
Finials are available in multiple shapes and styles
Material options include stainless steel, bronze and black Santoprene elastomer
Grips, finials, materials and finishes can be combined in countless ways to create custom-looking door pull designs
Variable door pull lengths adapt to different door heights
Suitable for interior or exterior use
Compatible with Forms+Surfaces doors or for use as a handrail in our CabForms and LEVELe elevator interiors

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Forms-Surfaces Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
SXT910316US32+(2x)SXT910323SSSSXT910324US32DB5DT1001SSS(x2)	Polished Stainless Steel, SXT910323 Taper Finial - Stainless Steel, Stippled Stainless Steel, Intermediate Tee (US32D - Satin Stainless Steel), B5 - Concealed single mount on wood door with threaded insert and Rota-Lok., End Cap (SSS - Stippled Stainless Steel), Second End Cap (Matching Finish)
SXT910316SBR+(2x)SXT910320US10SXT910324US32DB7DT1001US10	Stippled Bronze, SXT910320 Bullet Finial - Bronze, Satin Bronze, Intermediate Tee (US32D - Satin Stainless Steel), B7 - Concealed single mount on aluminum frame door with RotaLok and customer's reinforcement., End Cap (US10 - Satin Bronze), None
SXT910316US10+(2x)SXT910321US32SXT910324SSSB4DT1001SBR	Satin Bronze, SXT910321 Column Finial - Stainless Steel, Polished Stainless Steel, Intermediate Tee (SSS - Stippled Stainless Steel), B4 - Single mount on wood or metal door with through bolt., End Cap (SBR - Stippled Bronze), None
SXT910316US32D+(2x)SXT910320US32DSXT910324US32B1DT1001US32D(x2)	Satin Stainless Steel, SXT910320 Bullet Finial - Stainless Steel, Satin Stainless Steel, Intermediate Tee (US32 - Polished Stainless Steel), B1 - Back-to-back mount on wood or metal door with Rota-Lok., End Cap (US32D - Satin Stainless Steel), Second End Cap (Matching Finish)
SXT910316US9+(2x)SXT910320US32SXT910324US32DB2	Polished Bronze, SXT910320 Bullet Finial - Stainless Steel, Polished Stainless Steel, Intermediate Tee (US32D - Satin Stainless Steel), B2 - Single mount on glass door with end cap purchased separately., None, None
SXT910316US9+(2x)SXT910320US10SXT910324SSSB4DT1001US10B	Polished Bronze, SXT910320 Bullet Finial - Bronze, Satin Bronze, Intermediate Tee (SSS - Stippled Stainless Steel), B4 - Single mount on wood or metal door with through bolt., End Cap (US10B - Oil-Rubbed Bronze), None
SXT910316BLACK+(2x)SXT910322US10BSXT910324SSSB5DT1001SBR	Black Santoprene, SXT910322 Cylinder Finial - Bronze, Oil-Rubbed Bronze, Intermediate Tee (SSS - Stippled Stainless Steel), B5 - Concealed single mount on wood door with threaded insert and Rota-Lok., End Cap (SBR - Stippled Bronze), None
SXT910316US10+(2x)SXT910321US32SXT910324US9B1DT1001US10	Satin Bronze, SXT910321 Column Finial - Stainless Steel, Polished Stainless Steel, Intermediate Tee (US9 - Polished Bronze), B1 - Back-to-back mount on wood or metal door with Rota-Lok., End Cap (US10 - Satin Bronze), None
SXT910316US9+(2x)SXT910322US90B7DT1001US9(x2)	Polished Bronze, SXT910322 Cylinder Finial - Bronze, Polished Bronze, Internal Tenon, B7 - Concealed single mount on aluminum frame door with RotaLok and customer's reinforcement., End Cap (US9 - Polished Bronze), Second End Cap (Matching Finish)
SXT910316SBR+(2x)SXT910323SBRSXT910324US32DB6DT1001SBR	Stippled Bronze, SXT910323 Taper Finial - Bronze, Stippled Bronze, Intermediate Tee (US32D - Satin Stainless Steel), B6 - "L" Configuration: Adapt one end of each pull for back-to-back mounting with Rota-Lok., End Cap (SBR - Stippled Bronze), None
SXT910316BLACK+(2x)SXT910321SSSSXT910324SSSB1DT1001US10B	Black Santoprene, SXT910321 Column Finial - Stainless Steel, Stippled Stainless Steel, Intermediate Tee (SSS - Stippled Stainless Steel), B1 - Back-to-back mount on wood or metal door with Rota-Lok., End Cap (US10B - Oil-Rubbed Bronze), None
SXT910316SSS+(2x)SXT910322US32DSXT910324US9B1DT1001US10(x2)	Stippled Stainless Steel, SXT910322 Cylinder Finial - Stainless Steel, Satin Stainless Steel, Intermediate Tee (US9 - Polished Bronze), B1 - Back-to-back mount on wood or metal door with Rota-Lok., End Cap (US10 - Satin Bronze), Second End Cap (Matching Finish)
SXT910316SBR+(2x)SXT910320US10SXT910324US9B4DT1001SSS(x2)	Stippled Bronze, SXT910320 Bullet Finial - Bronze, Satin Bronze, Intermediate Tee (US9 - Polished Bronze), B4 - Single mount on wood or metal door with through bolt., End Cap (SSS - Stippled Stainless Steel), Second End Cap (Matching Finish)
SXT910316SSS+(2x)SXT910323US10SXT910324US32DB4DT1001SBR(x2)	Stippled Stainless Steel, SXT910323 Taper Finial - Bronze, Satin Bronze, Intermediate Tee (US32D - Satin Stainless Steel), B4 - Single mount on wood or metal door with through bolt., End Cap (SBR - Stippled Bronze), Second End Cap (Matching Finish)
SXT910316US9+(2x)SXT910321SBRSXT910324US32DB2	Polished Bronze, SXT910321 Column Finial - Bronze, Stippled Bronze, Intermediate Tee (US32D - Satin Stainless Steel), B2 - Single mount on glass door with end cap purchased separately., None, None

View All Model Numbers and Options
