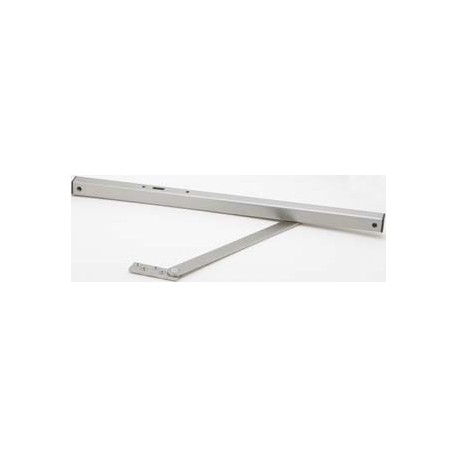

90 Series Heavy-Duty
Glynn Johnson 90 series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with sex bolts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.
These versatile units can be used in conjunction with most surface-applied door closers. The provided templates allow for variable mounting positions, ranging from 85º to 110º Hold-Open/Stop angle. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.
- Improved Compatibility with Door Closers
- Single-Acting Doors
- Interior/Exterior Applications
- Easy to Install
- Improved Corrosion Resistance
- Function Conversion Kits Available
Glynn-Johnson 90 Series door holders and stops provide long-lasting protection for doors, frames and hardware. All models incorporate a heavy-duty channel/slide-arm design and offset jamb bracket. This unique design allows for simple field modification of functions, should user requirements change.
90H Series Hold-Open
(Suffix H) Hold-Open models provide a convenient method of holding the door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow through the opening. The Hold-Open function can easily be turned on or off by simply rotating the serrated knob on the bottom of the channel. This knob engages the Hold-Open mechanism, allowing the door to be held open at a predetermined position ranging from 85º to 110º. When the knob is flipped over, it acts as a stop and shock absorber.
The tension on the Hold-Open mechanism can be adjusted using a phillips screwdriver to offset air currents or other exterior conditions. The Hold-Open tension adjustment is located on the top of the slider in the channel.
90S Series Stop-Only
(Suffix S) When the Hold-Open function is not a requirement, Stop-Only models provide a reliable method of door control. Stop-Only models provide the same shock-absorbing capability as Hold-Open models. The Stop-Only model may be used on fire doors.
90F Series Friction Hold-Open
(Suffix F) Friction Hold-Open models are ideal for patient room doors, wardrobe and closet doors or similar applications where multiple Hold-Open positions are desired. The friction tension can be adjusted through the top of the channel using an allen wrench. The friction tension adjustment is located on the top of the slider in the channel.
90Se Series Special Stop-Only
(Suffix SE) When Stop-Only models are used in conjunction with single-point, Hold-Only electronic door closers, the Stop-Only function may be ordered without the shock-absorbing mechanism. Used as an auxiliary stop, these models prolong the life of the closer. The stop location is adjusted using an allen wrench on the stop block located in the channel.
Suffix J (Angle Jamb Bracket):
An angle jamb bracket is available for converting standard models to hinge-side or flush transom mounting. The angle jamb bracket affixes to the standard jamb bracket. If ordered with the unit add suffix J. If needed separately order 90J by finish needed.
Suffix Soc (Pin-In-Socket Security Screws):
A screw package with pin-in-socket screws for mounting the door bracket and the jamb bracket is provided instead of the standard screw package.
Suffix Shim (Blade Stop Shims):
- Shim kits are available in 3 sizes
- 90 SHIM1 is a¼" Shim Kit
- 90 SHIM2 is a½" Shim Kit
- 90 SHIM3 is a¾" Shim Kit
- If ordered with overhead, add suffix SHIM (1, 2 or 3). If needed separately order 90 SHIM (1, 2 or 3)-Finish.
- Each model is available in five sizes
Materials And Finishes:
In 300 series Stainless Steel, Brass and Steel substrates, these models are available in the largest selection of finishes in the industry. Stainless Steel models offer the highest resistance to corrosion. Available in the following finishes:
- US3 Polished Brass
- US4 Satin Brass
- US10 Satin Bronze
- US10B Oil Rubbed Bronze
- US32 Polished Stainless Steel
- US32D Satin Stainless Steel
- SP4 Powder Coat Brass
- SP10 Powder Coat Bronze
- SP28 Powder Coat Aluminum
- SP313 Powder Coat Dark Bronze
- SPBLK Powder Coat Black
- 652 Chrome-like Coating
Known throughout the industry as the "overhead door holder specialist," Glynn-Johnson has made its name with state-of-the-art manufacturing and technology. Delivering both superior quality and exceptional performance, Glynn-Johnson products are offered in a wide variety of popular finishes and configurations providing the flexibility needed to meet the most demanding door control applications.
Glynn Johnson recognizes that the best door control device is one that functions overhead. Commercial doors are much too heavy for door hinges, making the Glynn-Johnson 90 Series Heavy-Duty Surface Overhead Holders & Stops jamb and arm design the best solution for a company looking to secure their doors. Furthermore the overhead holder is out of the way, unlike floor or wall-mounted stops which are a tripping hazard and are open to accidents and easy vandalism.
