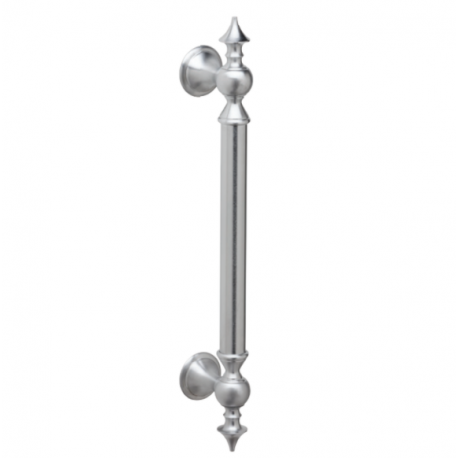

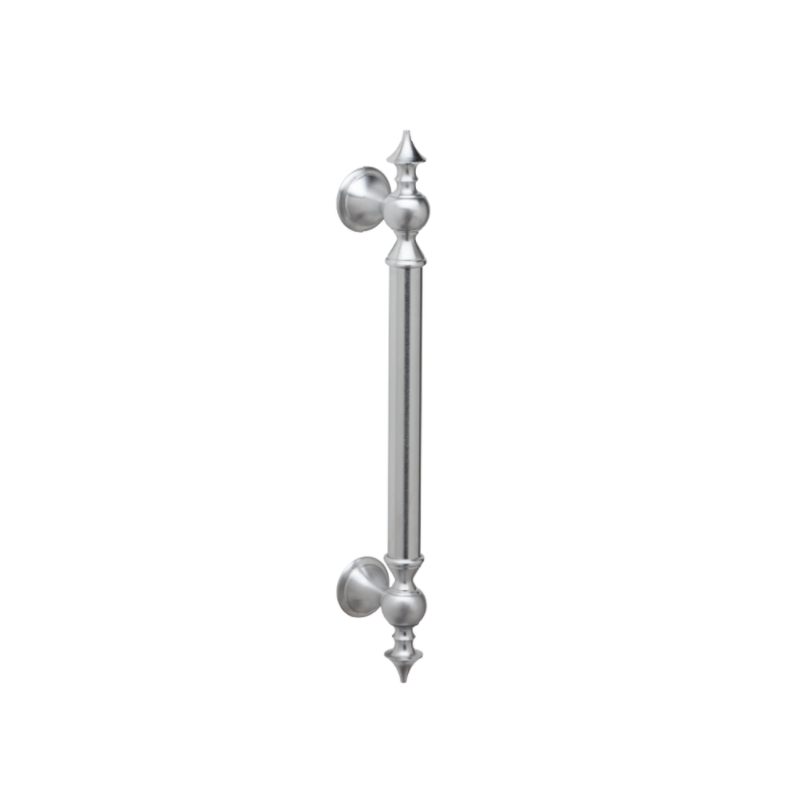

Ives 8373 Brookshire Decorative Acorn Tip Straight Pull, 1" Diameter
Details: Ives 8373 Brookshire Decorative Acorn Tip Straight Pull, 1" Diameter
Features
- 1" Round pull with 2" base mounting posts
- Available sizes: 12", 18", 24"
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Mounting
- Heavy duty mounting hardware exceeds industry standards
- 5/16-18 mounting hardware
- Comes standard with thru-bolt screws and decorative washers.
- Optional mounting hardware available F, I, J, L, O, P
- Specify door thickness. Standard mounting hardware for door thickness of 1-1/2" to 1-3/4" unless otherwise specified. Accessory package available for 2" and 2-1/4" thick doors.
| Product number | Projection "A" | Clearance | Center to center "B" | Overall length "C" |
|---|---|---|---|---|
| 8372-2 | 3" | 1-7/8" | 12" | 16-5/16" |
| 8372-18 | 3" | 1-7/8" | 18" | 22-5/16" |
| 8372-24 | 3" | 1-7/8" | 24" | 28-5/16" |
Finishes
- Standard finishes available
- 605, 613, 619, 625, 626, 643e/716, BLK
Specifications
- Certifications
- Meets ANSI A156.06
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 837318 605L | 1-1/2" to 1-3/4" |
| 837318 613 | Oxidized Satin Bronze, 1-1/2" to 1-3/4" |
| 837318 613F | Oxidized Satin Bronze, 1-1/2" to 1-3/4" |
| 837318 613I | Oxidized Satin Bronze, 1-1/2" to 1-3/4" |
| 837318 613J | Oxidized Satin Bronze, 1-1/2" to 1-3/4" |
| 837318 613L | Oxidized Satin Bronze, 1-1/2" to 1-3/4" |
| 837318 619 | Satin Nickel, 1-1/2" to 1-3/4" |
| 837318 619F | Satin Nickel, 1-1/2" to 1-3/4" |
| 837318 619I | Satin Nickel, 1-1/2" to 1-3/4" |
| 837318 619J | Satin Nickel, 1-1/2" to 1-3/4" |
| 837318 619L | Satin Nickel, 1-1/2" to 1-3/4" |
| 837318 625 | Bright Chrome, 1-1/2" to 1-3/4" |
| 837318 625F | Bright Chrome, 1-1/2" to 1-3/4" |
| 837318 625I | Bright Chrome, 1-1/2" to 1-3/4" |
| 837318 625J | Bright Chrome, 1-1/2" to 1-3/4" |
