Reduced price!

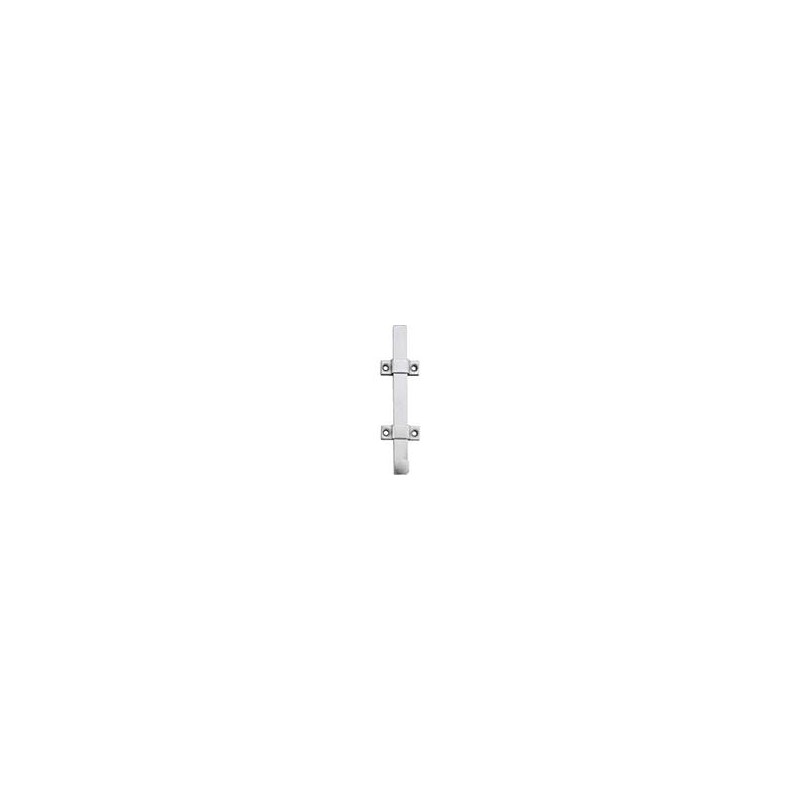

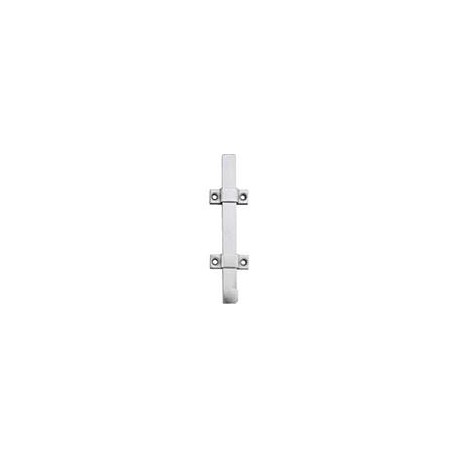

Ives SB453 Surface Bolt Steel, UL Listed
SB453
Details: Ives SB453 Surface Bolt Steel, UL Listed
Features
- Surface Bolt has 1-3/16" throw for maximum security
- Strong tension springs prevent creep
- Ideal for all types of doors
- Available 8" and 12" lengths
- Units packed with standard screws for added security
- Units packed with both a universal top strike (US) and a mortise bottom strike (MS)
- Constructed of heavy duty steel
- Optional Sex Bolts available
- Optional Thru Bolts available
Specifications
- Bar
- 3/4" Wide x 1/4" Thick
- Overall Width
- 2-1/32"
- Overall Projection
- 1-5/16"
- Top Strike
- 1-1/2" Wide x 1-1/2" Long x 3/16" Thick
- Bottom Strike
- 1-5/8" Wide x 3-1/2" Long x 1/8" Thick
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| SB453US2C-8-TB | Zinc Plated, 8" |
| SB453US3-8-TB | Bright Brass, 8" |
| SB453US4-8-TB | Satin Brass, 8" |
| SB453US10-8-TB | Satin Bronze, 8" |
| SB453US10B-8-TB | 8", Oxidized Satin Bronze |
| SB453US15-8-TB | Satin Nickel, 8" |
| SB453US26D-8-TB | Satin Chrome, 8" |
| SB453643E/716-8-TB | 8", Aged Bronze, Blackened, Edge Relieved |
| SB453US2C-12-TB | 12", Zinc Plated |
| SB453US10-12-TB | Satin Bronze, 12" |
| SB453US10B-12-TB | 12", Oxidized Satin Bronze |
| SB453US15-12-TB | 12", Satin Nickel |
| SB453US26D-12-TB | Satin Chrome, 12" |
| SB453643E/716-12-TB | 12", Aged Bronze, Blackened, Edge Relieved |
| SB453BLK-12-TB | 12", |
