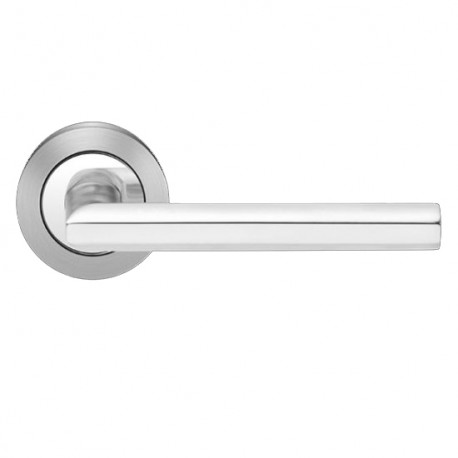

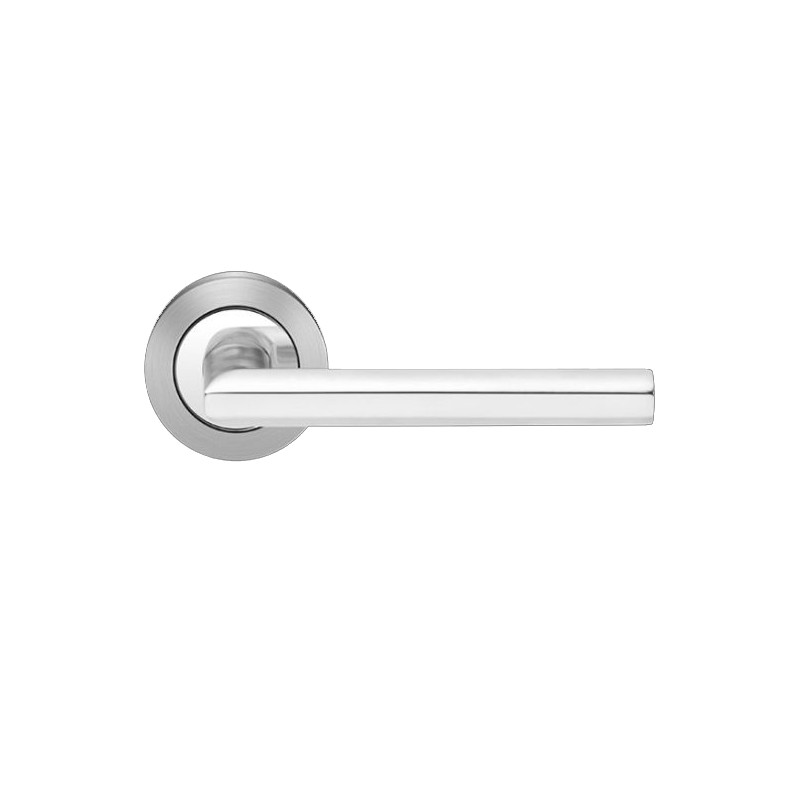

Details: ERQ43 PZ 'Porto' Lever/Lever Trim For European Mortise Locks (Mamo, Gemo), Satin Stainless Steel

Features

• 3 piece rose
• Concealed bolt-through fixing
• Door range 1 1/2" (38 mm) - 1 7/8" (48 mm) standard
• T- and Lip-Strike with dust box
• Stainless steel faceplate
• Backsets is 2 3/8" (60 mm) or 2 3/4" (70 mm)
• Functions are Passage (LA), full dummy (DUM), dummy left (DUML), dummy right (DUMR)
• Available with UL-Latch
• 28 degree latch with stainless steel faceplate
• Rate of satin stainless steel 304
• Hub 5/16" (8 mm)

Specifications

Color

Polished/satin stainless steel

Rose type

Round rose, Square rose, Plan design round rose, Plan design square rose

Variations

LA - passage, PRI 9139 - accurate privacy without cylinder, DUM - full dummy set, DUML - half dummy left, DUMR - half dummy right, STORE 9159 - accurate storeroom/nitelatch, ENT 9167 - accurate entrance set without cylinder, ENT 9169 - accurate entrance set without cylinder, CC - cylinder collar, TT - thumbturn, BAD - privacy thumbturn, PB - privacy bolt

Diameter of lever

11/16 x 13/16 " (17 x 20 mm)

Material

Stainless steel

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

Porto TER43-73 Tear Sheet
