> >>>>KCD Shaker Oven Cabinet Overlay Panel 33" W x 53" H x 0.75" D
Reduced price! kcd/pdf/OP3333.png

Kitchen Cabinet Distributors

KCD Shaker Oven Cabinet Overlay Panel 33" W x 53" H x 0.75" D

$144.91

Details: KCD Shaker Oven Cabinet Overlay Panel 33" W x 53" H x 0.75" D

Premier Series

With the highest quality materials and finest attention to detail, our Premier Series offers distinctive touches and superb craftsmanship. Whether you love traditional or modern design, the Premier Series has a look to fit your lifestyle. Features include full overlay doors, plywood boxes, a solid wood dovetail drawer box, as well as a 5 piece drawer head and soft close doors and drawers.

Specification

Cabinet Box
1/2", 7 Ply, Plywood
Drawer Box
5/8" Solid Wood Dovetailed
Drawer Slides
Under Mount, Full Extension, Metal, Soft Close with Ball Bearings
Wood Species
Birch
Door Hinge
DTC 6 Way Adjustable, Soft Close
Shelves
Adjustable, 3/4" Plywood
Finish Color
Designer White, Espresso Stain
Interior Finish
Natural
Glazing
None
Base Corner Reinforcemant
3/4" Plywood Blocks or Stretchers
Face Frame
1-1/2" Rails & Stiles, Solid Wood
Full Overlay Door
5 Piece with Solid Center Panel, 2-3/4" or 3-1/2" Stiles & Rails
Drawer Head
Slab or 5 Peice with Solid Center Panel, 2-3/4" Stiles & 1-7/8" or 2-3/4" Rails
Approvals
CARB, E-1
Design & Structure
Meets Leading Industry Standards
Assembly
Glue & Staples, No Cams or Brackets
Toe Kick Depth with TK Skin
3.75"

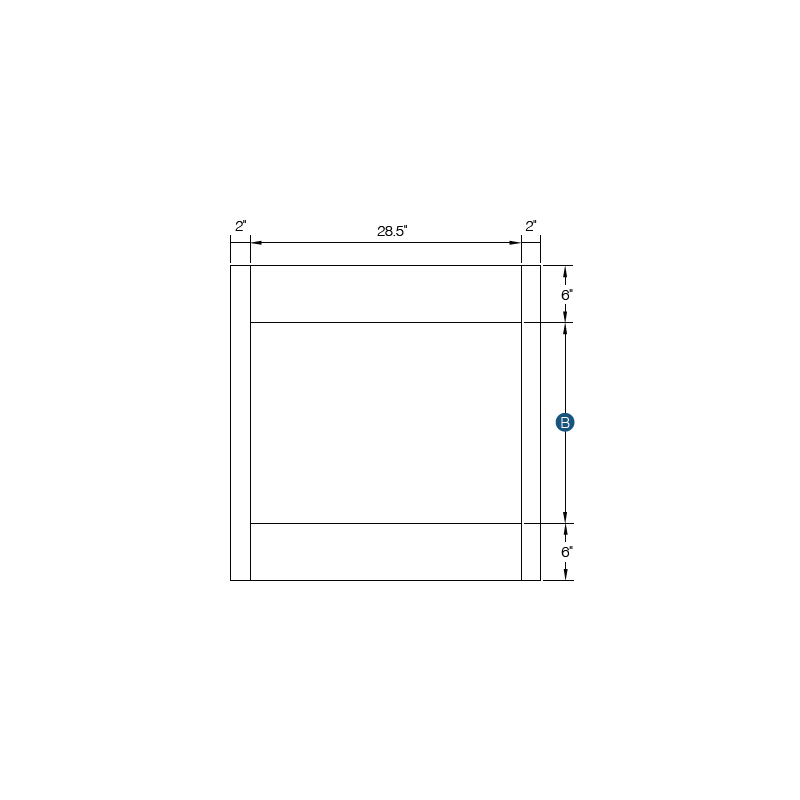

Oven Cabinet Overlay Panel

Item CodeOuter WidthOuter HeightOuter DepthOpening WidthOpening Height
OP333333"33"0.75"28.5"21"
OP334833"48"0.75"28.5"36.25"
OP335333"53"0.75"28.5"41"
OP336233"62"0.75"28.5"50.25"

Overlay shipped loose for field installation on oven cabinet Trim overlay as needed to fit oven door profile and attach to the cabinet frame

KCD Wall Cabinet Assembly

KCD Shaker Finish Samples:

Kitchen Cabinet Distributors Shaker Finish Options

Available Model Numbers and Combinations

Model/SKU Attributes
SE-OP3353 Shaker Espresso
SS-OP3353 Shaker Sand
SW(5PC)-OP3353 Shaker White (5PC)
SW(Slab)-OP3353 Shaker White (Slab)
