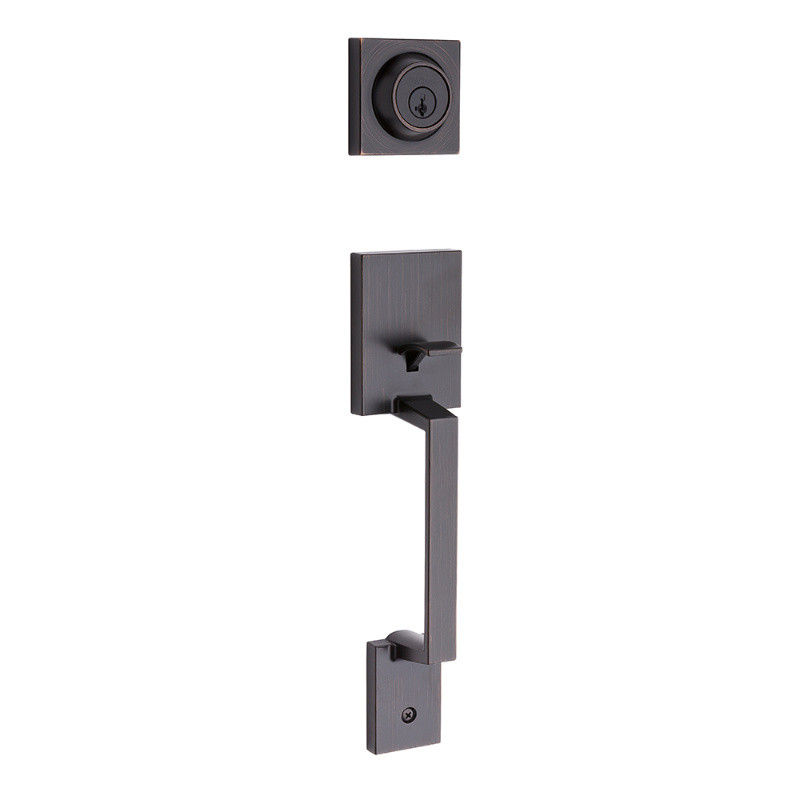

Kwikset 687AMD Amador Handleset w/ Interior Pack Trim

$189.80

?

Details: Kwikset 687AMD Amador Handleset w/ Interior Pack Trim

Amador has a refined, structural look with its simplistic modern design. Priced affordably, this handleset offers achievable style while maintaining superior security. This exterior pack can be installed with a Kwikset interior pack knob or lever to complete your preferred lock style. Handleset can be locked or unlocked by a key from the outside or with a key/turnpiece from the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.

Performance Features

  • Features adjustable latch & deadbolt to fit all standard door preparations
  • ANSI/BHMA Grade 3 Deadbolt Security
  • Featuring SmartKey® Re-key Technology. The lock you can re-key yourself in seconds
  • SmartKey® Re-key technology is compatible with Kwikset (KW1) keyway
  • SmartKey cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks
  • Lifetime mechanical and finish warranty
  • Interior pack sold separately.

Technical Specifications

ADA
n/a
ANSI Certification
A156.5
Backset
2⅜" or 2¾"
BHMA Certification
Grade 3
Center to Center
5½"
Center to Bottom
8-13⁄32"
Collection
Amador
Cylinder
SmartKey
Cross Bore
2⅛"
Door Thickness
1¾"
Edge Bore
1"
Functions Available
Single Cylinder SmartKey, Double Cylinder SmartKey, Dummy
Handle Style
Metal Grip
Mount
Sectional
Panic Proof
No
Product Class
Residential
Projection
2-5⁄32"
Style
Transitional

Kwikset's SmartKey Technology provides homeowners with the superior security that is resistant to a variety of common break-in methods. This technology also allows homeowners to re-key their locks themselves in seconds, rendering lost or un-returned keys useless.

Kwikset SmartKey Cylinder

Kwikset SmartKey

With Kwikset SmartKey you never have to worry about an intruder finding lost or stolen keys again. Utilizing SmartKey technology, you can easily and quickly re-key your locks in three easy steps. Simply insert the functioning key and turn ¼ clockwise, then insert the SmartKey learn tool and remove the functioning key. Finally, insert your new key and ½ turn it counter clockwise and just like that your security is reset. Kwikset prides themselves on creating ANSI Graded bump guard protected high security door hardware you can trust to be drill and pick resistant. Re-key your SmartKey locks as frequently as you wish while maintaining the highest level of security. Choose from our variety of knobs, levers, deadbolts, handlesets, and electronic locks to upgrade your safety and your home.

SmartKey™ provides security that is resistant against torque attacks, passes the most stringent lock picking standard UL 437, par 11.6. and utilizes BumpGuard™ to prevent lock bumping.

Features of the SmartKey

  • Bump proof and superior pick resistance
  • Secure your home in seconds – SmartKey allows you to re-key your lock in seconds, rendering lost or unreturned keys useless.
  • Advanced protection from kick attacks
  • Highest professional security ANSI/BHMA certified Grade 1

Reasons you will want to re-key

  • Lost, stolen or unreturned keys
  • Recently moved
  • Increase your home's security
  • One-key convenience for all Kwikset locks
  • Remodeling, upgrading or updating

Reasons SmartKey is Superior

Drill Resistance
The lock cylinder uses two steel balls inserted into the front of the key face to resist attack from drilling.
ANSI Grading
SmartKey is available in an ANSI Grade 1 deadbolt - certified the highest level of residential security.
BumpGuard™
Patented side locking bar technology offers improved protection against lock bumping, an attack technique used to defeat conventional pin tumbler locks.
Superior Pick-Resistance
SmartKey locks have passed the most stringent lock-picking standard, UL 437, par. 11.6.

How the Kwikset SmartKey Works

You will need to have your Functioning Key and Learn Tool for this to work.

  • Functioning Key
    Functioning Key
  • Learn Tool
    SmartKey Learn Tool
  • New Key
    New Key
  1. Re-Key Step 1
    Insert the functioning key & make a 1/4 turn clockwise.
  2. Re-Key Step 2
    Insert & remove the SmartKey learn tool, Then remove the functioning key.
  3. Re-Key Step 3
    Insert the new key & turn 1/2 turn counter-clockwise. Done. Your lock is now re-keyed!

Available Model Numbers and Combinations

Model/SKU Attributes
687AMD SMT 11PXO RCALKD Aliso Knob, Polished Brass, Non-Handed, Round Corner, T-Strike, Keyed Different
689AMD SMT 11PXTNL RCAL RCSKA Tustin Lever, Antique Brass, Left Handed, Round Corner, Standard Round Corner, Keyed Alike
898AMD 11PLIP SCAL RCS Handle Only, Non-Handed, Square Corner, Standard Round Corner,
898AMD 11PXP SCSKA Handle Only, Polo Knob, Antique Brass, Non-Handed, Square Corner, Keyed Alike
687AMD SMT 15XH RCALKD Hancock Knob, Antique Brass, Non-Handed, Round Corner, T-Strike, Keyed Different
689AMD SMT 15XA SCAL SCSKD Antique Brass, Non-Handed, Square Corner, Square Corner, Keyed Different
898AMD 15XL RFAL SCSKA Handle Only, Laurel Knob, Venetian Bronze, Non-Handed, Drive in, Square Corner, Keyed Alike
898AMD 26LIP RFAL RCS Handle Only, Non-Handed, Drive in, Standard Round Corner,
898AMD 26XDL RCAL SCSKA Handle Only, Delta Lever, Antique Brass, Non-Handed, Round Corner, Square Corner, Keyed Alike
689AMD SMT 26DXL RFAL RCSKD Laurel Knob, Venetian Bronze, Non-Handed, Drive in, Standard Round Corner, Keyed Different
687AMD SMT 514XL RCAL SCSKD Laurel Knob, Venetian Bronze, Non-Handed, Round Corner, Square Corner, Keyed Different
687AMD SMT 514XLL RFAL SCSKA Antique Brass, Left Handed, Drive in, Square Corner, Keyed Alike
898AMD 514XCV RCSKD Handle Only, Cove Knob, Antique Brass, Non-Handed, Standard Round Corner, Keyed Different
687AMD SMT 11PXH SCAL SCSKD Hancock Knob, Antique Brass, Non-Handed, Square Corner, Square Corner, Keyed Different
898AMD 11PXDL RCSKA Handle Only, Delta Lever, Antique Brass, Non-Handed, Standard Round Corner, Keyed Alike

View All Model Numbers and Options
