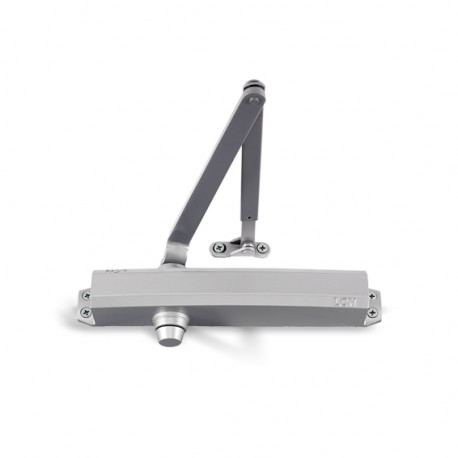

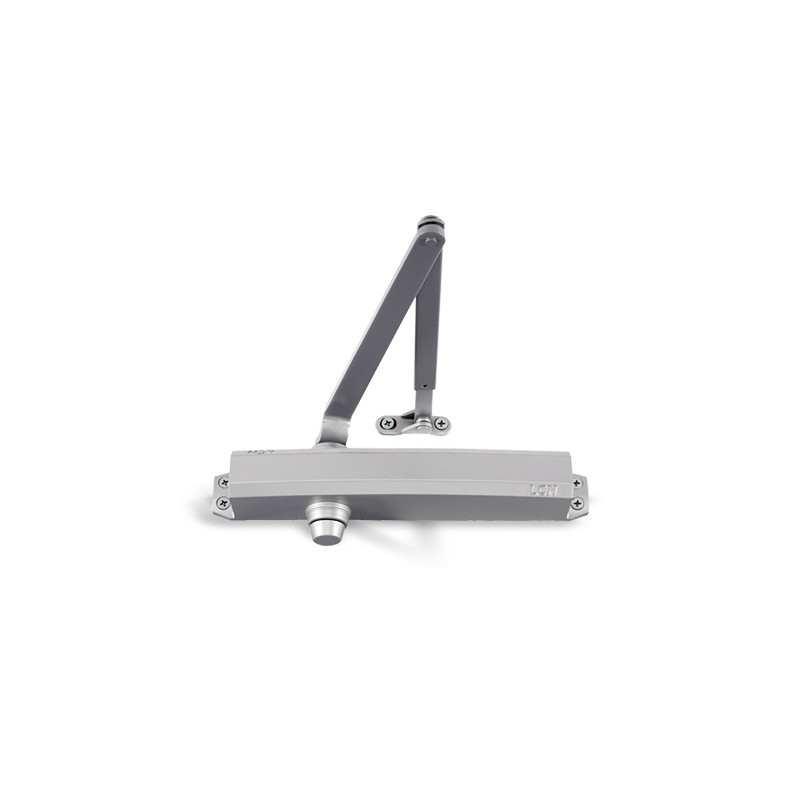

Details: LCN 1450 Series Door Closer

The patent-pending design of the 1450 Series makes it a top choice for a range of medium-duty applications: aftermarket replacement, aluminum store fronts and new construction. It is available with a standard slim line cover, optional full plastic or full metal cover, and in six available standard finishes and custom colors. It also features the industryā€™s most common hole pattern, and is ANSI/BHMA A156.4 Grade 1 certified. This results in a closer made of top LCN quality, engineering and service, all at a competitive price.

Body Construction

Cast aluminum cylinder with full-complement bearing
1-1/4ā€¯ diameter piston
Heat-treated steel pinion journal

Quality and Durability

All-weather fluid
Patent-pending design
25-year warranty

Installation

Universal non-handed
Peel-n-stick template and standard slim line plastic cover
Adjustable spring sizes 1-6

Specifications

Non-handed
Adjustable spring sizes 1-6
Meets ADA requirements
UL and cUL listed
Meets BAA (Buy American Act)
Tested and certified under ANSI/BHMA A156.4 Grade 1

Downloads

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

LCN Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
1450-EDA-622CYLDELFCPUNIV	Extra Duty Arm, Matte Black, No Handing, Delay Action Cylinder, Not Included, Universal Screws, Not Included
1450-HEDA-689RHCYLDELFCPTBTRX	Hold Open Extra Duty Arm, Aluminum, Right Handed, Delay Action Cylinder, Not Included, Through Bolt and Torx Machine Screws, Not Included
1450-SHCUSH-689CYLDELSLIMPCSRITBTRX	Spring Hold Open Cush -n- Stop Arm, Aluminum, No Handing, Delay Action Cylinder, Slim Line Plastic Cover, Special Rust Inhibitor, Through Bolt and Torx Machine Screws, Not Included
1450-SHCUSH-691CYLDELFCPSRITBTRX	Light Bronze, Spring Hold Open Cush -n- Stop Arm, No Handing, Delay Action Cylinder, Special Rust Inhibitor, Through Bolt and Torx Machine Screws, Not Included
1450-SCUSH-693CYLDELFCPSRITBTRX	Flat Black, Spring Cush -n- Stop Arm, No Handing, Delay Action Cylinder, Special Rust Inhibitor, Through Bolt and Torx Machine Screws, Not Included
1450-HWPA-696CYLDELFCPSRITBTRX	Brass, Hold Open Arm With Parallel Arm Shoe, No Handing, Delay Action Cylinder, Special Rust Inhibitor, Through Bolt and Torx Machine Screws, Not Included
1450-HEDA-696LHCYLFCPTBTRX	Brass, Hold Open Extra Duty Arm, Left Handed, Cast Aluminum Cylinder Assembly, Not Included, Through Bolt and Torx Machine Screws, Not Included
1450-RWPA-690CYLFCPTORX	Statuary, Regular Arm With Parallel Arm Shoe, No Handing, Cast Aluminum Cylinder Assembly, Not Included, Torx Machine Screws, Not Included
1450-HEDA-690RHCYLSLIMPCSRITBTRX	Hold Open Extra Duty Arm, Statuary, Right Handed, Cast Aluminum Cylinder Assembly, Slim Line Plastic Cover, Special Rust Inhibitor, Through Bolt and Torx Machine Screws, Not Included
1450-SCUSH-690CYLSLIMPCTBTRX	Spring Cush -n- Stop Arm, Statuary, No Handing, Cast Aluminum Cylinder Assembly, Slim Line Plastic Cover, Not Included, Through Bolt and Torx Machine Screws, Not Included
1450-LONG-695CYLSLIMPCTBTRX	Oxidized Satin Bronze, Long Arm 62A, No Handing, Cast Aluminum Cylinder Assembly, Slim Line Plastic Cover, Not Included, Through Bolt and Torx Machine Screws, Not Included
1450-EDA-695CYLDELSLIMPCSRIUNIV	Extra Duty Arm, Oxidized Satin Bronze, No Handing, Delay Action Cylinder, Slim Line Plastic Cover, Special Rust Inhibitor, Universal Screws, Not Included
1450-HEDA-685LHCYLMCTBTRX	Hold Open Extra Duty Arm, Oxidized Satin Bronze, Left Handed, Cast Aluminum Cylinder Assembly, Metal Cover, Not Included, Through Bolt and Torx Machine Screws, Not Included
1450-HCUSH-695CYLDELFCPSRITORX	Hold Open Cush -n- Stop Arm, Oxidized Satin Bronze, No Handing, Delay Action Cylinder, Special Rust Inhibitor, Torx Machine Screws, Not Included
1450-HCUSH-622CYLDELFCPSRITORX	Hold Open Cush -n- Stop Arm, Matte Black, No Handing, Delay Action Cylinder, Special Rust Inhibitor, Torx Machine Screws, Not Included

View All Model Numbers and Options
