Reduced price! LCN 2010 Series Closers

LCN

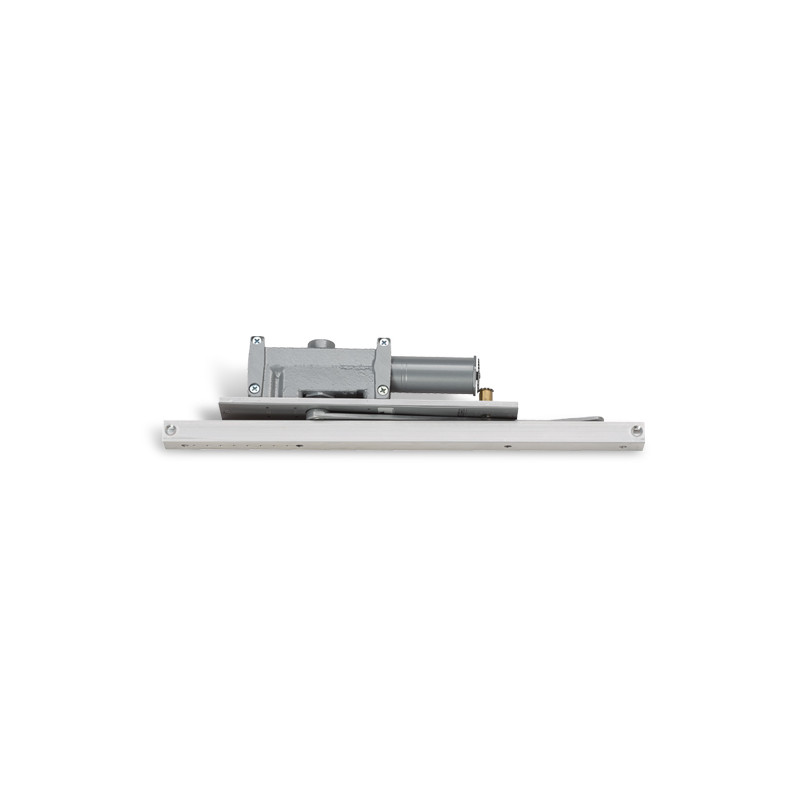

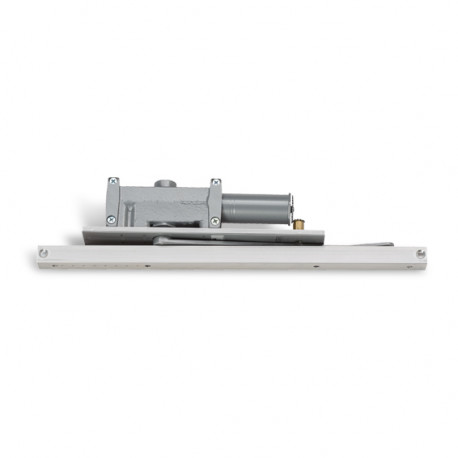

LCN 2010 Series Closer

$962.48

?

Details: LCN 2010 Series Closer

The 2010 and 5010 Series are heavy-duty closers that are concealed and designed for institutional, high-traffic and other installations exposed to weather or abuse. The 2010 Series is concealed in the door frame with the track concealed in the door. The 5010 Series is concealed in the frame with the double-lever arm exposed. Both the 2010 and 5010 Series meet ANSI/BHMA A156.4 Grade 1 standards and the American Disabilities Act (ADA) reduced opening force requirements. The single-lever arm and roller assembly for the 2010 Series and the double-lever arm for the 5010 Series provide smooth, quiet door control and the choice of finishes, while the track, cylinder and arm functions meet virtually all architectural requirements.

The 2010 and 5010 Series are ideal for interior and exterior aluminum, hollow metal and wood doors and frames. Both series feature separate regulation of general closing speed and latching speed. Both the 2010 and 5010 Series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year warranty. Materials for both series include a forged steel main arm, high strength cast iron cylinder, one-piece forged steel piston, all-weather fluid, tamper-resistant regulating screws and a full-complement, low-friction bearing.

Body Construction

  • Cast iron cylinder
  • Full-complement bearing
  • 1-1/2" diameter piston

Quality and durability

  • All-weather fluid
  • Forged steel arm
  • 15-year warranty

Installation

  • Handed design for right- and left-swinging doors
  • Wood and machine screw pack
  • Adjustable spring sizes 1-6

Specifications

  • Sized cylinders for interior doors to 5' and exterior doors to 4'
  • Meets ADA requirements
  • UL and cUL listed for self-closing doors without hold-open
  • Tested and certified under ANSI/BHMA A156.4 Grade 1
  • For hollow metal or wood doors and frames

The 2010 Series mounts concealed in the door frame with the track and arm mounted on the surface. The 5010 Series mounts concealed in the door frame with an exposed arm. Visit the 2010/5010 Series catalog pages for complete mounting details, arm options and accessories.

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU Attributes
2011-HBUMP-696LHHWMS Brass, Hold Open Track with Bumper, Size 1, Left Handed, Not Included, Hold Open Wood and Machine Screws
2013-HBUMP-696RHSRIHTORX Brass, Hold Open Track with Bumper, Size 3, Right Handed, Included (Special Rust Inhibitor), Hold Open Torx Screws
2014-STDTRK-690RHSRIWMS Statuary, Standard Track, Size 4, Right Handed, Included (Special Rust Inhibitor), Wood and Machine Screws
2014-HBUMP-690LHSRITORX Statuary, Hold Open Track with Bumper, Size 4, Left Handed, Included (Special Rust Inhibitor), Torx Machine Screws
2014-H-US26RHTORX Bright Chrome, Hold Open Track, Size 4, Right Handed, Not Included, Torx Machine Screws
2014-HBUMP-US26DRHHTORX Satin Chrome, Hold Open Track with Bumper, Size 4, Right Handed, Not Included, Hold Open Torx Screws
2015-STDTRK-622LHTORX Matte Black, Standard Track, Size 5, Left Handed, Not Included, Torx Machine Screws
2015-H-689RHHTORX Aluminum, Hold Open Track, Size 5, Right Handed, Not Included, Hold Open Torx Screws
2015-H-691RHTORX Light Bronze, Hold Open Track, Size 5, Right Handed, Not Included, Torx Machine Screws
2015-STDTRK-693RHHTORX Flat Black, Standard Track, Size 5, Right Handed, Not Included, Hold Open Torx Screws
2015-BUMP-693LHSRIWMS Flat Black, Track with Bumper, Size 5, Left Handed, Included (Special Rust Inhibitor), Wood and Machine Screws
2015-BUMP-696LHHTORX Brass, Track with Bumper, Size 5, Left Handed, Not Included, Hold Open Torx Screws
2015-H-690RHSRITORX Statuary, Hold Open Track, Size 5, Right Handed, Included (Special Rust Inhibitor), Torx Machine Screws
2015-HBUMP-690RHSRIHTORX Statuary, Hold Open Track with Bumper, Size 5, Right Handed, Included (Special Rust Inhibitor), Hold Open Torx Screws
2015-H-695RHTORX Oxidized Satin Bronze, Hold Open Track, Size 5, Right Handed, Not Included, Torx Machine Screws

View All Model Numbers and Options
