LCN 2610 Series Auto Equalizer Pneumatic Door Closer

$3,299.78

?
?

Details: LCN 2610 Series Auto Equalizer Pneumatic Door Closer

Description

The 2610 Auto Equalizer™ is LCN's pneumatically powered Multi-Door solution. This low energy power operator provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.

Features

  • Multi-Door Solution
  • Utilizes a 10,000,000 Cycle Heavy Duty Door Closer
  • Quiet, Efficient & Reliable
  • Requires Control Boxes with integral compressor or control box using auxiliary air supply.
  • No Guard Rails/Safety Mats Required

The 2610 Series is UL228 and meets the provisions of ANSI Standard A117.1, A156.19 and the Americans with Disabilities Act.

Specifications

  • Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
  • Standard 2610 series closer shipped with single lever (standard) arm, mounting/finish plate, standard track and wood and machine screw pack.
  • Meets ADA requirements (power mode).
  • Sized cylinders for interior doors to 4'0" and exterior doors to 3'0".
  • Handed for right or left swinging doors.
  • Requires additional system components.
  • Standard or optional custom powder coated finish.
  • Optional plated finish on arm, fasteners, and mounting/finish plate.

Mounting

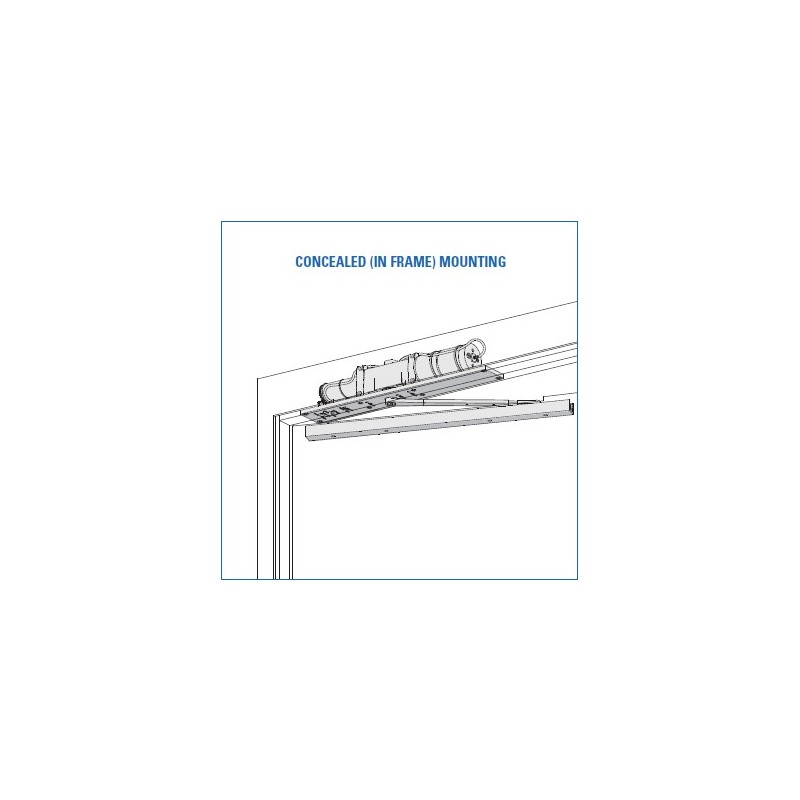

  • Concealed

See catalog for additional details

Arms

  • Standard (Single) 90°

Standard Arm, 2610-3077T Handed arm. Track roller not included with arm.

Standard Finishes:

  • Powder coat
  • Plated

*Custom finishes available upon request

Cylinders

Cylinder
Available
Handicap
x
Accessible
x

Cylinder Only, 2610-3971 Standard, handed, cast iron cylinder.

Cylinder Assembly, 2610-3071 Standard, handed, cast iron cylinder and mounting plate.

Covers

  • Metal

Track

Standard Track, 2610-3038 Standard non-handed track. Will not accept hold open clip or bumper assembly.

Installation Accessories

Track Roller, 2610-3034 Quiet, low friction roller assembly. Shoulder dimension "X" = 1⁄16" (1 mm).

Helpful Links

LCN has been developing door closer solutions for 88 years and they are trusted to work in even the most chaotic of times. The LCN 2610 Series Auto Equalizer Pneumatic Door Closer high standards of performance give their customers a much needed peace of mind in knowing that their facilities are protected. With 35 different series of closers and door hardware to choose from with the guarantee of up to 15 to 20 years of product life, LCN has unmatched expertise to meet all security and safety challenges.

How to install the LCN Electric AutoEqualizer Automatic Operator

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU Attributes
2613-695RH Oxidized Satin Bronze, Not Included, Size 3, Right Handed
2613-DPS 693LH Flat Black, DPS, Size 3, Left Handed
2614-DPS US10RH Satin Bronze, DPS, Size 4, Right Handed
2614-DPS US10LH Satin Bronze, DPS, Size 4, Left Handed
2613-DPS 696RH Brass, DPS, Size 3, Right Handed
2614-DPS US15RH Satin Nickel, DPS, Size 4, Right Handed
