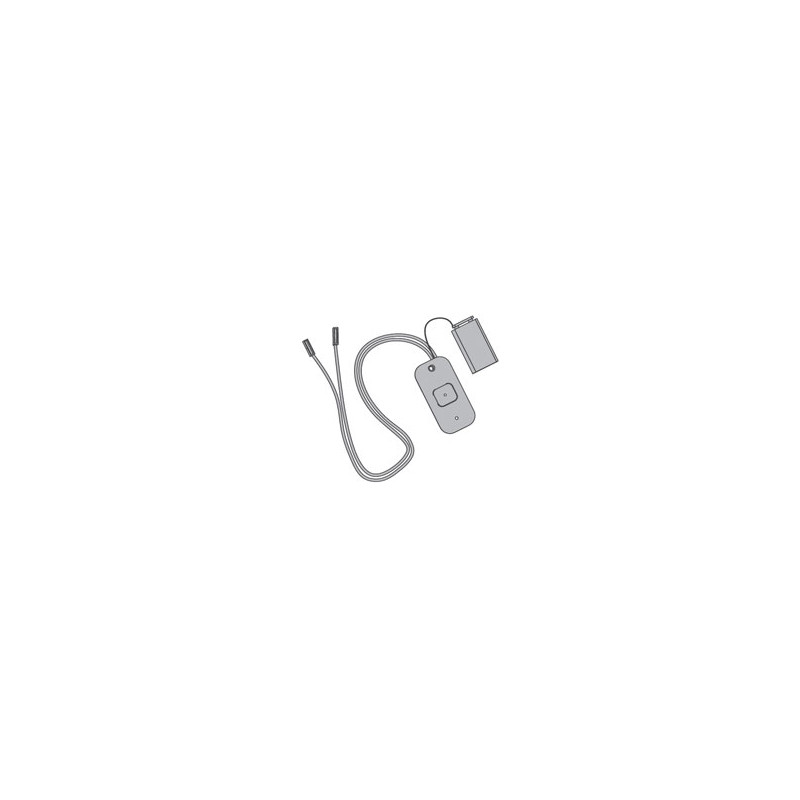

LCN 8310 Series Transmitter Kit For 8310 Series Actuators

8310-

$303.16

Details: LCN 8310 Series Transmitter Kit For 8310 Series Actuators

The 433MHz Series Transmitters and Receiver are ideal for the opening of automatic doors. The Transmitter is available in hand-held or pushplate style and transmits a unique rolling code each time the switch is closed to provide a secure door-opening signal. The transmitter is powered by either a 3-volt or a standard 9-volt battery and a red indicator light when the transmitter is activated.

Features

FREQUENCY
433 MHz
EMMITTED RADIO POWER
-28.7 dBm
POWER CONSUMPTION
250mA
OPERATING TEMPERATURE
14ºF TO 131ºF (10ºC TO 55ºC)
MAX No. OF PROGRAMMED UNITS FOR EACH RECEIVER
100 TRANSMITTERS
LEDs
RED - Receiver Learn BLUE - Relay Activation
DIMENSIONS
2 3/4" × 1 3/8" × 9/16" (70mm × 35mm × 14mm) 2 3/4" × 2 1/8" × 1" (70mm × 55mm × 25mm)
CERTIFICATIONS
FCC, IC

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU Attributes
8310-8310-844 Wall Mount, 1, Not Included
8310-8310-844 8310-865 Wall Mount, 1, Included
8310-8310-844J Jamb Mount, 1, Not Included
8310-8310-844J 8310-865 Jamb Mount, 1, Included
8310-8310-861 Handheld, 1, Not Included
8310-8310-861 8310-865 Handheld, 1, Included
8310-8310-862 Handheld, 2, Not Included
8310-8310-862 8310-865 Handheld, 2, Included
8310-8310-863 Handheld, 3, Not Included
8310-8310-863 8310-865 Handheld, 3, Included
8310-8310-864 Handheld, 4, Not Included
8310-8310-864 8310-865 Handheld, 4, Included
