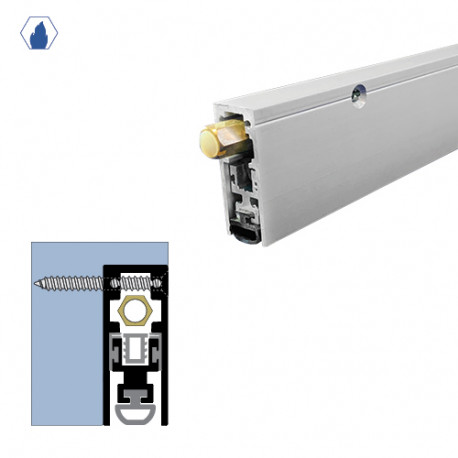

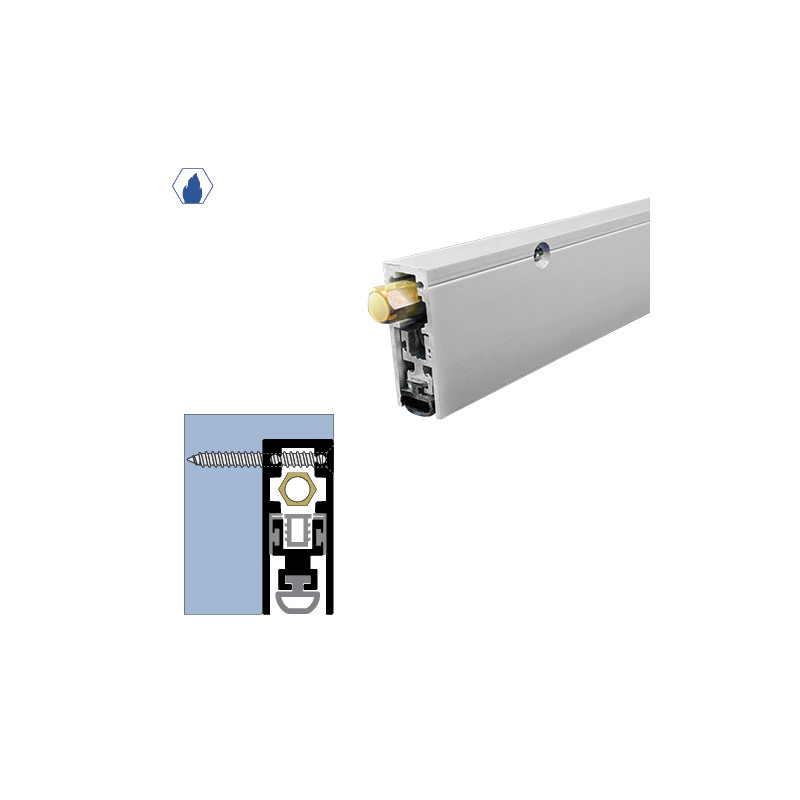

Details: Legacy Manufacturing 7253 Semi-Mortised Automatic Door Bottom

Door Sweeps are used to seal the gap at the bottom of your door to prevent infiltration of sound, light, drafts, insects, moisture, smoke or fire.

Competitor Equivalent

Legacy	NGP	Pemko	Zero
7253	222N	4131ASL	352AA
7056	423N	434ARL	360AA

Finishes

CA

Clear Anodized Aluminum

DB

Dark Bronze Anodized Aluminum

WP

White Powder Coat

MB

Matte Black Powder Coat

Options

SL

Sliding Doors

PV

Pivot Doors

FL

Fire Label

EA

Electrical Actuator

TD

Top Door Installation

EDP

1-1/2" Drop

LL

Lead Lined

PULL

Pull Option

Features

• Can be made any size from 12" to 144"
• Designed to drop like a scissor (hinge side first then self-leveling to compensate for uneven floors)
• 3.5 million cycles tested.

Materials / Specifications

• Solid Rubber Extrusion is Black
• Clear Anodized Aluminum
• Unit comes with 1 pair of End Caps — Part #4153EC-CA or #4153EC-MB
• Maximum 1? drop / adjustable
• Replacement SRE — Part #4053SRE or optional SRE — Part #4441SRE
• Screws are standard (#8 × 1-1/2" SMS self-drilling screws) supplied
• Brass Hex Nut

THIS PRODUCT IS FIRE-RATED
