Details: Locinox UGC/IGC Aluminium Gate Hold-Back Catch

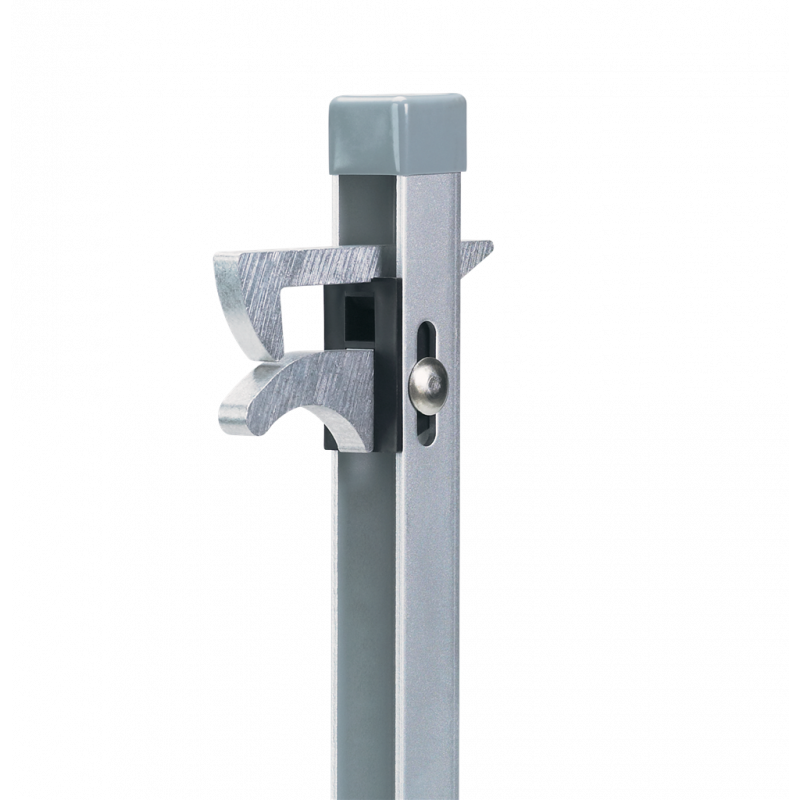

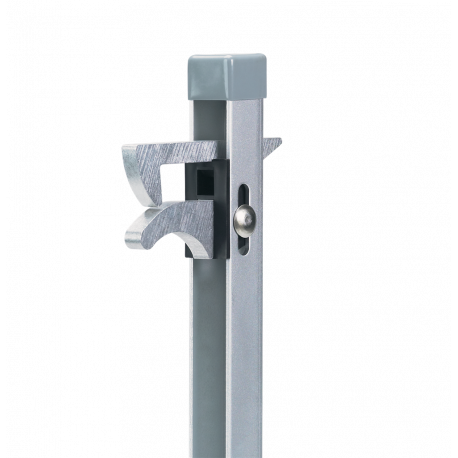

UNDER-GATE CATCHER

Aluminum gate hold back. The adjustable catch reaches under the gate catching the bottom rail and the hook can easily be reversed. The rubber stop and polyamide catch hook avoid damaging the gate frame. Very fast and strong installation in concrete. For gate profiles from 1-1/2" to 2-1/2". Simple height adjustment of 1-1/2".

IN-GATE CATCHER

Aluminum gate hold back. The adjustable catch reaches through the gate over the bottom rail and the hook can easily be reversed. The rubber stop and polyamide catch hook avoid damaging the gate frame. Very fast and strong installation in concrete. For gate profiles from 1-1/2" to 2-1/2". Simple height adjustment of 1-1/2".

Features

Aluminum powder coated chassis
Anchoring holes to put in concrete
Rubber stop and polyamide catch hook avoid damaging the gate frame
Rubber stop adjustable for profiles 1-1/2" to 2-1/2" gate frames
Catches upper side of the gate

Specifications

Height adjustability of the catch hook: 1-1/2"
Reversible catch hook: pre-mounted with hook down

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Locinox Warranty
