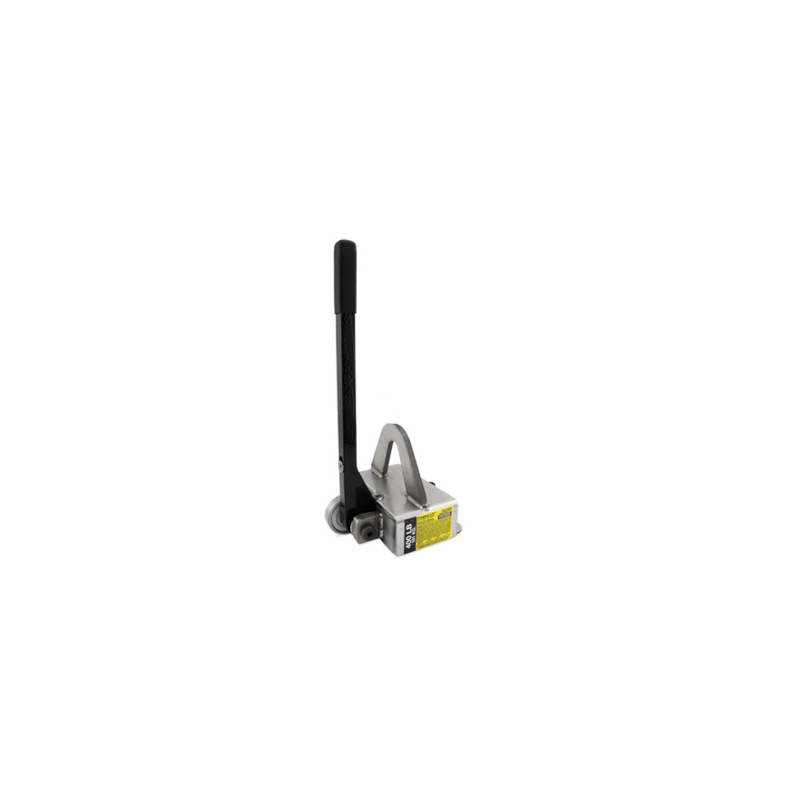

Details: Magnet Source M10 Industrial Strength Magnetic Lift

For thick, non-flexing steel items.

Eliminates the need for slings, clamping devices or chains. Ideal for handling solid ferrous metal blocks, steel plates, forgings, and die castings in machine shops and warehouses. The PLM series features a non-marring roller cam release mechanism, and requires less torque to release parts. No electricity required.

Industrial Strength Magnetic Lifts

Part No.	Pounds Pull	Length	Width	Height	Weight(lbs.)
M1000	1000	12.75	5.125	3.625	33
M1037	1500	13.625	6.312	5.5	26
PLM1382	400	9.875	3.5	3.1875	12
PLM1383	1000	12.625	5	3.1875	28
PLM1384	1500	14.4375	7	3.1875	42

Dimensions in Inches
