Magnet Source NADR Rubber Coated Neodymium Threaded Assembly
NADR

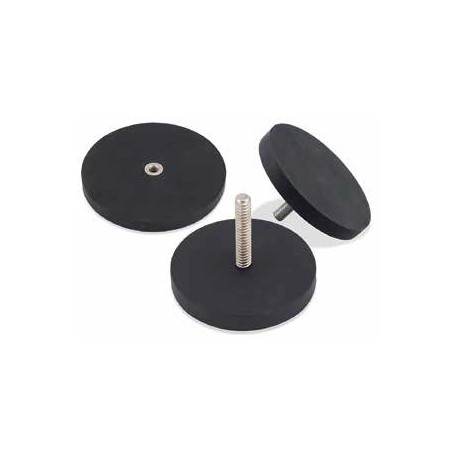

Neodymium magnets affixed to a flat steel disc with black protective rubber coating to prevent surface scratches. Magnetic on one side only.
Part No. | Pounds Pull | Diameter | Thickness | Thread | Weight(lbs.) |
---|---|---|---|---|---|
NADR169FBX | 20 | 1.69 | .236 | 10-24 | .07 |
NADR257FBX | 32 | 2.57 | .312 | 1/4-20 | .26 |
NADR351FBX | 105 | 3.51 | .335 | 1/4-20 | .5 |
Part No. | Pounds Pull | Diameter | Thickness | Overall Height | Thread | Weight(Lbs.) |
---|---|---|---|---|---|---|
NADR169MBX | 20 | 1.69 | .236 | 1.23 | 10-24 | .07 |
NADR257MBX | 32 | 2.57 | .312 | 1.3 | 1/4-20 | .26 |
NADR351MBX | 105 | 3.51 | .335 | 1.32 | 1/4-20 | .5 |
Model/SKU | Attributes |
---|---|
NADR351MBX | Threaded Assembly, 3.51" Dia. with 1/4-20 male thread, 105 lbs. pull |
NADR169FBX | Threaded Assembly, 1.69" Dia. with 10-24 female thread, 20 lbs. pull |
NADR169MBX | Threaded Assembly, 1.69" Dia. with 10-24 male thread, 20 lbs. pull |
NADR257F | Threaded Assemblies with 1/4-20 female thread, 32 lbs. pull |
NADR257FBX | Threaded Assembly, 2.57" Dia. with 1/4-20 female thread, 32 lbs. pull |
NADR257M | Threaded Assemblies with 10-24 male thread, 20 lbs. pull |
NADR257MBX | Threaded Assembly, 2.57" Dia. with 1/4-20 male thread, 32 lbs. pull |
NADR351F | Threaded Assemblies with 1/4-20 female thread, 105 lbs. pull |
NADR351FBX | Threaded Assembly, 3.51" Dia. with 1/4-20 female thread, 105 lbs. pull |
