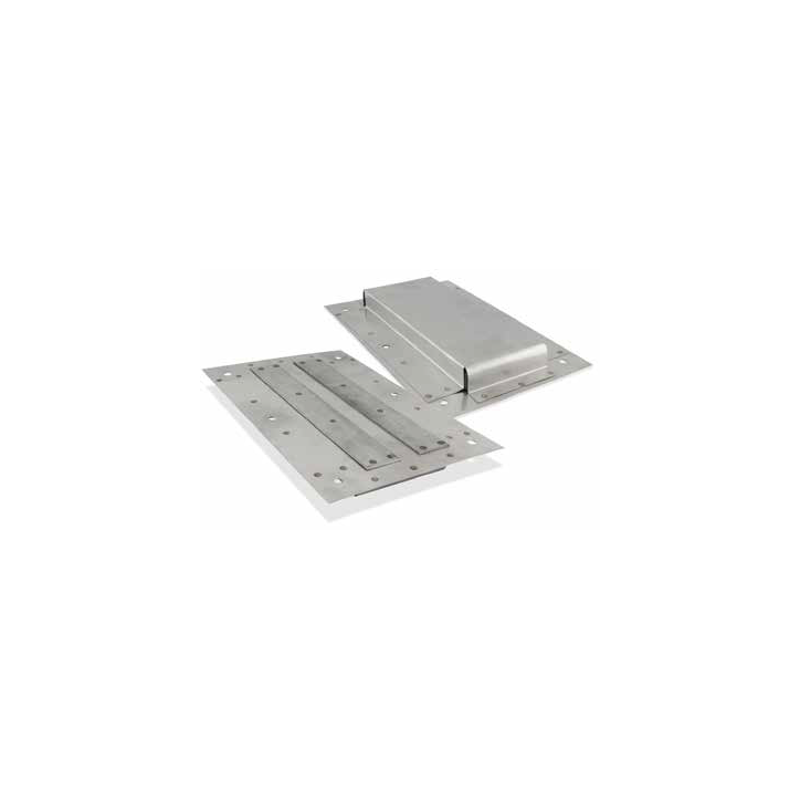

Details: Magnet Source TG Light Duty Plate Magnet

Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1 inch thick (standard) or 1.5 inch thick (heavy duty) models. Also available with powerful rare earth magnets. Call us for more details.

Light Duty Plate Magnets

Part No.	A Width	B Standard Thickness (In.)	Standard Weight (lbs.)	B Heavy Duty Thickness (In.)	Heavy Duty Weight (lbs.)
TG8	8	1	5.6	1.5	7.5
TG12.5	12.5	1	8.4	1.5	11.25
TG16	16	1	11.2	1.5	15
TG25	25	1	16.8	1.5	22.5

Key: A = Overall width B = Thickness. Suspension distance measurements are the maximum recommended.

Dimensions in Inches
