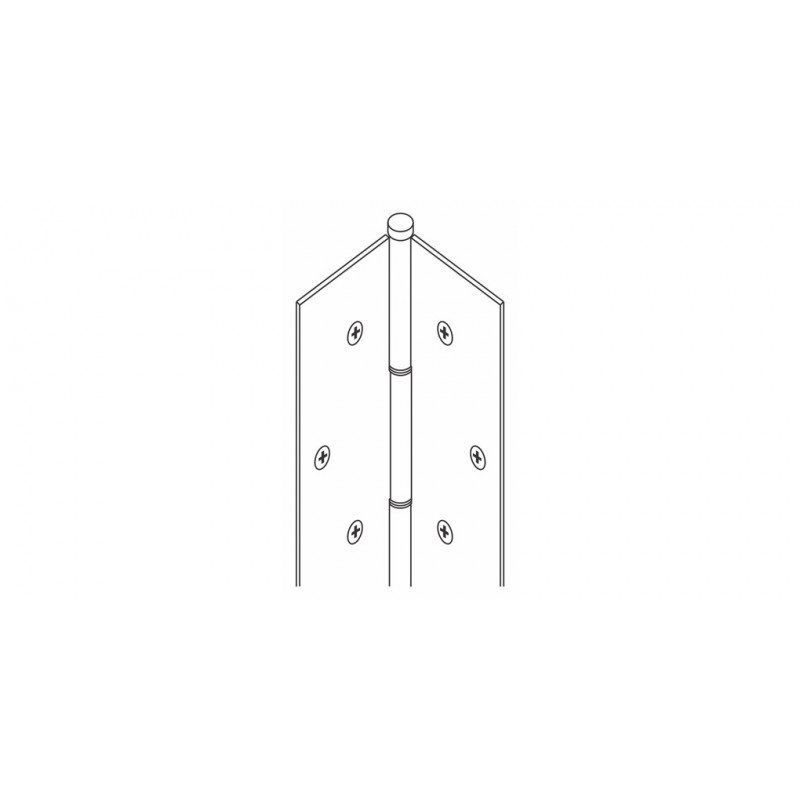

Details: Markar FM338 Edge Mount Pin & Barrel Hinge for 1-3/8" Thick Door, Finish-Satin Stainless Steel

• 3/16" diameter barrel type hinges, 304 stainless steel pin (rod) Medical bearings. Exterior barrel diameter .187"
• Heavy-duty 14 gauge, 304 stainless steel, finished in US32D (630)
• Fasteners concealed when door is closed. Fastener screwpack includes Custom 12-24 × 11/16 S.S Phillips Flat Head Undercut TEK Screws
• Handing not required on standard hinges. Specify handing when ordering with a modification.

Fire Rating

• Classified in accordance with UBC standard 7-2 for positive pressure
• 20 minutes — wood doors
• 90 minutes — hollow metal and composite core wood fire doors
• 3 hours — hollow metal doors mounted singly

Finishes

• Scratch-Resistant Powder Coated Paint

Fasteners

• Tamper-proof security screws

Other Features

• Custom lengths- specify in inches
• Custom hole pattern
• Dutch door hinges - suffix "DDP"
• Hospital tips - suffix "HT"
• Raised barrel - suffix "RB"
• Welded end pins
• Security studs

Electrical Modifications

• Adjustable Monitoring Switch - suffix "AMS"
• Electrical Transfer Access Prep - suffix "ETAP"
• ElectroLynx® EL4 (4 wire), EL8 (8 wire), EL12 (12 wire)
• PoE (9 wire)
