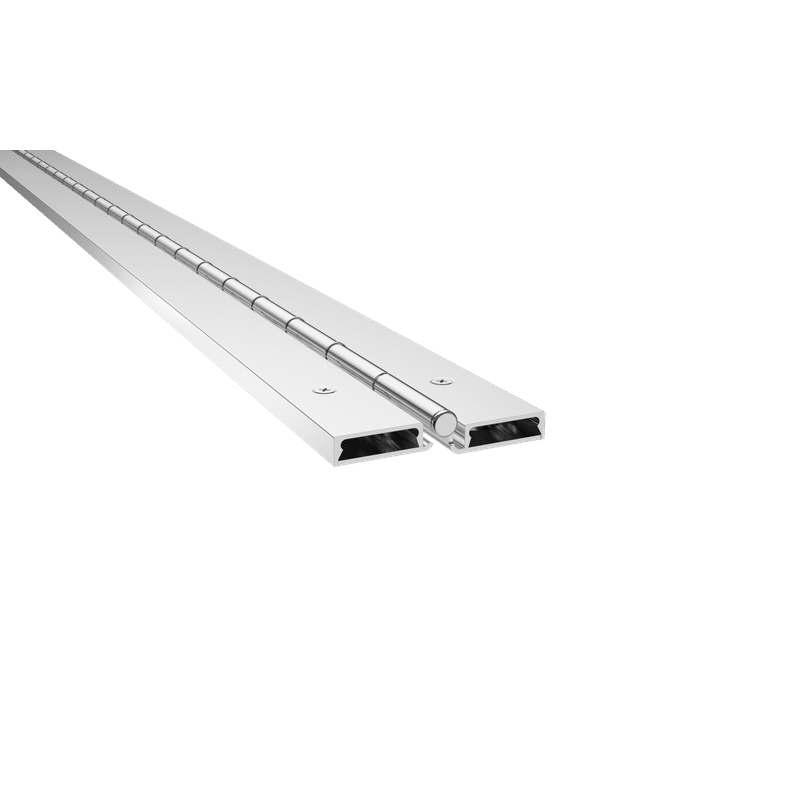

Markar FS301 Full Surface 1/8" Inset Pin & Barrel Hinge, Finish-Satin Stainless Steel

FS301-

$1,017.28

Details: Markar FS301 Full Surface 1/8" Inset Pin & Barrel Hinge, Finish-Satin Stainless Steel

  • 3/16" diameter stainless steel barrel type hinge pin (rod). Medical bearings. Stainless steel end pins
  • Fasteners concealed by covers universal screw pack includes 1/4-14 × 3/4 Security TORX TEK Screws, Zinc #8 × 3/4" PHF Tek, Zinc Cover Clip
  • Heavy-duty 14 gauge, 304 stainless steel, finished in US 32D (630). Covers are extruded aluminum with a brushed aluminum finish
  • ANSI/BHMA Standard A156.26 Grade 1

Fire Rating

  • Classified in accordance with UBC standard 7-2 for positive pressure
  • 20 minutes — wood doors
  • 90 minutes — hollow metal and composite core wood fire doors
  • 3 hours — hollow metal doors mounted singly

Finishes

  • US32 Bright Stainless Steel (629)
  • Scratch-Resistant Powder Coated Paint

Fasteners

  • 1 5/8" S.S. sleeve bolts
  • Tamper-proof security screws

Other Features

  • Custom lengths- specify in inches
  • Custom hole pattern
  • Dutch door hinges - suffix "DDP"
  • Hospital tips - suffix "HT"
  • Lead lined covers with 4 lbs. lead lining - suffix "LL"
  • Welded end pins

Available Model Numbers and Combinations

Model/SKU Attributes
FS301-SS-79 79-3/16"
FS301-SS-83 83-1/8"
FS301-SS-85 85-1/8"
FS301-SS-95 95"
FS301-SS-118 118-3/4"
