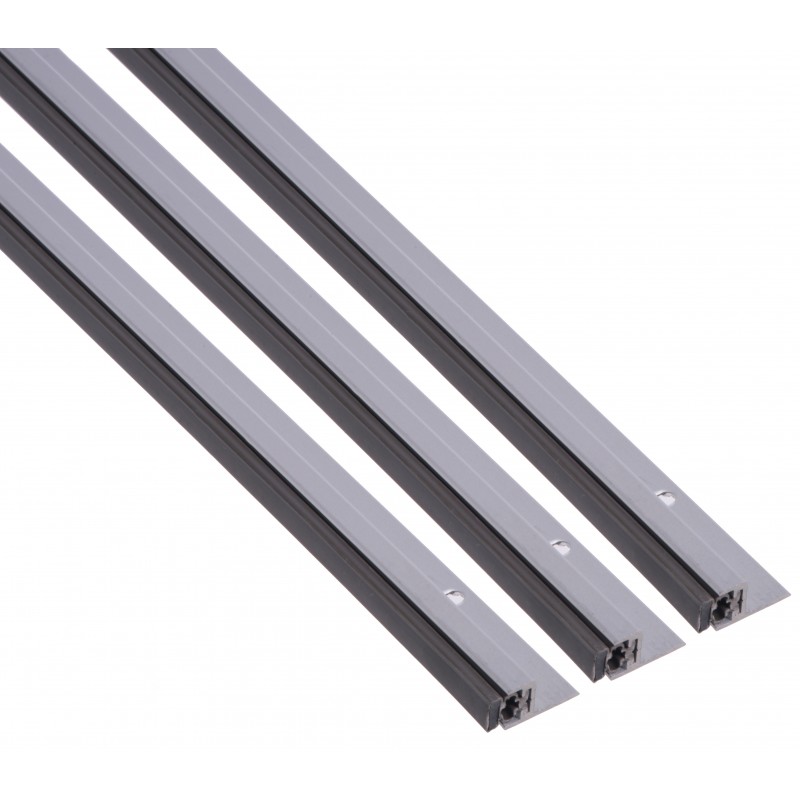

Details: NGP 157M Aluminum Magnetic Seal

Features

Aluminum alloy 6063, T5 temper
Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Economical
Flame resistant
Moisture resistant
Temperature range 0°F to 140°F
Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
#6 × 3/4" stainless steel SMS furnished
Screw holes slotted for adjustment
Maximum length 144"
Magnet encased in brown vinyl
Anodized aluminum

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

	Post-Consumer Recycled %	Pre-Consumer Recycled %
Aluminum Thresholds, Rain Drip Guards	18%	49%
Architectural Bronze Thresholds, Rain Drip Guards	70%	25%
Stainless Steel Thresholds, Rain Drip Guards	25%	3%
Rubber Ramps	0%	0%
Gasketing with Aluminum Retainers	13%	37%
Gasketing with Bronze Retainers	52%	19%
Gasketing with Stainless Steel Retainers	19%	2%
Self-Adhesive Gasketing	0%	0%
Finger Guard 2248	13%	37%
Finger Guard 2252	0%	0%
Metal Edge/Astragal sets (Steel)	25%	3%
Lite Kits & Louvers (Steel)	15%	5%
Aluminum Lite Kits & Louvers	18%	49%
Stainless Steel Lite Kits	25%	3%
Continuous Geared Aluminum Hinges	18%	49%
Stainless Steel Continuous Hinges	25%	3%
