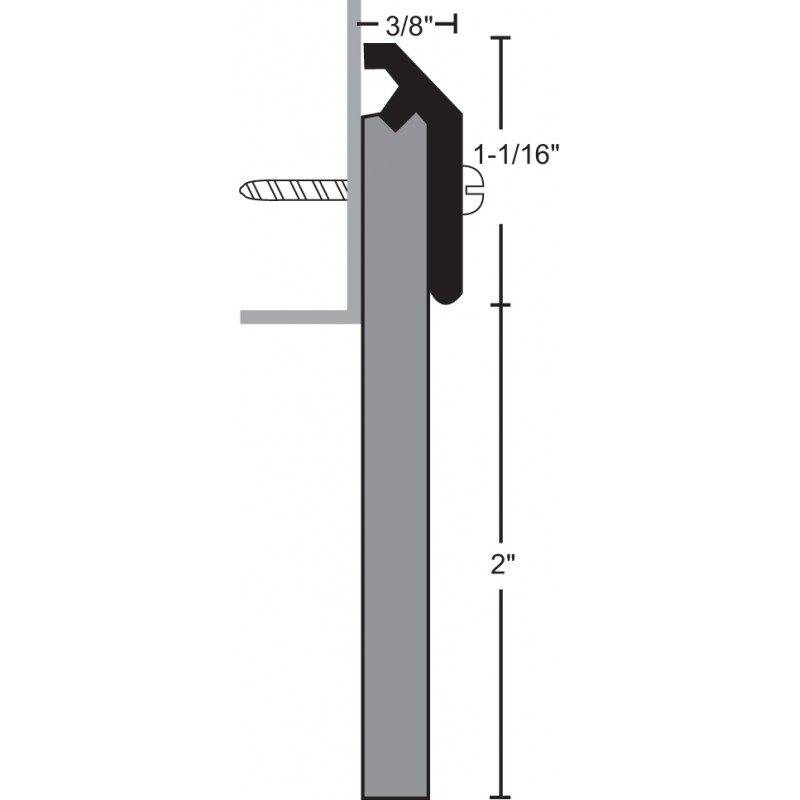

Details: NGP 203N Neoprene Door Sweep

Features

• Aluminum alloy 6063, T5 temper
• Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
• Very good abrasion resistance, tensile strength and memory
• Flame resistant
• Moisture resistant
• Temperature range -20°F to 200°F
• Good resistance to ozone, sunlight and aging
• BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• #6 × 1" stainless steel sheet metal screws furnished
• Screw holes slotted for adjustment
• Neoprene is black
• Anodized aluminum

Options

Standards

• CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
• SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
• ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

• Gasketing EPD
• ANSI/BHMA Certified Gasketing
• Gasketing Catalog
• Warranty
• NGP Sustainability Report
• Leed
• Buy American
• Installation
• Cut Sheet
