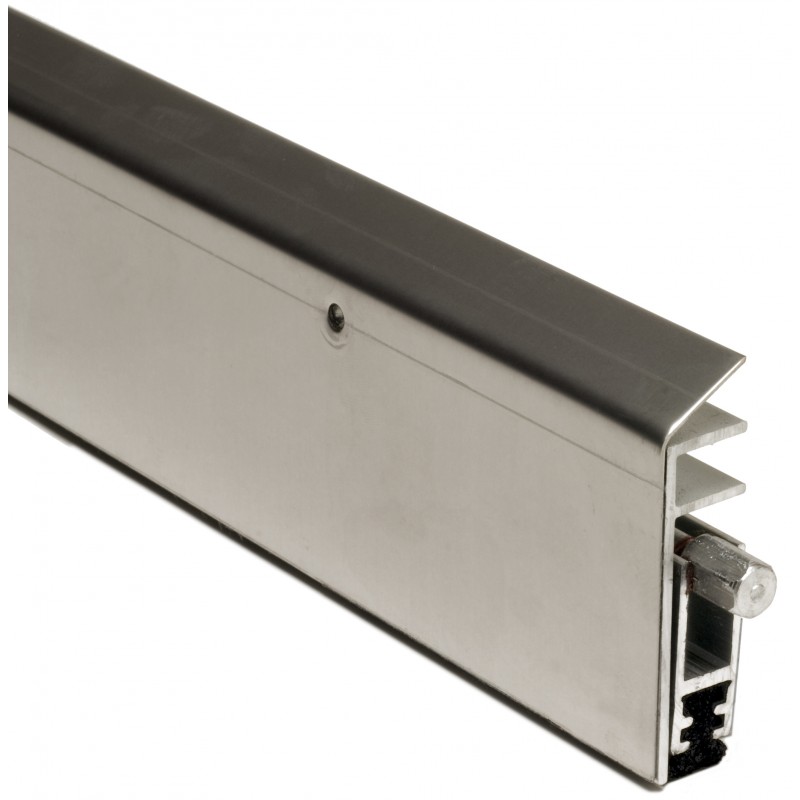

NGP 229NSS Stainless Steel Automatic Door Bottom

229NSS

$240.00

Details: NGP 229NSS Stainless Steel Automatic Door Bottom

Features

  • BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
  • BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
  • Stainless steel type 304
  • Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
  • Very good abrasion resistance, tensile strength and memory
  • Flame resistant
  • Moisture resistant
  • Temperature range -20°F to 200°F
  • Good resistance to ozone, sunlight and aging
  • Mounts on push side of door
  • Use with a threshold for maximum sealing capability
  • Nylon brush recommended for carpet applications where no threshold is provided
  • Specify exact net length required to avoid field sizing
  • 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
  • Minimum length 11", maximum length 60"
  • End caps furnished standard
  • Door bottom is handed. Right hand supplied unless specified. Field reversibled
  • 7/8" max drop
  • Neoprene is black
  • Brushed #4 finish (US32D, 630)

Options

  • Lead insert available for radiation shield - specify "lead-lined"

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKU Attributes
229NSS-36 36"
229NSS-48 48"
229NSS-60 60"
